ROHMDatasheet (PDF)

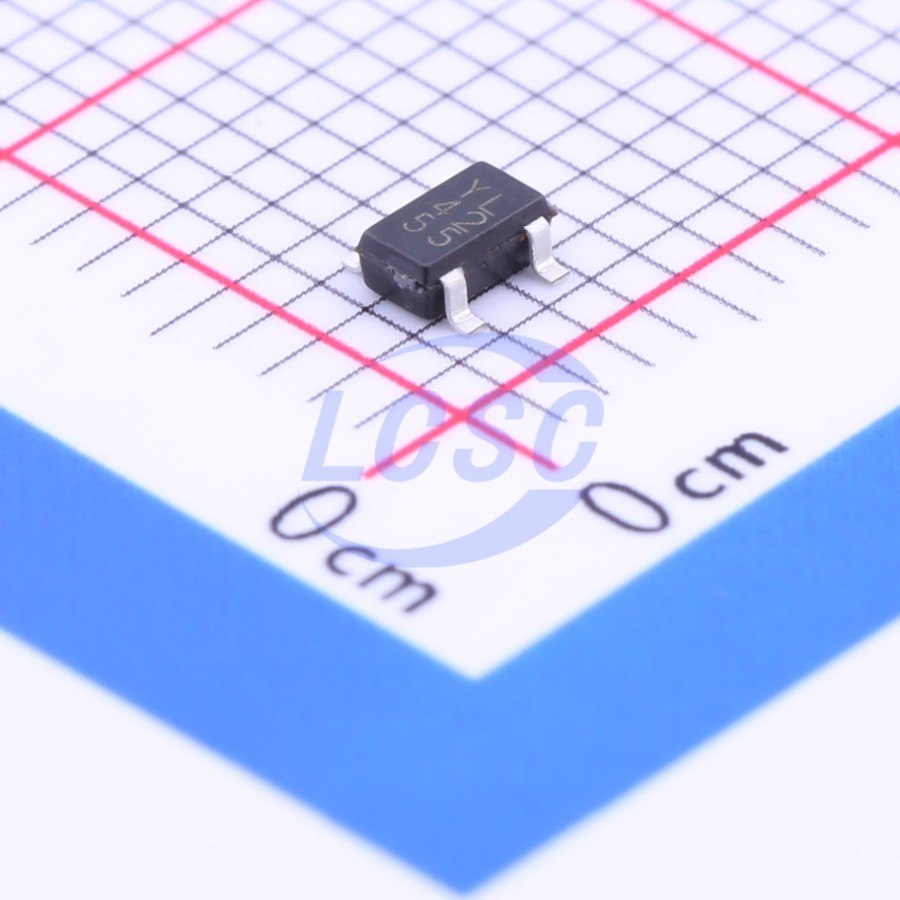

BU4219G-TR
Active Low 1 SSOP-5-1.6mm Supervisors RoHS
SSOP-5-1.6mmROHS3 CompliantActive
Low Voltage Free Delay Time Setting CMOS Voltage Detector IC Series
- Manufacturer
- ROHM
- Manufacturer part #
- BU4219G-TR
- Store part #
- C185018
- Package / case
- SSOP-5-1.6mm
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,000 in stock
#C185018
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.87 | ₹124.35 |
| 50+ | ₹19.75 | ₹987.50 |
| 150+ | ₹17.56 | ₹2,634.00 |
| 500+ | ₹14.82 | ₹7,410.00 |
| 3,000+ | ₹13.59 | ₹40,770.00 |
| 6,000+ | ₹12.86 | ₹77,160.00 |
5 × ₹24.87
₹124.35
excl. GST
₹146.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BU4219G-TR
₹124.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 200nA
- ChipType
- Voltage monitor
- Threshold Voltage
- 1.9V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
BU42xx and BU43xx series are CMOS Voltage Detector ICs with adjustable output delay. It is a high-accuracy, low current consumption Voltage Detector IC series with a built-in delay circuit. The lineup was established with two output types (Nch open drain and CMOS output) and detection voltages range from 0.9V to 4.8V in increments of 0.1V, so that the series may be selected according to application.
Applications
- Circuits using microcontrollers or logic circuits that require a reset.
Key features
- Delay Time Controlled by external Capacitor
- Two output types (Nch open drain and CMOS output)
- Ultra-low current consumption
- Wide operating temperature range
- Very small and low height package
- Package SSOP5 and SOP4 is similar to SOT-23-5 and SC-82 respectively (JEDEC)
