ROHMDatasheet (PDF)

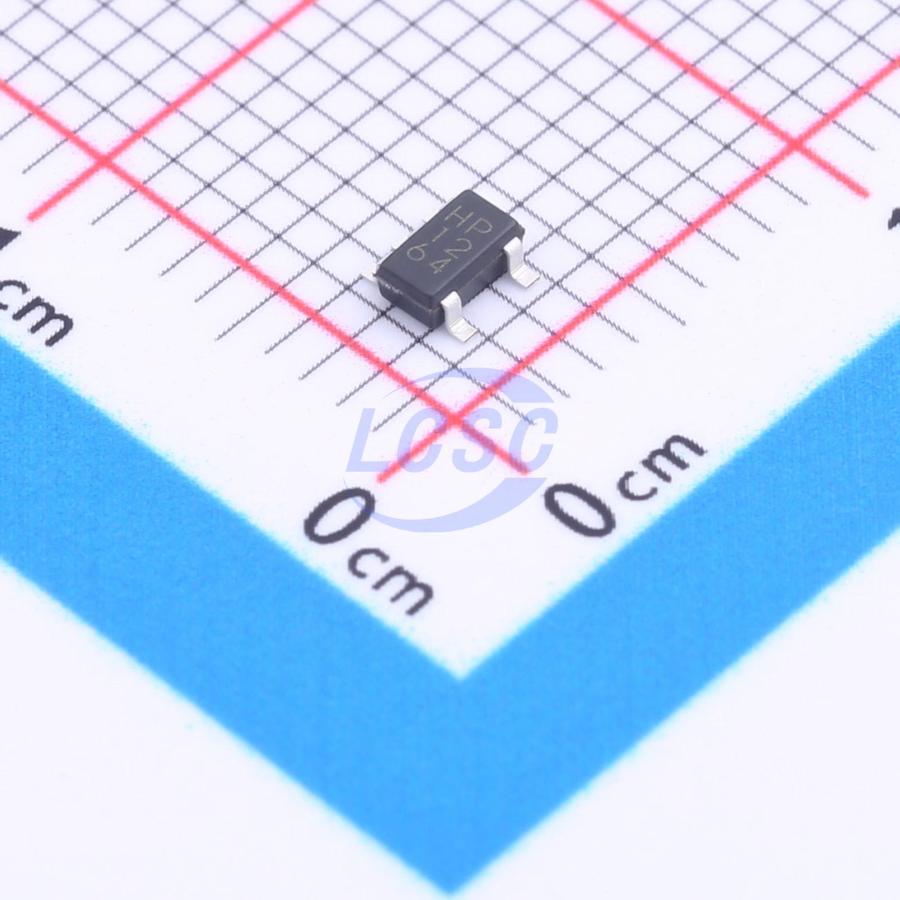

BU4822G-TR
Active Low 900mV~4.8V 1 SSOP-5-1.6mm Supervisors RoHS
SSOP-5-1.6mmROHS3 CompliantActive
Low Voltage Standard CMOS Voltage Detector IC Series
- Manufacturer
- ROHM
- Manufacturer part #
- BU4822G-TR
- Store part #
- C509844
- Package / case
- SSOP-5-1.6mm
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C509844
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.47 | ₹102.35 |
| 50+ | ₹15.86 | ₹793.00 |
| 150+ | ₹13.89 | ₹2,083.50 |
| 500+ | ₹11.43 | ₹5,715.00 |
| 3,000+ | ₹10.33 | ₹30,990.00 |
| 6,000+ | ₹9.68 | ₹58,080.00 |
5 × ₹20.47
₹102.35
excl. GST
₹120.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BU4822G-TR
₹102.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 550nA
- Voltage - Supply
- 900mV~4.8V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.2V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Standard CMOS reset IC series is a high-accuracy, low current consumption reset IC series. The lineup was established with two output types (Nch open drain and CMOS output) and detection voltage range from 0.9V to 4.8V in increments of 0.1V, so that the series may be selected according to the application at hand.
Applications
- All electronic devices that use micro controllers and logic circuits
Key features
- Ultra-low current consumption
- High accuracy detection, Ultra-low voltage detection
- Two output types (Nch open drain and CMOS output)
- Wide operating temperature range
- Very small and low height package
- Package SSOP5 and SOP4 is similar to SOT-23-5 and SC-82 respectively (JEDEC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX823LEUK+T#C79917MAXIM · SOT-23-5 | MAXIM | SOT-23-5 | 487 | ₹179.40 · 487 in stock | View |
| BD5222G-2MTR#C2066609ROHM · SSOP-5-1.6mm | ROHM | SSOP-5-1.6mm | On request | ₹21.53 · 0 in stock | View | |
| SGM892B-2.2XN5G/TR#C5152471SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | On request | ₹81.79 · 0 in stock | View | |
| XC6124F622MR-G#C2463015TOREX · SOT-25-5 | TOREX | SOT-25-5 | On request | Price on request | Quote | |
| XC6124E522MR-G#C2463041TOREX · SOT-25-5 | TOREX | SOT-25-5 | On request | Price on request | Quote | |
