ROHMDatasheet (PDF)

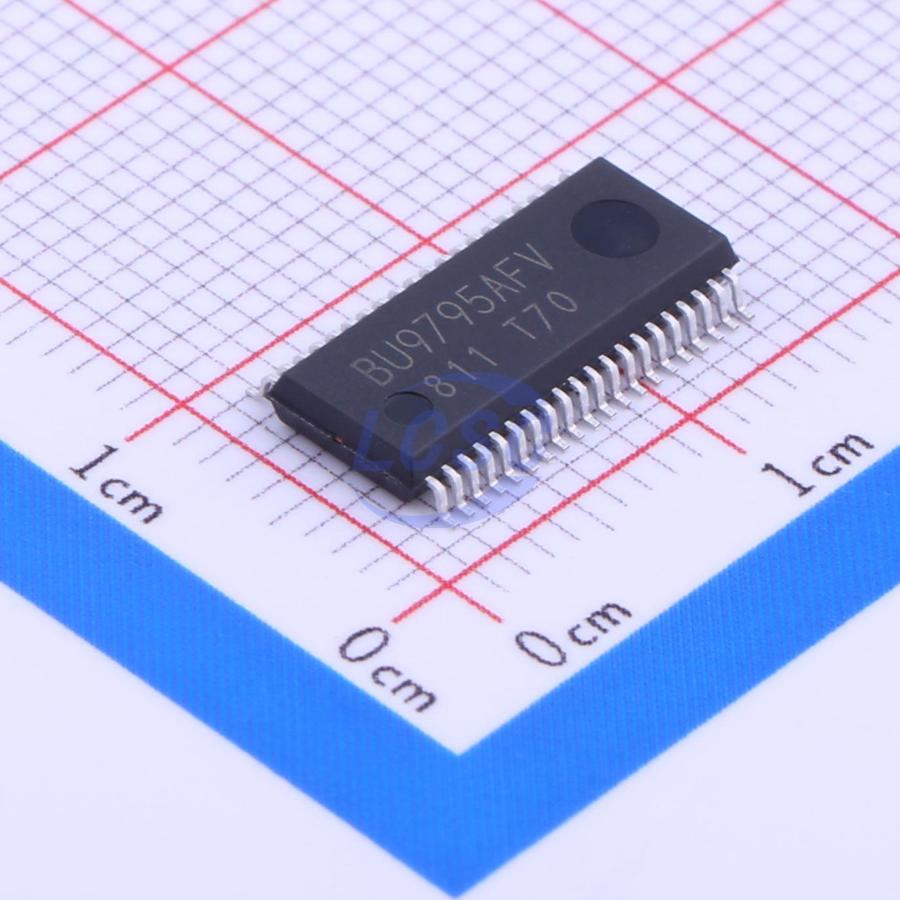

BU9795AFV-E2
2.5V~5.5V 3-Wire Serial Interface 20uA SSOP-40-208mil Display Drivers RoHS
SSOP-40-208milROHS3 CompliantActive
LCD Segment Drivers
- Manufacturer
- ROHM
- Manufacturer part #
- BU9795AFV-E2
- Store part #
- C28965
- Package / case
- SSOP-40-208mil
- Category
- Display Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,774 in stock
#C28965
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.26 | ₹132.26 |
| 10+ | ₹108.84 | ₹1,088.40 |
| 30+ | ₹96.05 | ₹2,881.50 |
| 100+ | ₹81.31 | ₹8,131.00 |
| 500+ | ₹75.03 | ₹37,515.00 |
| 1,000+ | ₹71.98 | ₹71,980.00 |
1 × ₹132.26
₹132.26
excl. GST
₹156.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BU9795AFV-E2
₹132.26 for 1 + GST
Specifications
- Voltage - Supply
- 2.5V~5.5V
- Frequency
- 80Hz
- Operating Temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 700mW
- Display Configurations(bit)
- 27x4 bit
- Interface
- 3-Wire Serial Interface
- Features
- Integrated boost circuit;Built-in oscillator
- Quiescent Current (Iq)
- 5uA
- Current - Supply
- 20uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.8 g
Overview
ROHM standard function segment driver series achieve “Ultra-Low power consumption”. Also these drivers need not external components. And this driver series is very simple that only has segment driver function. So, these driver series are very suitable to add in LCD display function for various applications.
Applications
- Telephone
- FAX
- Portable equipment (POS, ECR, PDA etc.)
- DSC
- Digital video camera
- Home electrical appliance
- Meter equipment
- Healthcare equipment etc.
Key features
- BU9795AKV/FV/GUW, BU9794AKV:
- 3wire serial interface
- Integrated RAM for display data (DDRAM)
- Power supply circuit for LCD driving 1/2, 1/3Bias selectable 1/4Duty Integrated Buffer AMP
- Integrated Oscillation circuit
- Integrated Power-on Reset circuit
- No external components
- Support blink function
- Support standby mode
- Low voltage / Ultra low power consumption design
- Support unity voltage supply (BU9795AKV/FV/GUW)
- Support Independent power supply circuit for LCD driving (BU9794AKV)
- BU97950FUV/KS2:
- 2wire serial interface
- Integrated RAM for display data (DDRAM)
- Integrated Power supply circuit for LCD driving 1/4 Bias 1/8 Duty Integrated Buffer AMP
- Integrated Oscillation circuit
- Integrated Power-on Reset circuit
- No external components
- Support standby mode
- Low voltage / Ultra low power consumption design
- Integrated Electrical volume register (EVR) function
- Support Register Read function
- Support Independent power supply circuit for LCD driving
