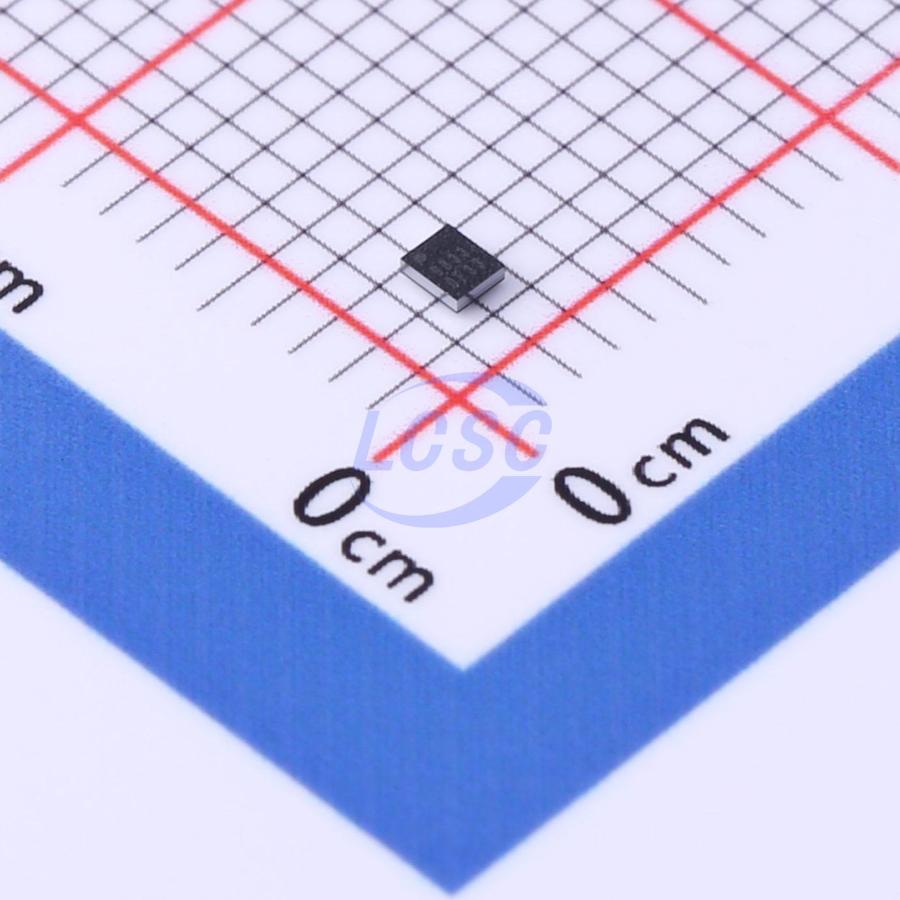

BU9833GUL-WE2

2Kbit 400kHz I2C UFBGA-6 Memory RoHS

UFBGA-6ROHS CompliantActive

Serial EEPROM Series Standard EEPROM

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,001 in stock

#C509849

Stock & price checked 6 days ago

Quantity (min 1)

1 × ₹70.90

₹70.90

excl. GST

₹83.66 incl. 18% GST

BU9833GUL-WE2

₹70.90 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
Memory Size: 2Kbit
Voltage - Supply: 1.7V~5.5V;1.2mA
Clock Frequency: 400kHz
Data Retention - TDR (Year): 40 Years
Write Cycle Time(tWC): 5ms
Standby Supply Current: 0.1uA
Write Cycle Endurance: 1,000,000 cycles
Interface: I2C

BU9833GUL-W series is a serial EEPROM of I²C BUS interface method. 1.7V single power source action and actions available at 400kHz.

Completely conforming to the world standard I²C BUS. All controls available by 2 ports of serial clock (SCL) and serial data (SDA)
Other devices than EEPROM can be connected to the same port, saving microcontroller port.
Actions available at 400kHz clock (1.7V to 5.5V)
1.7 to 5.5V single power source action most suitable for battery use.
Page write mode useful for initial value write at factory shipment.
Auto erase and auto end function at data rewrite.
Low current consumption At write action (5V): 1.2mA (Typ.) At read action (5V): 0.2mA (Typ.) At standby action (5V): 0.1μA (Typ.)
Write mistake prevention function ⪰ Write (write protect) function added. Write mistake prevention function at low voltage.
Data rewrite up to 1,000,000 times.
Data kept for 40 years.
Noise filter built in SCL / SDA terminal
Shipment data all address FFh.
