TECH PUBLICDatasheet (PDF)

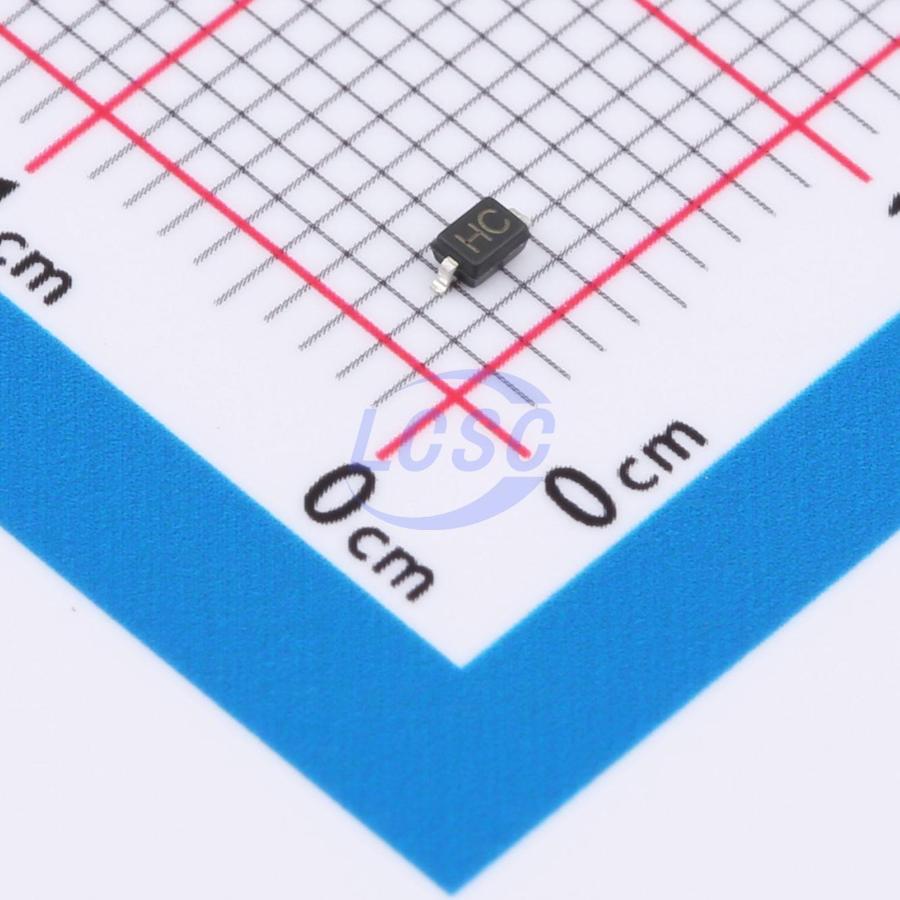

BV24C-L
52VC Clamp TVS DIODE SOD-323
SOD-323RoHSActive
TVS DIODE 24VWM 52VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- BV24C-L
- Store part #
- C19829451
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,670 in stock
#C19829451
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.57 | ₹75.70 |
| 100+ | ₹5.94 | ₹594.00 |
| 300+ | ₹5.13 | ₹1,539.00 |
| 3,000+ | ₹4.52 | ₹13,560.00 |
| 6,000+ | ₹4.04 | ₹24,240.00 |
| 9,000+ | ₹3.78 | ₹34,020.00 |
10 × ₹7.57
₹75.70
excl. GST
₹89.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BV24C-L
₹75.70 for 10 + GST
Specifications
- Clamping Voltage
- 52V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 27V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
Key features
- 200W peak pulse power (8/20μs)
- Low operating: 24V
- Ultra low capacitance: 0.8 pF typical
- Ultra low leakage: nA level
- Low clamping voltage
- Protects one powerline or data line
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- RoHS Compliant
