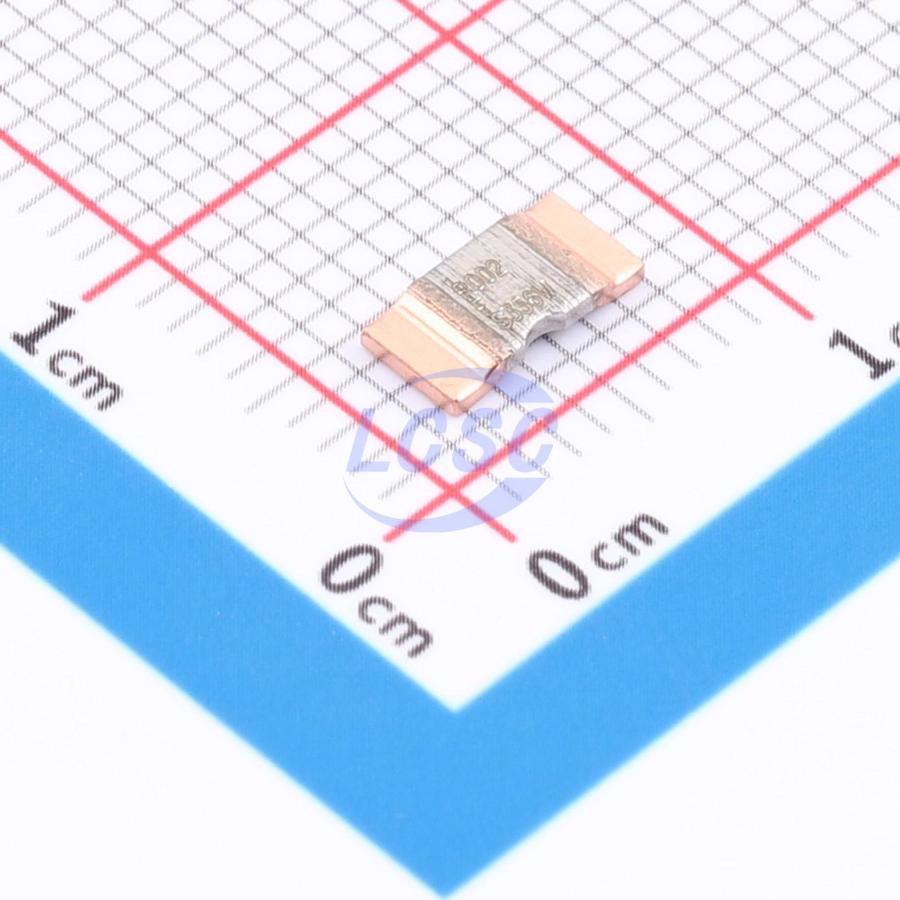

IsabellenhuetteDatasheet (PDF)
BVT-I-R002-1.0
6W 2mΩ ±50ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 2mΩ ±1% 6W 2512
- Manufacturer
- Isabellenhuette
- Manufacturer part #
- BVT-I-R002-1.0
- Store part #
- C2874129
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,689 in stock
#C2874129
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.24 | ₹111.24 |
| 10+ | ₹90.85 | ₹908.50 |
| 30+ | ₹80.66 | ₹2,419.80 |
| 100+ | ₹70.48 | ₹7,048.00 |
| 500+ | ₹64.40 | ₹32,200.00 |
| 1,000+ | ₹61.36 | ₹61,360.00 |
1 × ₹111.24
₹111.24
excl. GST
₹131.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BVT-I-R002-1.0
₹111.24 for 1 + GST
Specifications
- Power(Watts)
- 6W
- Resistance
- 2mΩ
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -65℃~+170℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.153 g
Overview
Applications
- Current sensors for power hybrid applications, automotive high-current applications, inverters, and power modules
Key features
- Rated power up to 6 W
- Continuous current load up to 100 A (0.3 mΩ)
- Heavy-duty copper terminations
- Excellent long-term stability
- Operating temperature range -65 to +170℃ due to special design
- RoHS 2011/65/EU compliant
- AEC-Q200 qualified
