IsabellenhuetteDatasheet (PDF)
BVT-M-R001-1.0

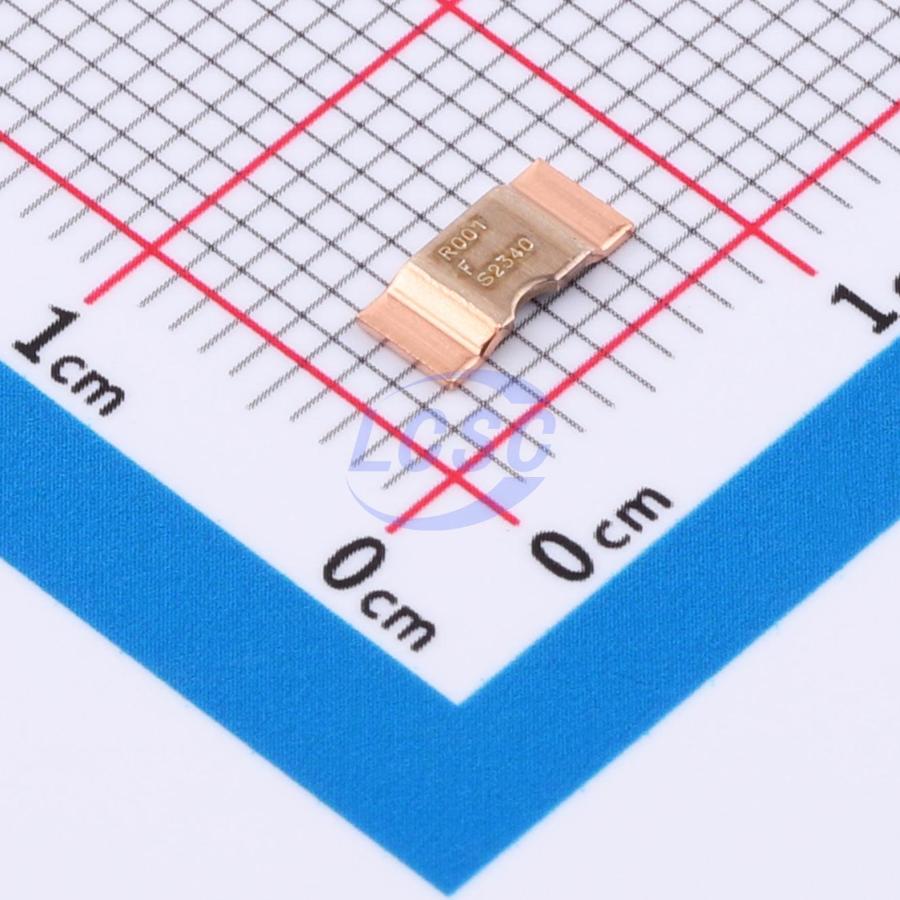

1mΩ 6W ±100ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 1mΩ ±1% 6W 2512
- Manufacturer
- Isabellenhuette
- Manufacturer part #
- BVT-M-R001-1.0
- Store part #
- C5956035
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,929 in stock
#C5956035
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.78 | ₹82.78 |
| 10+ | ₹67.79 | ₹677.90 |
| 30+ | ₹60.41 | ₹1,812.30 |
| 100+ | ₹52.80 | ₹5,280.00 |
| 500+ | ₹48.46 | ₹24,230.00 |
| 1,000+ | ₹46.07 | ₹46,070.00 |
1 × ₹82.78
₹82.78
excl. GST
₹97.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BVT-M-R001-1.0
₹82.78 for 1 + GST
Specifications
- Resistance
- 1mΩ
- Power(Watts)
- 6W
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+170℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.121 g
Overview
Applications
- Current sensors for power hybrid applications, automotive high-current applications, inverters, and power modules
Key features
- Rated power up to 6 W
- Continuous current load up to 100 A (0.3 mΩ)
- Heavy-duty copper terminations
- Excellent long-term stability
- Operating temperature range -65 to +170℃ due to special design
- RoHS 2011/65/EU compliant
- AEC-Q200 qualified
