BOYAMICRO

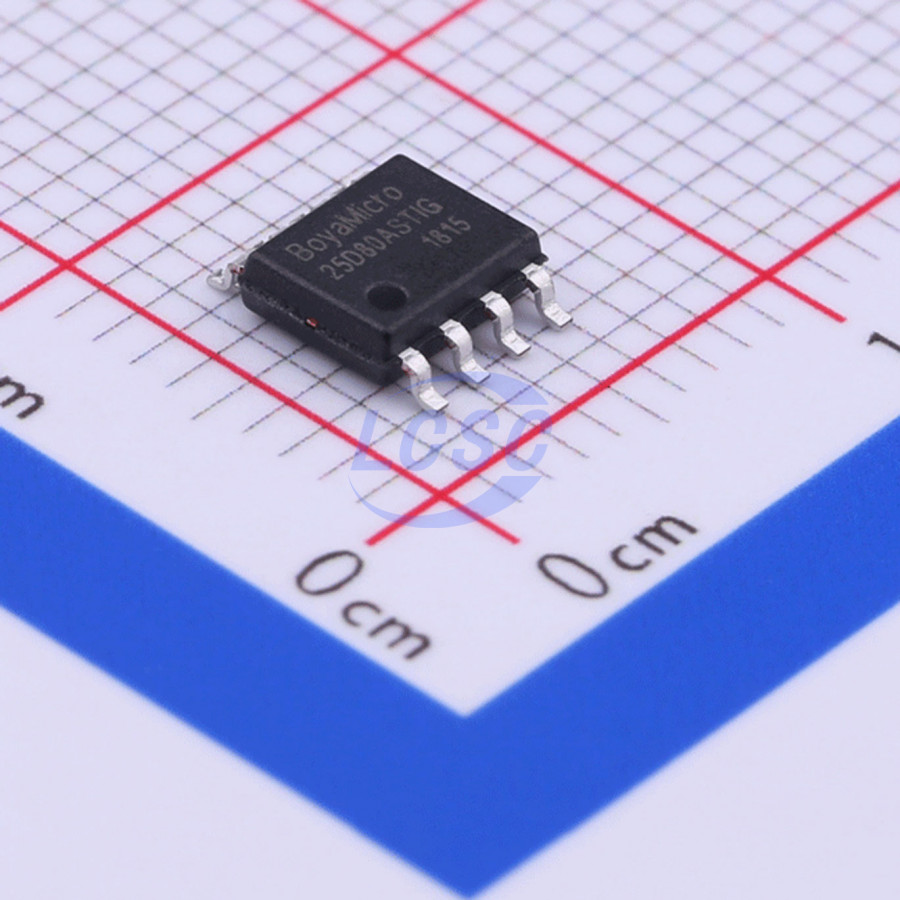

BY25D80ASTIG(R)
8Mbit 2.7V~3.6V 108MHz SPI SOP-8 Memory
SOP-8RoHSActive
8MBIT SPI NOR FLASH
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C383790
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.90 | ₹164.50 |
| 50+ | ₹25.80 | ₹1,290.00 |
| 150+ | ₹22.74 | ₹3,411.00 |
| 500+ | ₹18.95 | ₹9,475.00 |
| 2,500+ | ₹17.25 | ₹43,125.00 |
| 4,000+ | ₹16.23 | ₹64,920.00 |
5 × ₹32.90
₹164.50
excl. GST
₹194.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BY25D80ASTIG(R)
₹164.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection
- Memory Size
- 8Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 108MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 700us
- Standby Supply Current
- 5uA
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.117 g
Overview
The BY25D80 is 8M-bit Serial Peripheral Interface (SPI) Flash memory, and supports the Dual SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO). The Dual Output data is transferred with speed of 108Mbits/s. The device uses a single low voltage power supply, ranging from 2.7 Volt to 3.6 Volt. Additionally, the device supports JEDEC standard manufacturer and device ID.
Key features
- Serial Peripheral Interface (SPI) - Standard SPI: SCLK, /CS, SI, SO, /WP - Dual SPI: SCLK, /CS, IO0, IO1, /WP
- Read - Normal Read (Serial): 55MHz clock rate - Fast Read (Serial): 108MHz clock rate - Dual Read: 108MHz clock rate
- Program - Serial-input Page Program up to 256bytes
- Erase - Block erase (64/32 KB) - Sector erase (4 KB) - Chip erase
- Program/Erase Speed - Page Program time: 0.7ms typical - Sector Erase time: 100ms typical - Block Erase time: 0.3/0.5s typical - Chip Erase time: 8s typical
- Flexible Architecture - Sector of 4K-byte - Block of 32/64K-byte
- Low Power Consumption - 20mA maximum active current - 5uA maximum power down current
- Software/Hardware Write Protection - Enable/Disable protection with WP Pin - Write protect all/portion of memory via software - Top or Bottom, Sector or Block selection
- Single Supply Voltage - Full voltage range: 2.7~3.6V
- Temperature Range - Commercial (0℃ to +70℃) - Industrial (-40℃ to +85℃)
- Cycling Endurance/Data Retention - Typical 100k Program-Erase cycles on any sector - Typical 20-year data retention at +55℃
