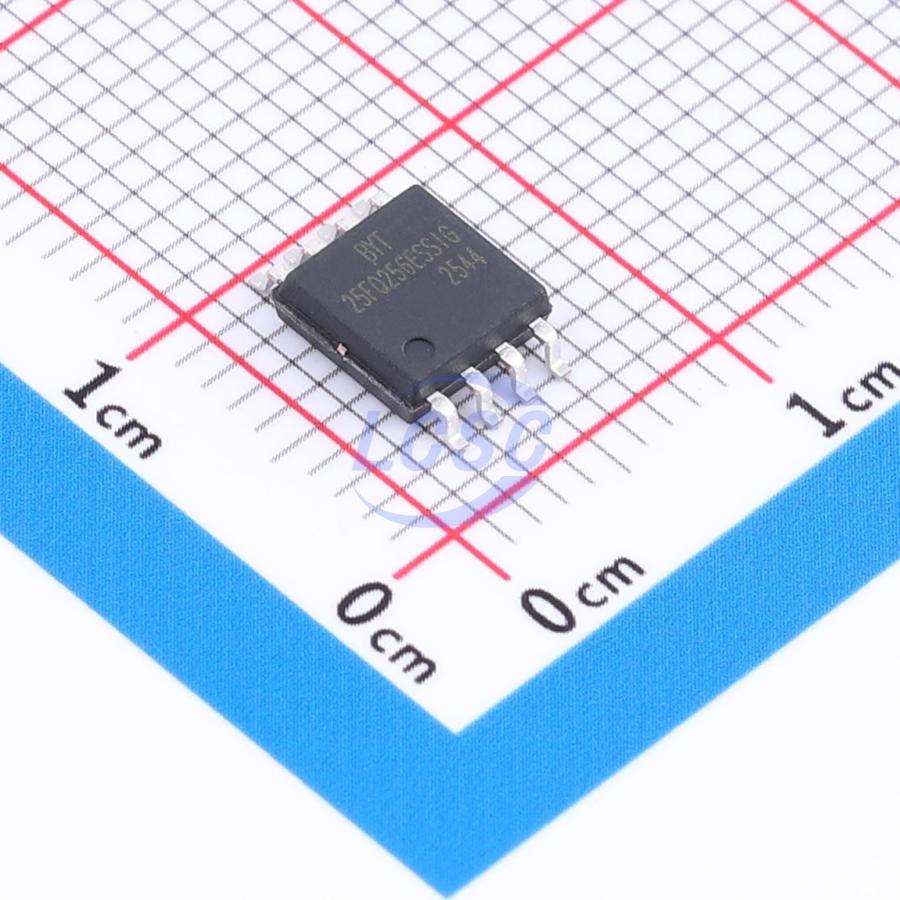

BOYAMICRO
BY25FQ256ESSIG
256Mbit 2.7V~3.6V 133MHz SPI SOP-8-208mil Memory
SOP-8-208milRoHSActive
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,419 in stock
#C46638715
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹370.32 | ₹370.32 |
| 10+ | ₹316.99 | ₹3,169.90 |
| 30+ | ₹283.60 | ₹8,508.00 |
| 100+ | ₹249.35 | ₹24,935.00 |
| 500+ | ₹233.73 | ₹1,16,865.00 |
| 1,000+ | ₹227.23 | ₹2,27,230.00 |
1 × ₹370.32
₹370.32
excl. GST
₹436.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BY25FQ256ESSIG
₹370.32 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 256Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 300us
- Interface
- SPI
- Standby Supply Current
- 1uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
Key features
- Serial Peripheral Interface
- Standard SPI: SCLK, /CS, SI, SO, /WP, /HOLD
- Dual SPI: SCLK, /CS, IO0, IO1, /WP, /HOLD
- Quad SPI: SCLK, /CS, IO0, IO1, IO2, IO3
- QPI: SCLK, /CS, IO0, IO1, IO2, IO3
- DTR (Double Transfer Rate) read
- 3- or 4-byte address mode
- Read
- XIP (Execute In Place) operation support
- Continuous read with 8/16/32/64-byte wrap
- Program
- Serial input page program, up to 256 bytes
- Program suspend and resume
- Erase
- Block erase (64/32KB)
- Sector erase (4KB)
- Chip erase
- Erase suspend and resume
- High-speed clock frequency
- 133MHz for fast read
- Dual I/O data transfer rate up to 300Mbits/s
- Quad I/O data transfer rate up to 600Mbits/s
- QPI mode data transfer rate up to 600Mbits/s
- DTR data transfer rate up to 800Mbits/s
- Program/erase speed
- Page program time: typical 0.3ms
- Sector erase time: typical 25ms
- Block erase time: typical 60ms/100ms
- Chip erase time: typical 45s
- Flexible architecture
- 4K-byte sectors
- 32/64K-byte blocks
- Low power consumption
- Typical operating current 12mA
- Typical power-down current 1uA
- Software/hardware write protection
- 3×1024-byte security registers with OTP lock
- Serial Flash Discoverable Parameters (SFDP) register
- Protection enable/disable via /WP pin
- Top/bottom, complementary array protection
- Individual block memory protection
- Temperature range
- Commercial (-40°C ~ +85°C)
- Industrial (-40°C ~ +85°C)
- Industrial (-40°C ~ +105°C)
- Industrial (-40°C ~ +125°C)
- Endurance/data retention
- Typical 100k program-erase cycles per sector
- Typical 20-year data retention
- Package options
- SOP 8 - 208mil
- SOP16 - 300mil
- WSON8 - 5×6mm
- WSON8 - 6×8mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BY25Q256FSSIG#C22391877BOYAMICRO · SOP-8-208mil | BOYAMICRO | SOP-8-208mil | 1,339 | ₹459.44 · 1,339 in stock | View |
