BOYAMICRO

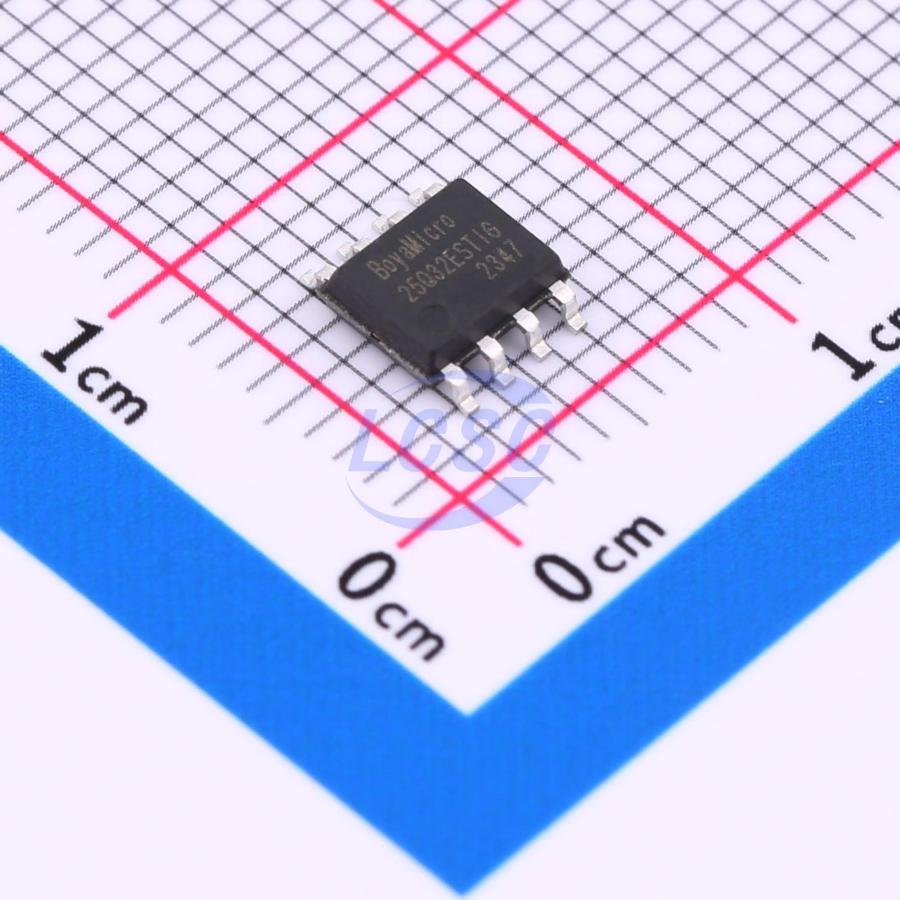

BY25Q32ESTIG

32Mbit 2.7V~3.6V 120MHz SPI SOP-8 Memory RoHS

SOP-8ROHS CompliantActive

32M BIT SPINOR FLASH

Manufacturer: BOYAMICRO
Manufacturer part #: BY25Q32ESTIG
Store part #: C22391875
Package / case: SOP-8
Category: Memory
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,598 in stock

#C22391875

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹56.28	₹56.28
10+	₹44.11	₹441.10
30+	₹38.90	₹1,167.00
100+	₹32.60	₹3,260.00
500+	₹29.77	₹14,885.00
1,000+	₹28.03	₹28,030.00

Quantity (min 1)

1 × ₹56.28

₹56.28

excl. GST

₹66.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 100 per tube

BY25Q32ESTIG

₹56.28 for 1 + GST

Specifications

Features: Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
Memory Size: 32Mbit
Voltage - Supply: 2.7V~3.6V
Program / Erase Cycles: 100,000 cycles
Clock Frequency: 120MHz
Data Retention - TDR (Year): 20 Years
Block Erase Time(tBE): 100ms@(32KB)
Page Programming Time (Tpp): 450us
Standby Supply Current: 2uA
Interface: SPI

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 100 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.11 g

Overview

The BY25Q32ES is 32M-bit Serial Peripheral Interface (SPI) Flash memory and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (/WP), and I/O3 (/HOLD). The Dual I/O data is transferred with speed of 216Mbits/s and the Quad I/O & Quad output data is transferred with speed of 432Mbits/s. The device uses a single low voltage power supply, ranging from 2.7 Volt to 3.6 Volt. Additionally, the device supports JEDEC standard manufacturer and device ID and three 1024bytes Security Registers.

Key features

Serial Peripheral Interface - Standard SPI: SCLK, /CS, SI, SO, /WP, /HOLD - Dual SPI: SCLK, /CS, IO0, IO1, /WP, /HOLD - Quad SPI: SCLK, /CS, IO0, IO1, IO2, IO3
Read - Normal Read (Serial): 100MHz clock rate - Fast Read (Serial): 120MHz clock rate with 30PF load - Dual I/O data transfer up to 240Mbits/S - Quad I/O data transfer up to 480Mbits/S - Allows XIP (execute in place) Operation: Continuous Read with 8/16/32/64-byte Wrap
Program - Serial-input Page Program up to 256bytes
Erase - Block Erase (64/32 KB) - Sector Erase (4 KB) - Chip Erase - Erase Suspend and Resume
Program/Erase Speed - Page Program time: 0.45ms typical - Sector Erase time: 35ms typical - Block Erase time: 0.10/0.18s typical - Chip Erase time: 11s typical
Flexible Architecture - Sector of 4K-byte - Block of 32/64K-byte
Low Power Consumption - 10mA maximum active current - 2uA maximum power down current
Software/Hardware Write Protection - 3x1024-Byte Security Registers with OTP Locks - Discoverable Parameters (SFDP) register - Enable/Disable protection with WP Pin - Write protect all/portion of memory via software - Top or Bottom, Sector or Block selection
Single Supply Voltage - Full voltage range: 2.7~3.6V
Temperature Range - Commercial (-40℃ to +85℃) - Industrial (-40℃ to +85℃) - Industrial (-40℃ to +105℃) - Industrial (-40℃ to +125℃)
Cycling Endurance/Data Retention - Typical 100k Program-Erase cycles on any sector - Typical 20-year data retention
