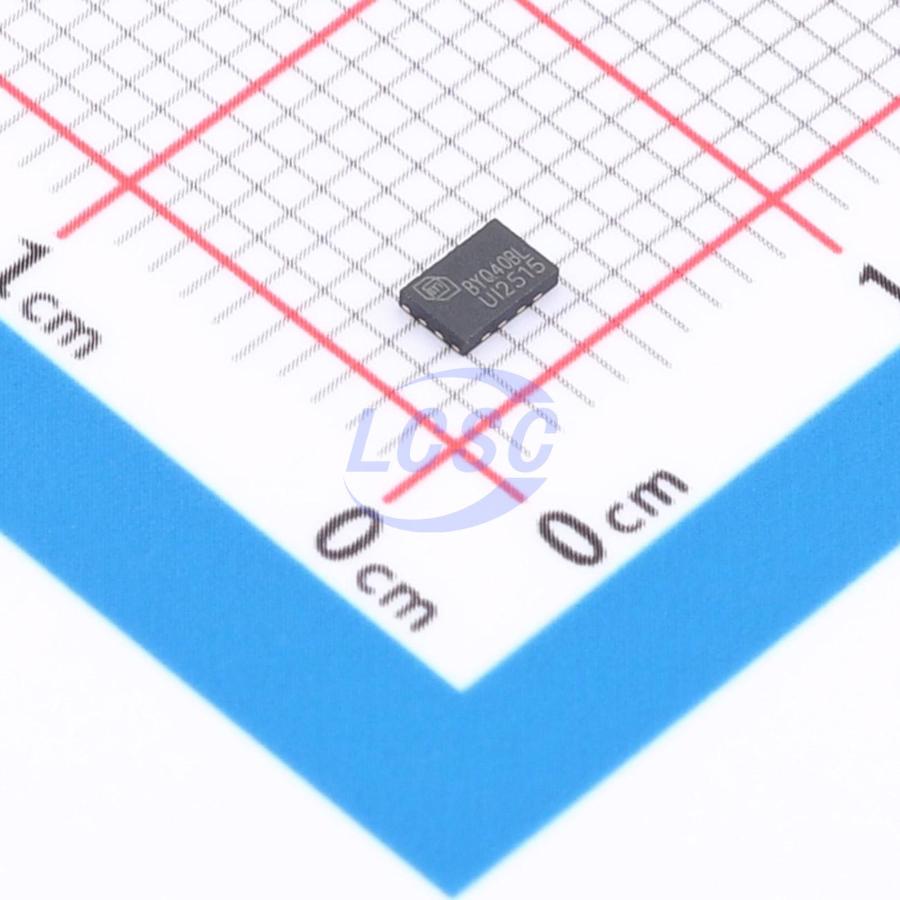

BY25Q40BLUIG(R)

The BY25Q40BL is a 4M-bit SPI Flash memory designed for high-volume consumer applications where program code is loaded from Flash into embedded or external RAM for execution. The device features a flexible erase architecture whose page-erase granularity makes it equally well-suited for data storage, eliminating the need for additional data storage devices. The erase block sizes are optimized to meet the demands of today's code and data storage applications. By optimizing erase block sizes, storage space can be utilized more efficiently. Since certain code modules and data storage segments must reside within their own erase regions, wasted and unused memory space resulting from large-sector and large-block erase operations is significantly reduced compared to Flash devices that employ large-sector and large-block erase. This improved storage space efficiency allows additional code routines and data storage segments to be added while maintaining the same overall device density. The device operates from a single low-voltage supply of 1.65V to 2.0V and supports JEDEC standard manufacturer and device IDs, one 128-bit serial number, and three 512-byte security registers.

Key features

• 4Mb SPI NOR Flash
• Serial Peripheral Interface
• Standard SPI: SCLK, /CS, SI, SO, /WP, /HOLD
• Dual SPI: SCLK, /CS, IO0, IO1, /WP, /HOLD
• Quad SPI: SCLK, /CS, IO0, IO1, IO2, IO3
• Software Reset
• Read: Normal read data clock rate 33MHz, other read data clock rate 85MHz
• Program: Serial input page program up to 256 bytes, dual input page program up to 256 bytes, quad input page program up to 256 bytes; program suspend and resume supported
• Erase: Page erase (256 bytes), block erase (64/32 KB), sector erase (4 KB), chip erase; erase suspend and resume supported
• Program/Erase Speed: Page program time typical 2ms, page erase time typical 8ms, sector/block erase time typical 8ms, chip erase time typical 8ms
• Flexible Architecture: 4K-byte sectors, 32/64K-byte blocks
• Low Power: Max operating current 3mA, max power-down current 0.6μA
• Software/Hardware Write Protection: Three 512-byte security registers with OTP lock, protection enabled/disabled via WP pin, software write protection for all or portion of memory, top or bottom, sector or block selection supported
• Single Supply Voltage: Full voltage range 1.65V ~ 2.0V
• Temperature Range: Commercial (0°C ~ +70°C), Industrial (-40°C ~ +85°C)
• Endurance/Data Retention: Typical endurance 100,000 erase/program cycles per sector, typical data retention 20 years
