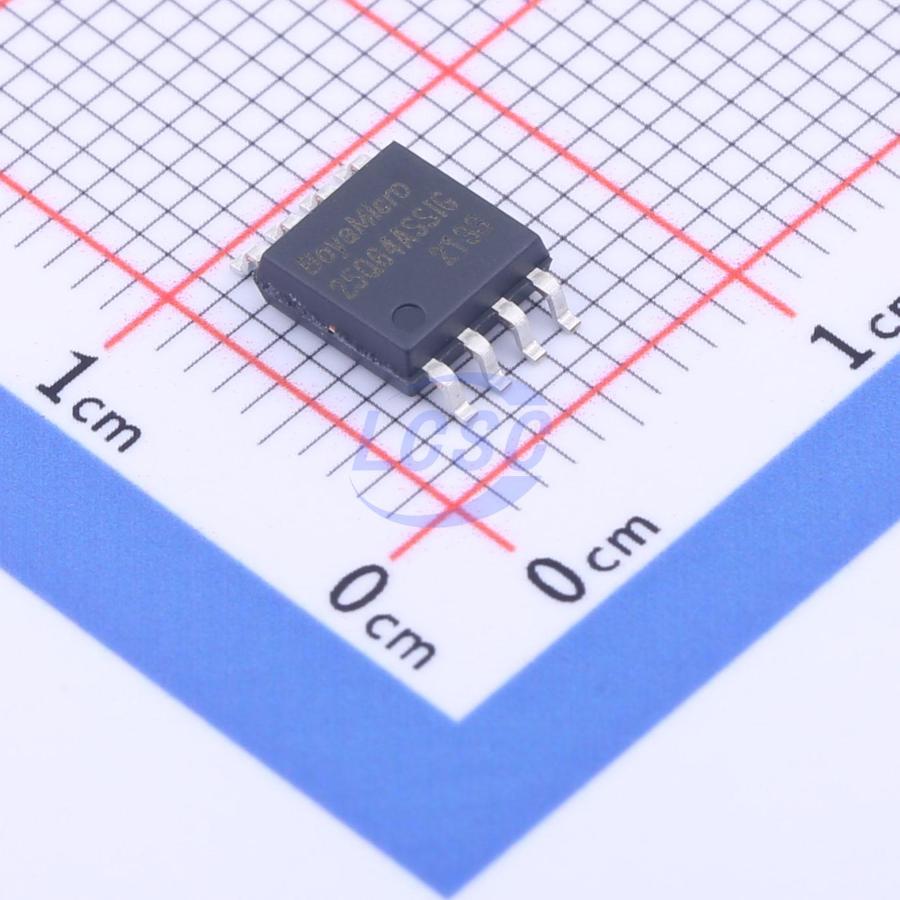

BY25Q64ASSIG(R)
64Mbit 2.7V~3.6V 108MHz SPI SOP-8-208mil Memory
64MBIT SPI NOR FLASH
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,271 in stock
#C2686191
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹170.85 | ₹170.85 |
| 10+ | ₹143.53 | ₹1,435.30 |
| 30+ | ₹128.58 | ₹3,857.40 |
| 100+ | ₹111.66 | ₹11,166.00 |
| 500+ | ₹104.29 | ₹52,145.00 |
| 1,000+ | ₹100.83 | ₹1,00,830.00 |
1 × ₹170.85
₹170.85
excl. GST
₹201.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BY25Q64ASSIG(R)
₹170.85 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 64Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 108MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 600us
- Standby Supply Current
- 5uA
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
The BY25Q64AS is 64M-bit Serial Peripheral Interface (SPI) Flash memory, and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (/WP), and I/O3 (/HOLD). The Dual I/O data is transferred with speed of 240Mbits/s and the Quad I/O & Quad output data is transferred with speed of 480Mbits/s. The device uses a single low voltage power supply, ranging from 2.7 Volt to 3.6 Volt. Additionally, the device supports JEDEC standard manufacturer and device ID and three 256-bytes Security Registers.
Key features
- Serial Peripheral Interface (SPI)
- Standard SPI: SCLK, /CS, SI, SO, /WP, /HOLD
- Dual SPI: SCLK, /CS, IO0, IO1, /WP, /HOLD
- Quad SPI: SCLK, /CS, IO0, IO1, IO2, IO3
- Read
- Normal Read (Serial): 55MHz clock rate
- Fast Read (Serial): 108MHz clock rate with 30PF load
- Dual I/O data transfer up to 216Mbits/S
- Quad I/O data transfer up to 432Mbits/S
- Continuous Read with 8/16/32/64-byte Wrap
- Program
- Serial-input Page Program up to 256bytes
- Program Suspend and Resume
- Erase
- Block erase (64/32 KB)
- Sector erase (4 KB)
- Chip erase
- Erase Suspend and Resume
- Program/Erase Speed
- Page Program time: 0.6ms typical
- Sector Erase time: 50ms typical
- Block Erase time: 0.15/0.25s typical
- Chip Erase time: 25s typical
- Flexible Architecture
- Sector of 4K-byte
- Block of 32/64K-byte
- Low Power Consumption
- 20mA maximum active current
- 5uA maximum power down current
- Software/Hardware Write Protection
- 3x256-Byte Security Registers with OTP Locks
- Discoverable Parameters (SFDP) register
- Enable/Disable protection with WP Pin
- Write protect all/portion of memory via software
- Top or Bottom, Sector or Block selection
- Single Supply Voltage
- Full voltage range: 2.7~3.6V
- Temperature Range
- Commercial (0℃ to +70℃)
- Industrial (-40℃ to +85℃)
- Cycling Endurance/Data Retention
- Typical 100k Program-Erase cycles on any sector
- Typical 20-year data retention
