VISHAYDatasheet (PDF)

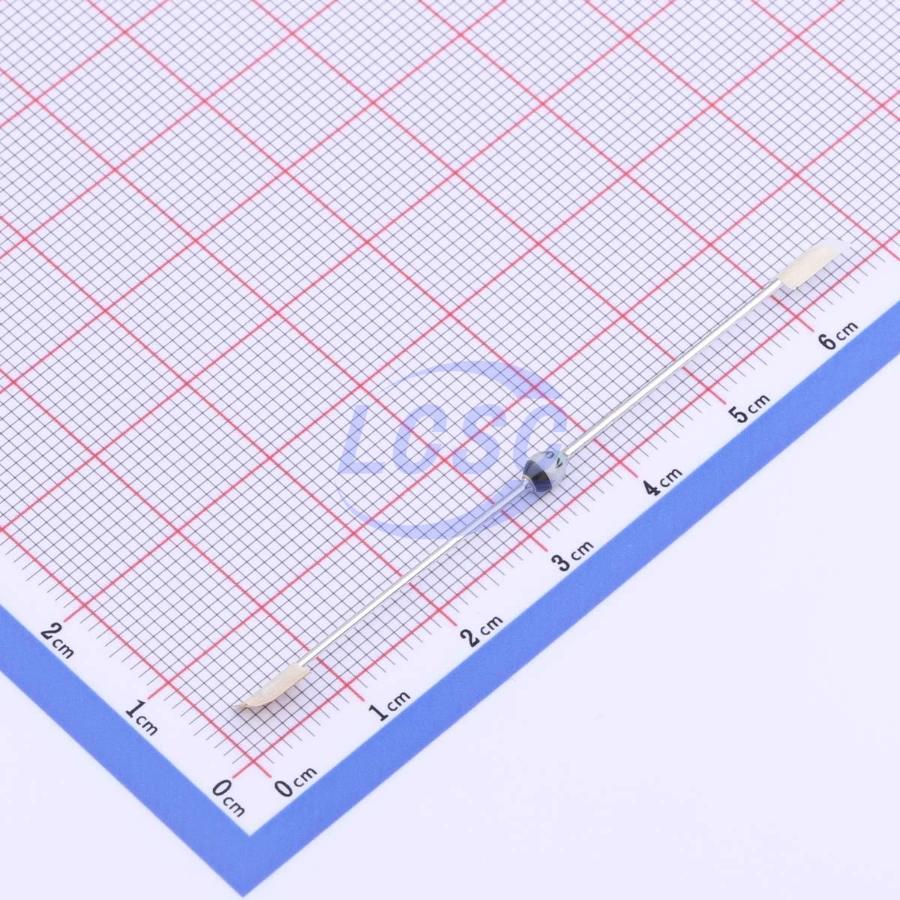

BYV27-200-TR
25ns 1 Independent 200V 1.07V@3A 2A SOD-57 Single Diodes RoHS
SOD-57ROHS3 CompliantActive
Ultra-Fast Avalanche Sinterglass Diode
- Manufacturer
- VISHAY
- Manufacturer part #
- BYV27-200-TR
- Store part #
- C968555
- Package / case
- SOD-57
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,532 in stock
#C968555
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.81 | ₹107.81 |
| 10+ | ₹91.26 | ₹912.60 |
| 30+ | ₹82.77 | ₹2,483.10 |
| 100+ | ₹74.48 | ₹7,448.00 |
| 500+ | ₹69.47 | ₹34,735.00 |
| 1,000+ | ₹67.08 | ₹67,080.00 |
1 × ₹107.81
₹107.81
excl. GST
₹127.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BYV27-200-TR
₹107.81 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 25ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1.07V@3A
- Reverse Leakage Current (Ir)
- 1uA@200V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
- Avalanche Energy
- 20mJ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.46 g
Overview
Applications
- Very fast rectification diode e.g. for switch mode power supply
Key features
- Controlled avalanche characteristic
- Low forward voltage
- Ultra fast recovery time
- Glass passivated junction
- Hermetically sealed package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BYV27-200-TAP#C40502VISHAY · SOD-57 | VISHAY | SOD-57 | 2,732 | ₹92.78 · 2,732 in stock | View |
| 1N5061TR#C6656722VISHAY · SOD-57 | VISHAY | SOD-57 | 14 | ₹69.01 · 14 in stock | View | |
 | BYW56-TAP#C4990337VISHAY · SOD-57 | VISHAY | SOD-57 | 101 | ₹235.34 · 101 in stock | View |
 | BYW56#C48928114XCH · SOD-57 | XCH | SOD-57 | 2,445 | ₹41.82 · 2,445 in stock | View |
 | BY448#C48928112XCH · SOD-57 | XCH | SOD-57 | 35 | ₹38.25 · 35 in stock | View |
