DIODESDatasheet (PDF)

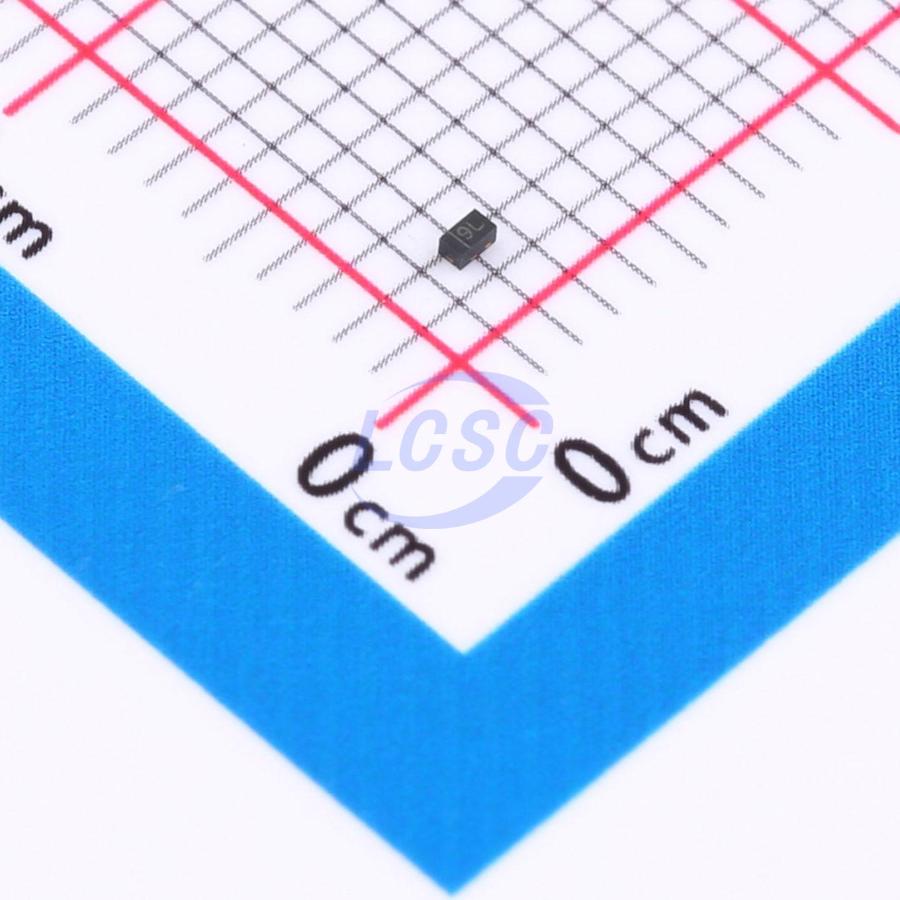

BZT52C15LP-7
Zener Diode 15V 250mW X1-Surface Mount DFN1006-2
X1-DFN1006-2ROHS3 CompliantActive
DIODE ZENER 15V 250mW X1-DFN1006-2
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C15LP-7
- Store part #
- C2978911
- Package / case
- X1-DFN1006-2
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
255 in stock
#C2978911
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.40 | ₹142.00 |
| 50+ | ₹22.54 | ₹1,127.00 |
| 150+ | ₹20.04 | ₹3,006.00 |
| 500+ | ₹16.91 | ₹8,455.00 |
| 3,000+ | ₹15.52 | ₹46,560.00 |
| 6,000+ | ₹14.67 | ₹88,020.00 |
5 × ₹28.40
₹142.00
excl. GST
₹167.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C15LP-7
₹142.00 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 100nA@10.5V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 13.8V~15.6V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 200Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Key features
- Ultra-Small Leadless Surface Mount Package
- Ideally Suited for Automated Assembly Processes
- Lead Free By Design/ReHS Compliant
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NZ8F15VMX2WT5G#C896506onsemi · X2DFNW2(0.6x1) | onsemi | X2DFNW2(0.6x1) | 490 | ₹46.70 · 490 in stock | View |
 | BZX884B15#C7529006amsem · DFN1006-2L | amsem | DFN1006-2L | 8,050 | ₹2.45 · 8,050 in stock | View |
 | SZNZ8P12VMX2WT5G#C52147577onsemi · X2DFNW2(1x0.6) | onsemi | X2DFNW2(1x0.6) | 185 | ₹22.49 · 185 in stock | View |
 | LNZ8F15VT5G-MS#C3018902MSKSEMI · SOD-882 | MSKSEMI | SOD-882 | 360 | ₹4.68 · 360 in stock | View |
 | BZT52C15LPQ-7#C5248650DIODES · X1-DFN1006-2 | DIODES | X1-DFN1006-2 | On request | ₹10.07 · 0 in stock | View |
