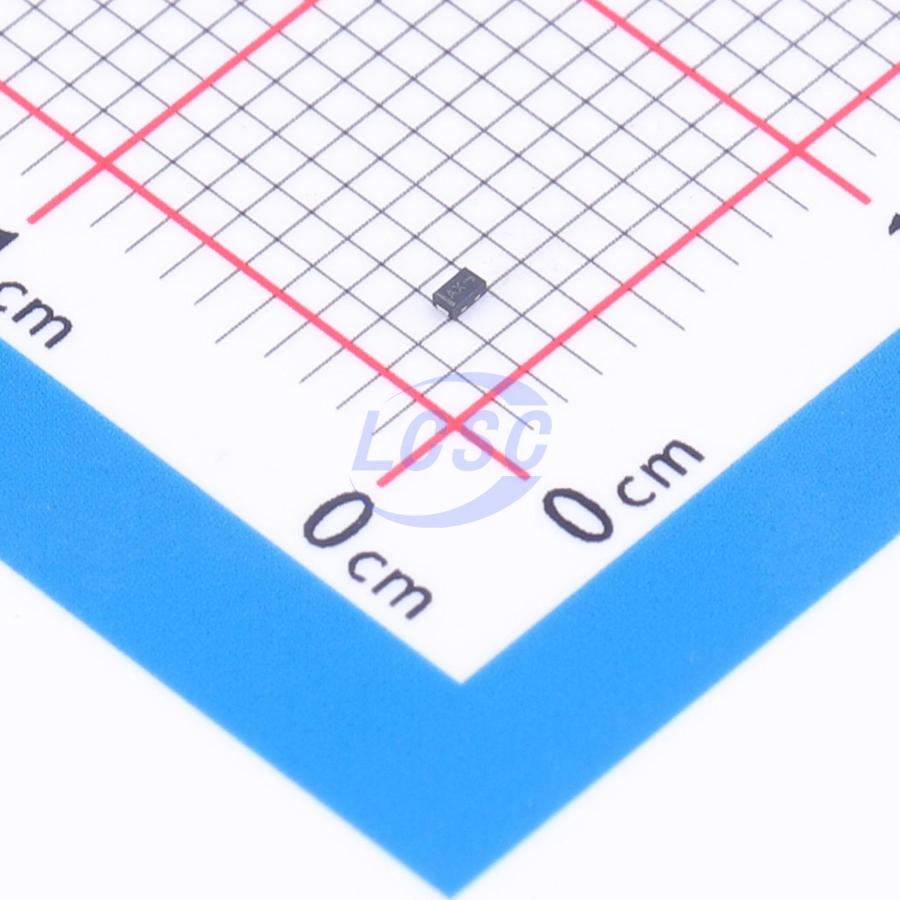

NZ8F15VMX2WT5G
1 Independent 14.25V~15.75V 15V X2DFNW2(0.6x1) Single Zener Diodes RoHS
X2DFNW2(0.6x1)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NZ8F15VMX2WT5G
- Store part #
- C896506
- Package / case
- X2DFNW2(0.6x1)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
490 in stock
#C896506
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.70 | ₹233.50 |
| 50+ | ₹36.92 | ₹1,846.00 |
| 150+ | ₹32.74 | ₹4,911.00 |
| 500+ | ₹27.52 | ₹13,760.00 |
| 2,500+ | ₹25.19 | ₹62,975.00 |
| 5,000+ | ₹23.79 | ₹1,18,950.00 |
5 × ₹46.70
₹233.50
excl. GST
₹275.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
NZ8F15VMX2WT5G
₹233.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 100nA@11V
- Impedance(Zzt)
- 42Ω
- Zener Voltage(Range)
- 14.25V~15.75V
- Zener Voltage(Nom)
- 15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.014 g
Overview
This series of Zener diodes is packaged in a X2DFNW2 surface mount package with an industry standard size of 0402 in. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and automotive control units.
Applications
- cellular phones
- hand held portables
- automotive control units
Key features
- Zener Breakdown Voltage Range: -2.4V to 47V
- Standard Tolerance Series - NZ8FxxxMX2WT5G
- Tight Tolerance Series - NZ8FxxxSMX2WT5G
- Low Body Height: 0.016" (0.40mm)
- Wettable Flank Package for optimal Automated Optical Inspection (AOI)
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q101 Qualified and PPAP Capable
- These Devices are Pb - Free, Halogen Free/BFR Free and are RoHS Compliant
