DIODESDatasheet (PDF)

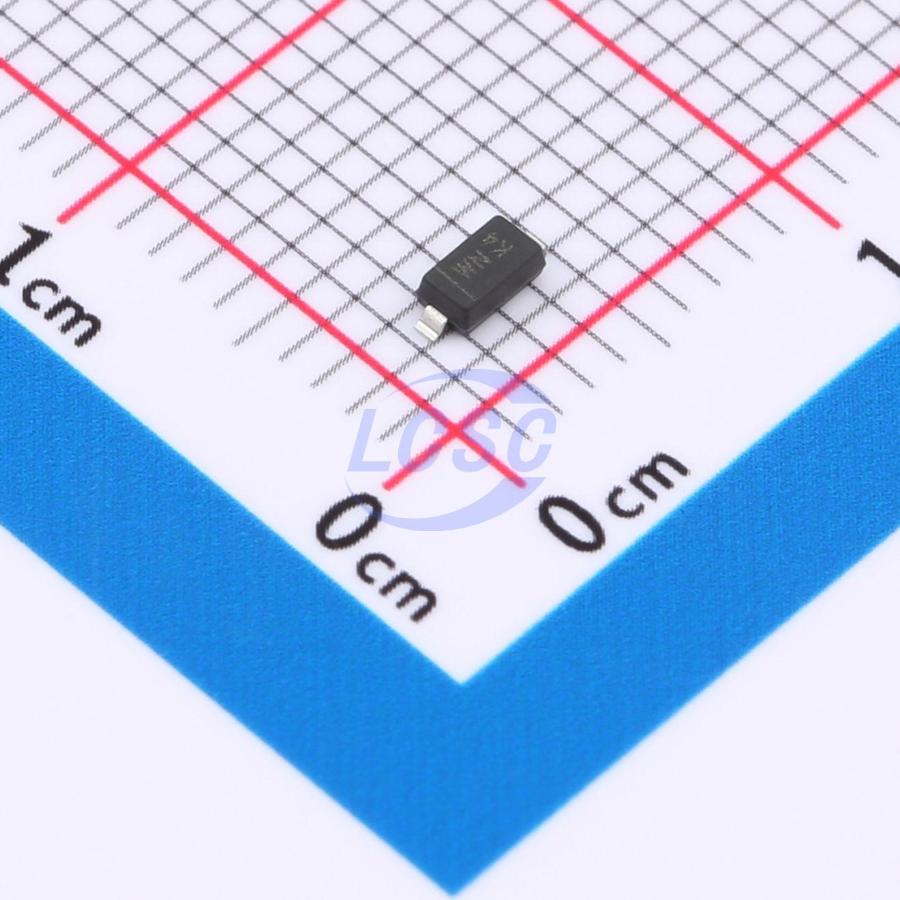

BZT52C22-13-F
Zener Diode Independent 22V 370mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 22V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C22-13-F
- Store part #
- C5244695
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C5244695
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.96 | ₹104.80 |
| 50+ | ₹20.65 | ₹1,032.50 |
| 150+ | ₹20.45 | ₹3,067.50 |
| 500+ | ₹20.26 | ₹10,130.00 |
5 × ₹20.96
₹104.80
excl. GST
₹123.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C22-13-F
₹104.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 100nA@1V
- Impedance(Zzt)
- 55Ω
- Zener Voltage(Range)
- 20.8V~23.3V
- Zener Voltage(Nom)
- 22V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Key features
- Planar Die Construction
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C22-7-F#C151320DIODES · SOD-123 | DIODES | SOD-123 | 1,540 | ₹2.77 · 1,540 in stock | View |
 | BZT52C22#C499798SMC · SOD-123 | SMC | SOD-123 | 60 | ₹3.11 · 60 in stock | View |
 | BZT52C22#C22375295R+O · SOD-123 | R+O | SOD-123 | 7,39,250 | ₹2.33 · 7,39,250 in stock | View |
 | BZT52C22#C54930416HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 2,900 | ₹1.40 · 2,900 in stock | View |
 | MMSZ5251B-7-F#C151387DIODES · SOD-123 | DIODES | SOD-123 | 5,080 | ₹8.19 · 5,080 in stock | View |
