DIODESDatasheet (PDF)

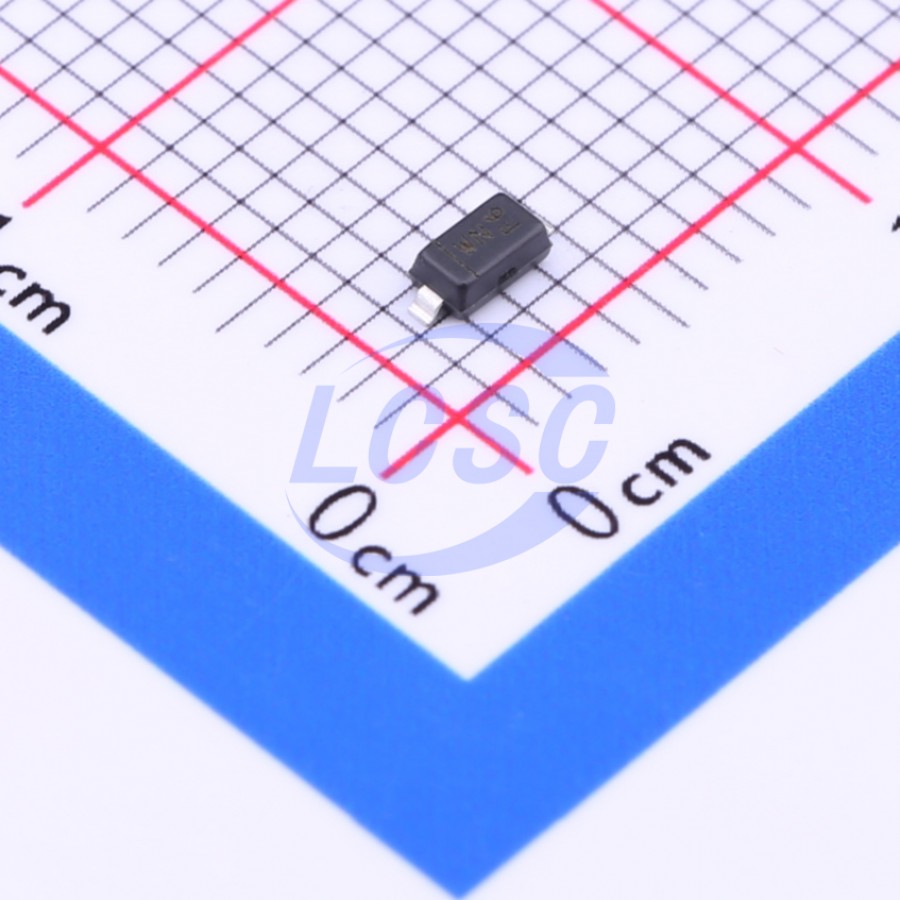

BZT52C22-7-F
Zener Diode Independent 22V 370mW Surface Mount SOD-123
SOD-123ROHS CompliantActive
DIODE ZENER 22V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C22-7-F
- Store part #
- C151320
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C151320
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.77 | ₹55.40 |
| 200+ | ₹2.70 | ₹540.00 |
| 600+ | ₹2.66 | ₹1,596.00 |
| 3,000+ | ₹2.62 | ₹7,860.00 |
20 × ₹2.77
₹55.40
excl. GST
₹65.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C22-7-F
₹55.40 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 55Ω
- Zener Voltage(Range)
- 20.8V~23.3V
- Zener Voltage(Nom)
- 22V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.034 g
