DIODESDatasheet (PDF)

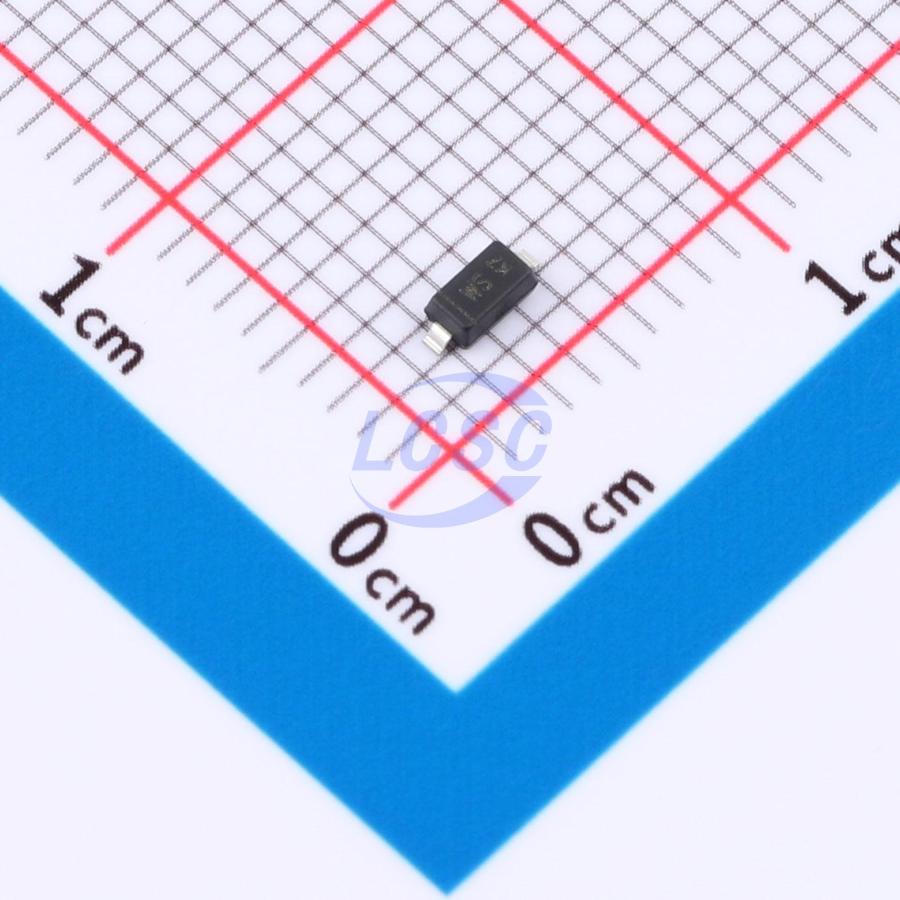

BZT52C36Q-7-F
1 Independent 34V~38V 36V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C36Q-7-F
- Store part #
- C19949142
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C19949142
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹57.11 | ₹285.55 |
| 50+ | ₹47.64 | ₹2,382.00 |
| 150+ | ₹43.58 | ₹6,537.00 |
| 500+ | ₹38.51 | ₹19,255.00 |
| 3,000+ | ₹36.25 | ₹1,08,750.00 |
| 6,000+ | ₹34.90 | ₹2,09,400.00 |
5 × ₹57.11
₹285.55
excl. GST
₹336.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per bag
BZT52C36Q-7-F
₹285.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 100nA@25.2V
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 34V~38V
- Zener Voltage(Nom)
- 36V
- Impedance(Zzk)
- 350Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 3,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
Key features
- Planar Die Construction
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C36-7-F#C124189DIODES · SOD-123 | DIODES | SOD-123 | 2,040 | ₹6.17 · 2,040 in stock | View |
 | BZT52C36#C2827902Guangdong Hottech · SOD-123 | Guangdong Hottech | SOD-123 | 2,700 | ₹2.29 · 2,700 in stock | View |
 | BZT52C36#C19077420R+O · SOD-123 | R+O | SOD-123 | 1,23,710 | ₹2.30 · 1,23,710 in stock | View |
 | BZT52C36#C54930421HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 3,000 | ₹1.43 · 3,000 in stock | View |
 | MMSZ5258BQ-13-F#C5244965DIODES · SOD-123 | DIODES | SOD-123 | 130 | ₹6.64 · 130 in stock | View |
