DIODESDatasheet (PDF)

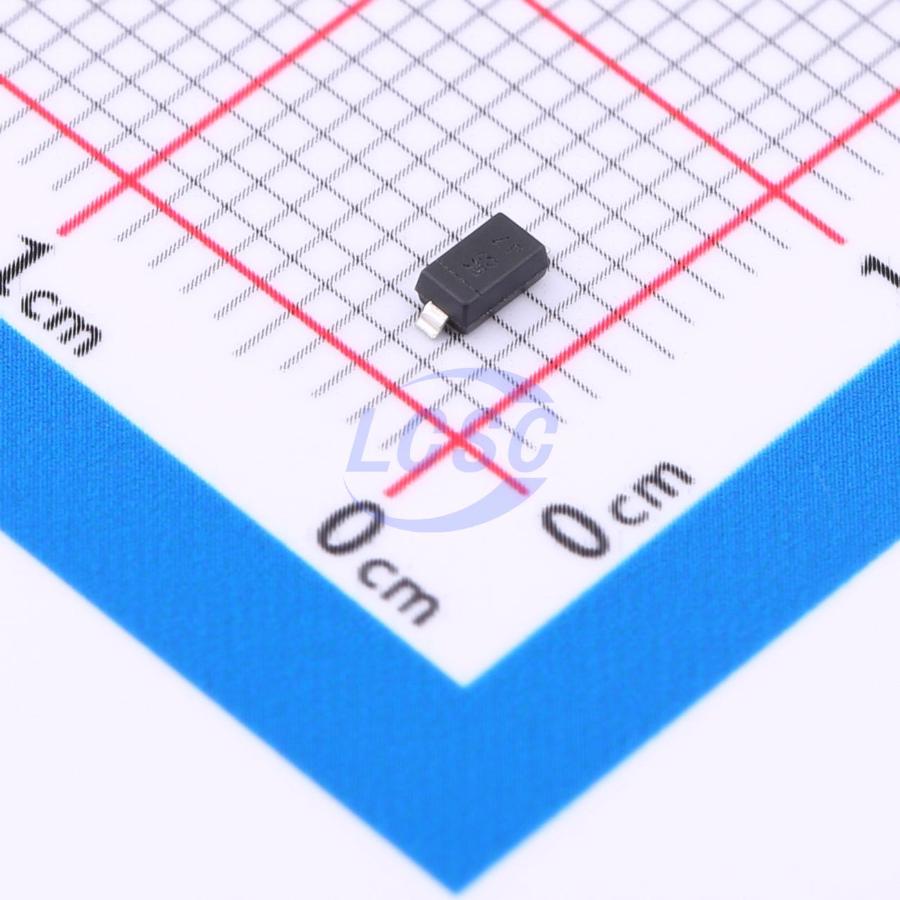

MMSZ5258BQ-13-F
Zener Diode Independent 36V 370mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 36V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5258BQ-13-F
- Store part #
- C5244965
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C5244965
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.64 | ₹66.40 |
| 100+ | ₹6.55 | ₹655.00 |
| 300+ | ₹6.48 | ₹1,944.00 |
| 1,000+ | ₹6.42 | ₹6,420.00 |
10 × ₹6.64
₹66.40
excl. GST
₹78.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5258BQ-13-F
₹66.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 100nA@27V
- Impedance(Zzt)
- 70Ω
- Zener Voltage(Range)
- 34.2V~37.8V
- Zener Voltage(Nom)
- 36V
- Impedance(Zzk)
- 700Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
Key features
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5258B#C21541JSCJ · SOD-123 | JSCJ | SOD-123 | 1,280 | ₹3.97 · 1,280 in stock | View |
 | BZT52C36-7-F#C124189DIODES · SOD-123 | DIODES | SOD-123 | 2,040 | ₹6.17 · 2,040 in stock | View |
 | BZT52C36Q-7-F#C19949142DIODES · SOD-123 | DIODES | SOD-123 | 500 | ₹57.11 · 500 in stock | View |
 | MMSZ5258B-TP#C5452793MCC · SOD-123 | MCC | SOD-123 | 2,500 | ₹6.77 · 2,500 in stock | View |
 | MMSZ5258BT1G#C193869onsemi · SOD-123 | onsemi | SOD-123 | 12,240 | ₹6.02 · 12,240 in stock | View |
