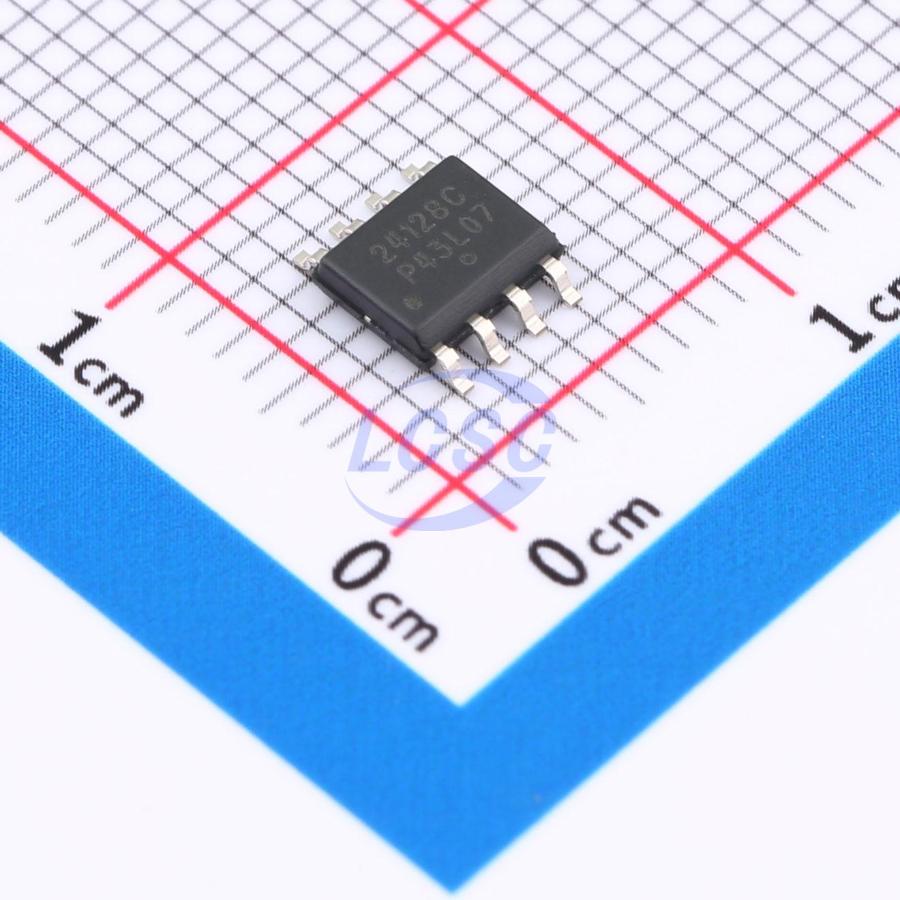

CAT24C128WI-GT3
128Kbit 1MHz I2C SOIC-8 Memory RoHS
128 kb Serial CMOS EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,389 in stock
#C81195
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.68 | ₹57.68 |
| 10+ | ₹45.10 | ₹451.00 |
| 30+ | ₹39.69 | ₹1,190.70 |
| 100+ | ₹32.96 | ₹3,296.00 |
| 500+ | ₹29.93 | ₹14,965.00 |
| 1,000+ | ₹28.19 | ₹28,190.00 |
1 × ₹57.68
₹57.68
excl. GST
₹68.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAT24C128WI-GT3
₹57.68 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function;Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 3.5us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
The CAT24C128 is a 128 kb Serial CMOS EEPROM, internally organized as 16,384 words of 8 bits each. It features a 64−byte page write buffer and supports both the Standard [00 kHz), Fast (400 kHz) and Fast−Plus (1 MHz) I²C protocol. Write operations can be inhibited by taking the WP pin High (this protects the entire memory). On−Chip ECC (Error Correction Code) makes the device suitable for high reliability applications.
Key features
- Supports Standard, Fast and Fast−Plus I²C Protocol
- 1.8 V to 5.5 V Supply Voltage Range
- 64−Byte Page Write Buffer
- Hardware Write Protection for Entire Memory
- Schmitt Triggers and Noise Suppression Filters on I²C Bus Inputs (SCL and SDA)
- Low Power CMOS Technology
- 1,000,000 Program/Erase Cycles
- 100 Year Data Retention
- Industrial and Extended Temperature Range
- 8−lead PDIP, SOIC, TSSOP, MSOP and UDFN Packages
- This Device is Pb−Free, Halogen Free/BFR Free and RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C128AM/TR#C22396896HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,375 | ₹34.13 · 2,375 in stock | View |
 | 24C128BN(XBLW)#C19708136XBLW · SOP-8 | XBLW | SOP-8 | 6,780 | ₹17.05 · 6,780 in stock | View |
 | HG24LC128M/TR#C3007884HGSEMI · SOP-8 | HGSEMI | SOP-8 | 815 | ₹27.29 · 815 in stock | View |
 | AT24LC128M/TR#C3007893HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,220 | ₹27.84 · 1,220 in stock | View |
 | FT24C128A-ESR-T#C417367FMD(Fremont Micro Devices) · SOP-8 | FMD(Fremont Micro Devices) | SOP-8 | 2,635 | ₹20.29 · 2,635 in stock | View |
