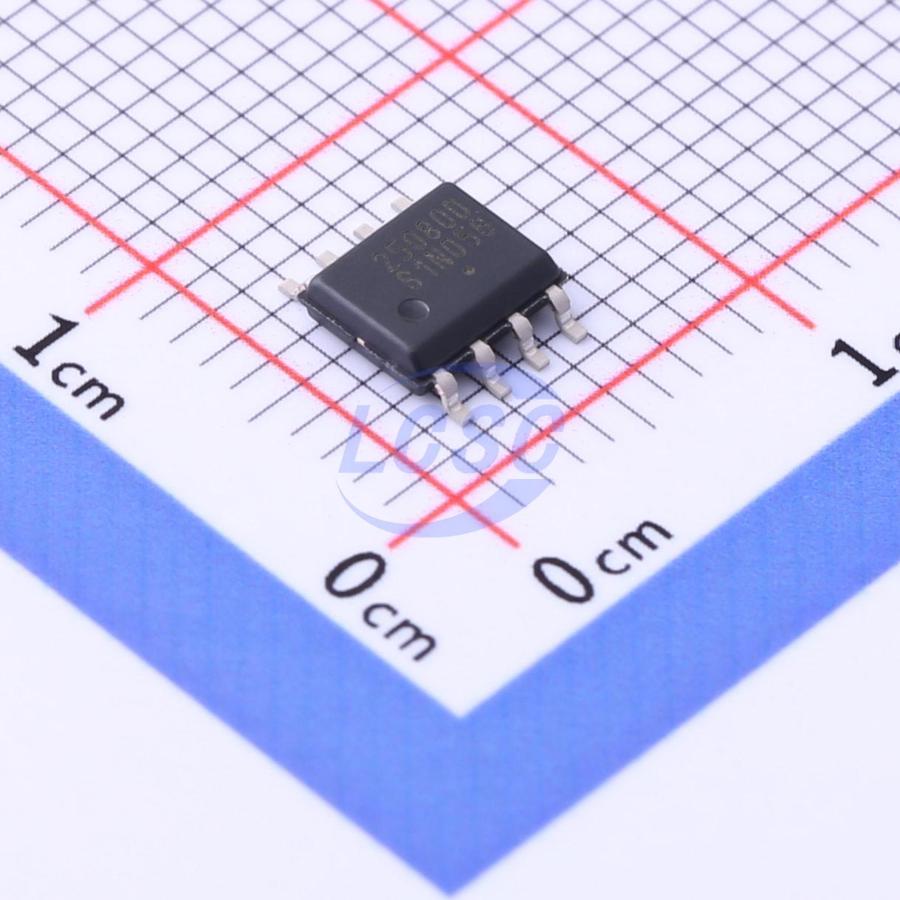

CAT25080VI-GT3
8Kbit 20MHz SPI SOIC-8 Memory RoHS
EEPROM Serial 8/16-Kb SPI
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,380 in stock
#C890368
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.57 | ₹84.57 |
| 10+ | ₹68.74 | ₹687.40 |
| 30+ | ₹60.94 | ₹1,828.20 |
| 100+ | ₹53.13 | ₹5,313.00 |
| 500+ | ₹42.28 | ₹21,140.00 |
| 1,000+ | ₹39.90 | ₹39,900.00 |
1 × ₹84.57
₹84.57
excl. GST
₹99.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAT25080VI-GT3
₹84.57 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in write enable latch (WEL);Page write protection function;Software write protection function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 20MHz
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.208 g
Overview
The CAT25080/25160 are a EEPROM Serial 8/16−Kb SPI devices internally organized as 1024x8/2048x8 bits. They feature a 32−byte page write buffer and support the Serial Peripheral Interface (SPI) protocol. The device is enabled through a Chip Select (CS (overline)) input. In addition, the required bus signals are a clock input (SCK), data input (SI) and data output (SO) lines. The HOLD input may be used to pause any serial communication with the CAT25080/25160 device. These devices feature software and hardware write protection, including partial as well as full array protection.
Key features
- 20 MHz SPI (5 V) Compatible
- 1.8 V to 5.5 V Supply Voltage Range
- SPI Modes (0,0) & (1,1)
- 32−byte Page Write Buffer
- Self−timed Write Cycle
- Hardware and Software Protection
- Block Write Protection − Protect 1/4, 1/2 or Entire EEPROM Array
- Low Power CMOS Technology
- 1,000,000 Program/Erase Cycles
- 100 Year Data Retention
- Industrial and Extended Temperature Range
- 8−lead SOIC, TSSOP and 8−pad, UDFN Packages
- These Devices are Pb−Free, Halogen Free/BFR Free, and RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT25080B-SSHL-T#C111442MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 856 | ₹59.32 · 856 in stock | View |
 | AT25080B-SSHL-B#C1349832MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 2 | ₹138.81 · 2 in stock | View |
| M95080-RMN6TP#C2061335ST · SOP-8 | ST | SOP-8 | 207 | ₹52.06 · 207 in stock | View | |
| M95080-DRMN8TP/K#C2061229ST · SO-8 | ST | SO-8 | 520 | ₹89.71 · 520 in stock | View | |
| CAV25080VE-GT3#C605355onsemi · SOIC-8 | onsemi | SOIC-8 | On request | Price on request | Quote | |
