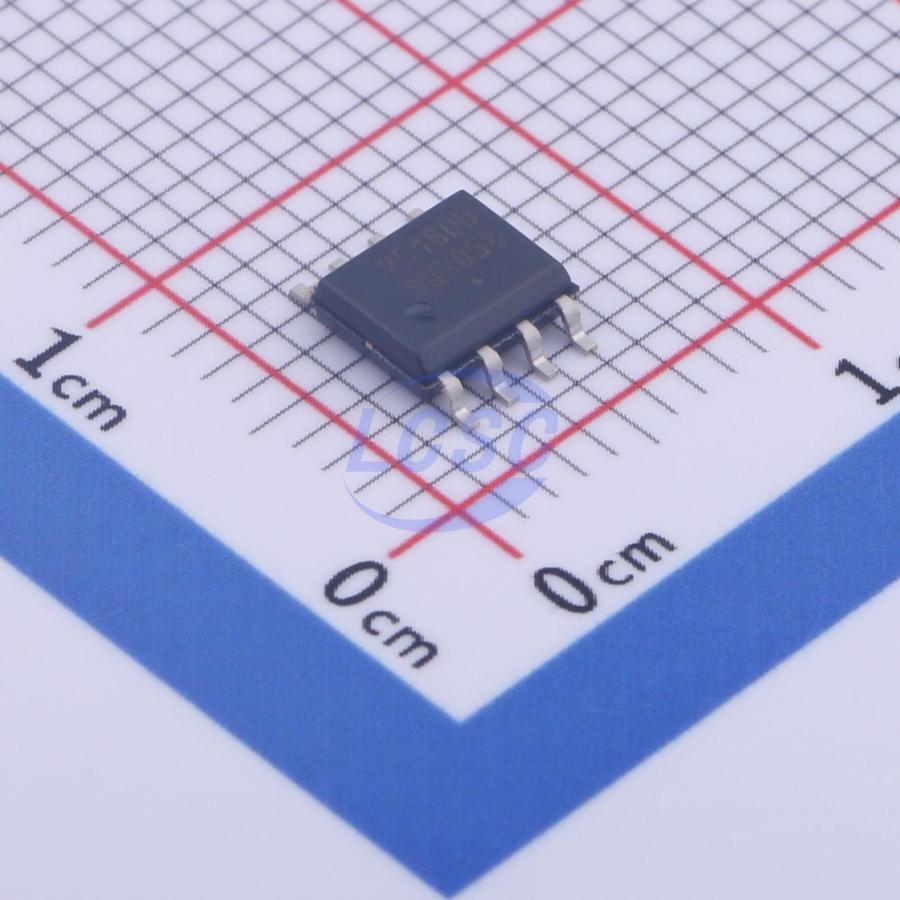

CAT25160VI-GT3
16Kbit 10MHz SPI SOIC-8 Memory RoHS
EEPROM Serial 8/16-Kb SPI
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,505 in stock
#C512876
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.12 | ₹72.12 |
| 10+ | ₹55.18 | ₹551.80 |
| 30+ | ₹48.01 | ₹1,440.30 |
| 100+ | ₹38.88 | ₹3,888.00 |
| 500+ | ₹34.76 | ₹17,380.00 |
| 1,000+ | ₹32.37 | ₹32,370.00 |
1 × ₹72.12
₹72.12
excl. GST
₹85.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAT25160VI-GT3
₹72.12 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in write enable latch (WEL)
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 10MHz
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.205 g
Overview
The CAT25080/25160 are a EEPROM Serial 8/16- Kb SPI devices internally organized as 1024x8 / 2048x8 bits. They feature a 32- byte page write buffer and support the Serial Peripheral Interface (SPI) protocol. The device is enabled through a Chip Select (CS) input. In addition, the required bus signals are a clock input (SCK), data input (SI) and data output (SO) lines. The HOLD input may be used to pause any serial communication with the CAT25080/25160 device. These devices feature software and hardware write protection, including partial as well as full array protection.
Key features
- 20 MHz SPI (5 V) Compatible
- 1.8 V to 5.5 V Supply Voltage Range
- SPI Modes (0,0) & (1,1)
- 32- byte Page Write Buffer
- Self- timed Write Cycle
- Hardware and Software Protection
- Block Write Protection - Protect 1/4, 1/2 or Entire EEPROM Array
- Low Power CMOS Technology
- 1,000,000 Program/Erase Cycles
- 100 Year Data Retention
- Industrial and Extended Temperature Range
- 8- lead SOIC, TSSOP and 8- pad, UDFN Packages
- These Devices are Pb- Free, Halogen Free/BFR Free, and RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 25AA160B-I/SN#C1350191MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 2 | ₹254.55 · 2 in stock | View |
 | 25AA160C-I/SN#C615245MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 20 | ₹171.02 · 20 in stock | View |
| CAT25160VI-G-CS#C6762705onsemi · SOIC-8 | onsemi | SOIC-8 | On request | Price on request | Quote | |
| AT25160AN-10SI-1.8#C19359034MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | On request | Price on request | Quote | |
| AT25160AN-10SU-1.8-T#C19378778MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | On request | Price on request | Quote | |
