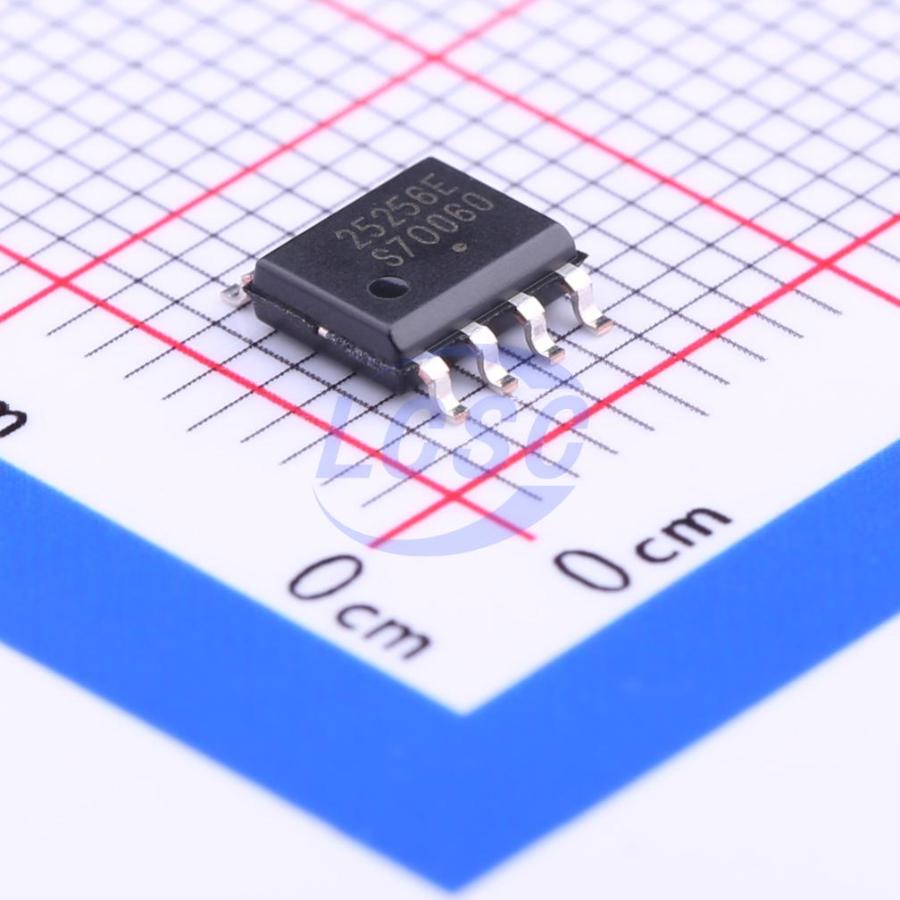

CAT25256VI-GT3

The CAT25256 is a EEPROM Serial 256−Kb SPI device internally organized as 32Kx8 bits. This features a 64−byte page write buffer and supports the Serial Peripheral Interface (SPI) protocol. The device is enabled through a Chip Select (CS (overline)) input. In addition, the required bus signals are clock input (SCK), data input (SI) and data output (SO) lines. The HOLD input may be used to pause any serial communication with the CAT25256 device. The device features software and hardware write protection, including partial as well as full array protection. On−Chip ECC (Error Correction Code) makes the device suitable for high reliability applications.

Key features

• 20 MHz (5 V) SPI Compatible
• 1.8 V to 5.5 V Supply Voltage Range
• SPI Modes (0,0) & (1,1)
• 64−byte Page Write Buffer
• Additional Identification Page with Permanent Write Protection (New Product)
• Self−timed Write Cycle
• Hardware and Software Protection
• Block Write Protection − Protect 1/4, 1/2 or Entire EEPROM Array
• Low Power CMOS Technology
• 1,000,000 Program/Erase Cycles
• 100 Year Data Retention
• Industrial and Extended Temperature Range
• 8−lead SOIC, TSSOP and 8−pad UDFN Packages
• This Device is Pb−Free, Halogen Free/BFR Free, and RoHS Compliant
