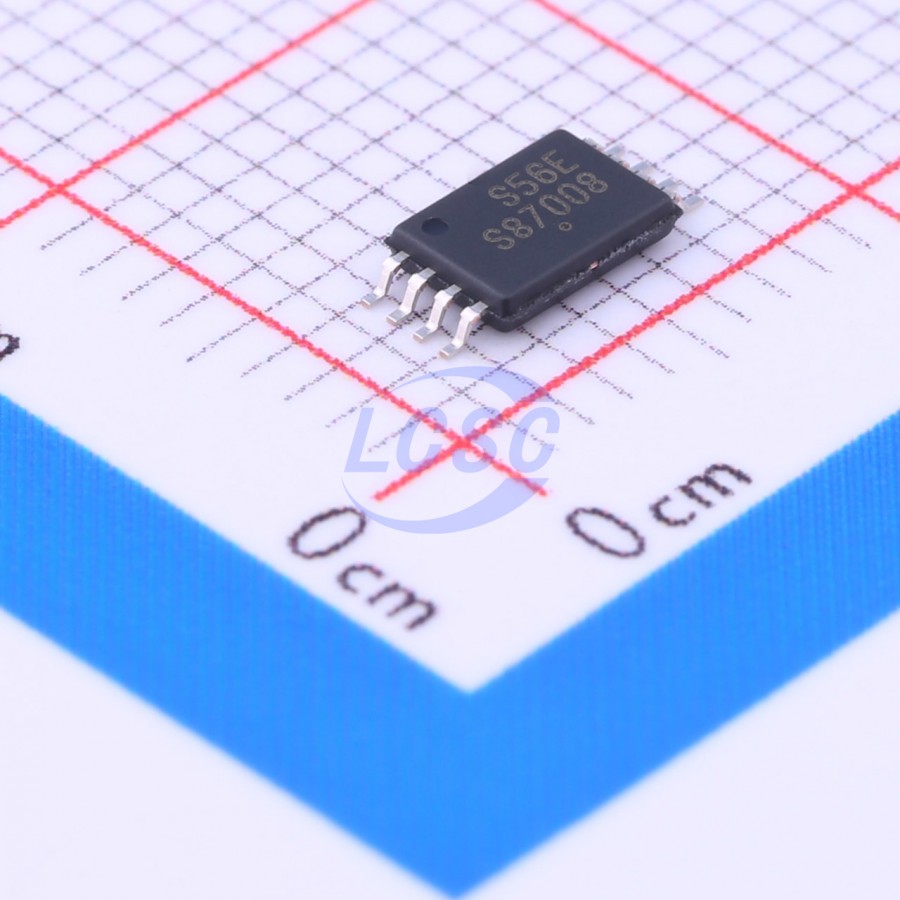

CAT25256YI-GT3
256Kbit 20MHz SPI TSSOP-8 Memory
EEPROM Serial 256-Kb SPI Device
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,941 in stock
#C233782
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.05 | ₹120.05 |
| 10+ | ₹99.03 | ₹990.30 |
| 30+ | ₹88.40 | ₹2,652.00 |
| 100+ | ₹77.79 | ₹7,779.00 |
| 500+ | ₹61.11 | ₹30,555.00 |
| 1,000+ | ₹57.85 | ₹57,850.00 |
1 × ₹120.05
₹120.05
excl. GST
₹141.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAT25256YI-GT3
₹120.05 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in write enable latch (WEL);Built-in error correction code (ECC) function
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.8V~5.5V;4mA
- Clock Frequency
- 20MHz
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.187 g
Overview
The CAT25256 is a EEPROM Serial 256−Kb SPI device internally organized as 32Kx8 bits. This features a 64−byte page write buffer and supports the Serial Peripheral Interface (SPI) protocol. The device is enabled through a Chip Select (CS (overline)) input. In addition, the required bus signals are clock input (SCK), data input (SI) and data output (SO) lines. The HOLD input may be used to pause any serial communication with the CAT25256 device. The device features software and hardware write protection, including partial as well as full array protection. On−Chip ECC (Error Correction Code) makes the device suitable for high reliability applications.
Key features
- 20 MHz (5 V) SPI Compatible
- 1.8 V to 5.5 V Supply Voltage Range
- SPI Modes (0,0) & (1,1)
- 64−byte Page Write Buffer
- Additional Identification Page with Permanent Write Protection (New Product)
- Self−timed Write Cycle
- Hardware and Software Protection
- Block Write Protection − Protect 1/4, 1/2 or Entire EEPROM Array
- Low Power CMOS Technology
- 1,000,000 Program/Erase Cycles
- 100 Year Data Retention
- Industrial and Extended Temperature Range
- 8−lead SOIC, TSSOP and 8−pad UDFN Packages
- This Device is Pb−Free, Halogen Free/BFR Free, and RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| AT25256B-XHL-T#C616790MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 464 | ₹288.14 · 464 in stock | View | |
 | BR25G256FVT-3GE2#C600859ROHM · TSSOP-8 | ROHM | TSSOP-8 | 3 | ₹210.91 · 3 in stock | View |
 | M95256-DFDW6TP#C222107ST · TSSOP-8 | ST | TSSOP-8 | 6 | ₹179.16 · 6 in stock | View |
| CAT25256YI-G#C1348914onsemi · TSSOP-8 | onsemi | TSSOP-8 | On request | Price on request | Quote | |
| CAT25256YI-GT3C#C6876426onsemi · TSSOP-8 | onsemi | TSSOP-8 | On request | Price on request | Quote | |
