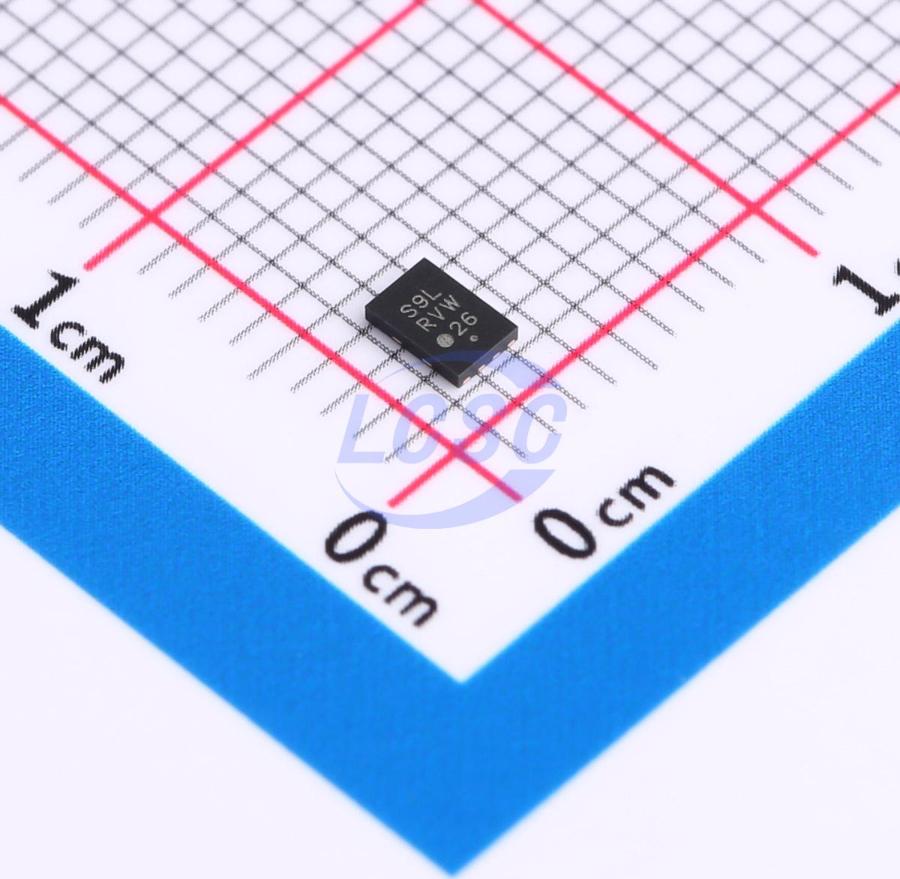

CAT25512HU5I-GT3
512Kbit 20MHz SPI UDFN-8(2x3) Memory RoHS
EEPROM Serial 512-Kb SPI
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,305 in stock
#C463684
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.94 | ₹104.94 |
| 10+ | ₹83.48 | ₹834.80 |
| 30+ | ₹72.86 | ₹2,185.80 |
| 100+ | ₹62.45 | ₹6,245.00 |
| 500+ | ₹56.16 | ₹28,080.00 |
| 1,000+ | ₹52.91 | ₹52,910.00 |
1 × ₹104.94
₹104.94
excl. GST
₹123.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAT25512HU5I-GT3
₹104.94 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function;Built-in write enable latch (WEL)
- Memory Size
- 512Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 20MHz
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The CAT25512 is a EEPROM Serial 512−Kb SPI device internally organized as 64K x 8 bits. This features a 128−byte page write buffer and supports the Serial Peripheral Interface (SPI) protocol. The device is enabled through a Chip Select (CS (overline)) input. In addition, the required bus signals are clock input (SCK), data input (SI) and data output (SO) lines. The HOLD input may be used to pause any serial communication with the CAT25512 device. The device features software and hardware write protection, including partial as well as full array protection. On−Chip ECC (Error Correction Code) makes the device suitable for high reliability applications.
Key features
- 20 MHz SPI Compatible
- 1.8 V to 5.5 V Supply Voltage Range
- SPI Modes (0,0) & (1,1)
- 128−byte Page Write Buffer
- Additional Identification Page with Permanent Write Protection
- Self−timed Write Cycle
- Hardware and Software Protection
- Block Write Protection − Protect 1/4, 1/2 or Entire EEPROM Array
- Low Power CMOS Technology
- 1,000,000 Program/Erase Cycles
- 100 Year Data Retention
- Industrial and Extended Temperature Range
- SOIC, TSSOP 8−lead, UDFN 8−pad
- This Device is Pb−Free, Halogen Free/BFR Free, and RoHS Compliant
