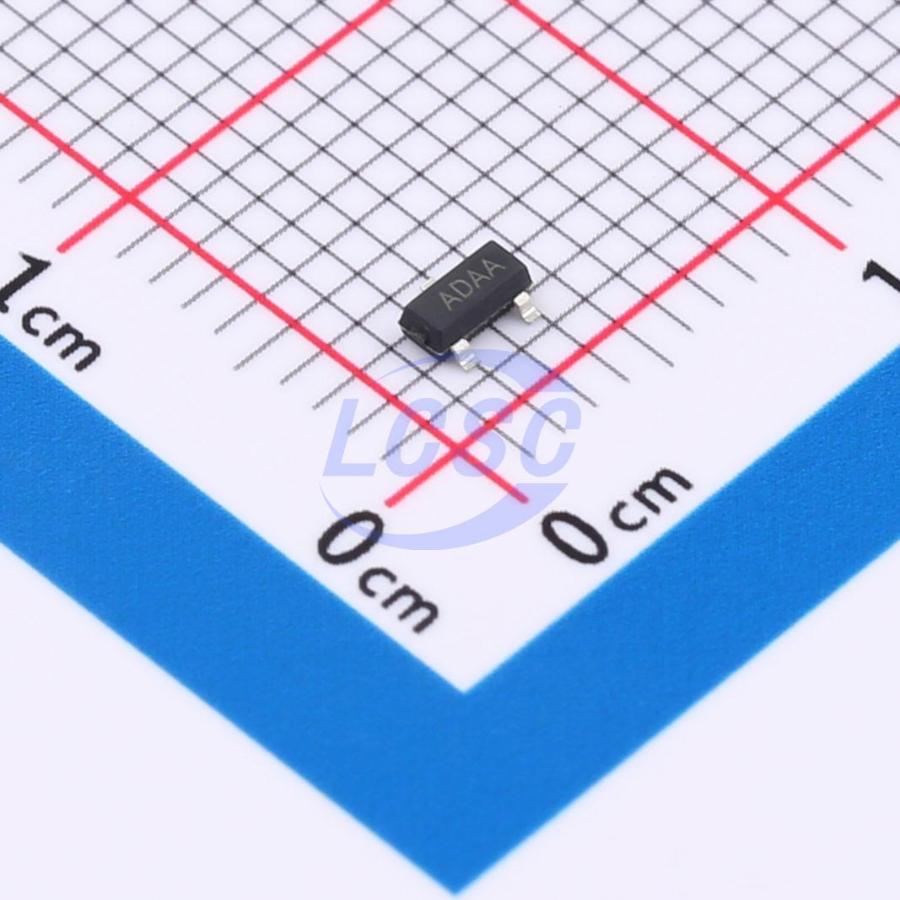

MSKSEMI

CAT809STBI-GT3-MS

Supervisor Push-Pull 1 Channel SOT-23

SOT-23RoHSActive

CAT809XTBI-GT3-MS Digital System Power Supply Voltage Monitoring Chip

Manufacturer: MSKSEMI
Manufacturer part #: CAT809STBI-GT3-MS
Store part #: C30197469
Package / case: SOT-23
Category: Supervisors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,720 in stock

#C30197469

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.15	₹81.50
100+	₹6.38	₹638.00
300+	₹5.49	₹1,647.00
1,000+	₹4.83	₹4,830.00
5,000+	₹4.37	₹21,850.00
10,000+	₹4.10	₹41,000.00

Quantity (min 10, multiples of 10)

10 × ₹8.15

₹81.50

excl. GST

₹96.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

CAT809STBI-GT3-MS

₹81.50 for 10 + GST

Specifications

Operating Temperature: -40℃~+125℃
Reset Timeout: 240ms
output type: Push-pull
Reset Active Level: Active Low
Voltage - Supply: 1V~5.5V
ChipType: Voltage monitor
Threshold Voltage: 2.93V
Number of Voltages Monitored: 1

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

CAT809xTBI-GT3-MS is a voltage detection IC designed for power supply voltage monitoring in digital systems, operating over the industrial-grade temperature range. The CAT809xTBI-GT3-MS generates a reset signal that asserts low when the system supply voltage drops below the threshold, and deasserts high after a minimum 140ms delay once the supply voltage recovers above the threshold. The CAT809xTBI-GT3-MS series supports any customer-specified detection voltage threshold. Seven standard industrial voltage monitoring thresholds are currently available, covering four supply voltage categories: 5.0V, 3.3V, 3.0V, and 2.5V. The CAT809xTBI-GT3-MS features a push-pull output stage that drives the reset output high when the monitored voltage exceeds the threshold. Fast power supply transients, glitches, and noise are filtered by the IC to prevent false triggering, while correct output logic and full performance specifications are guaranteed at supply voltages as low as 1.0V. The CAT809xTBI-GT3-MS is available in a compact 3-pin SOT-23 package.
