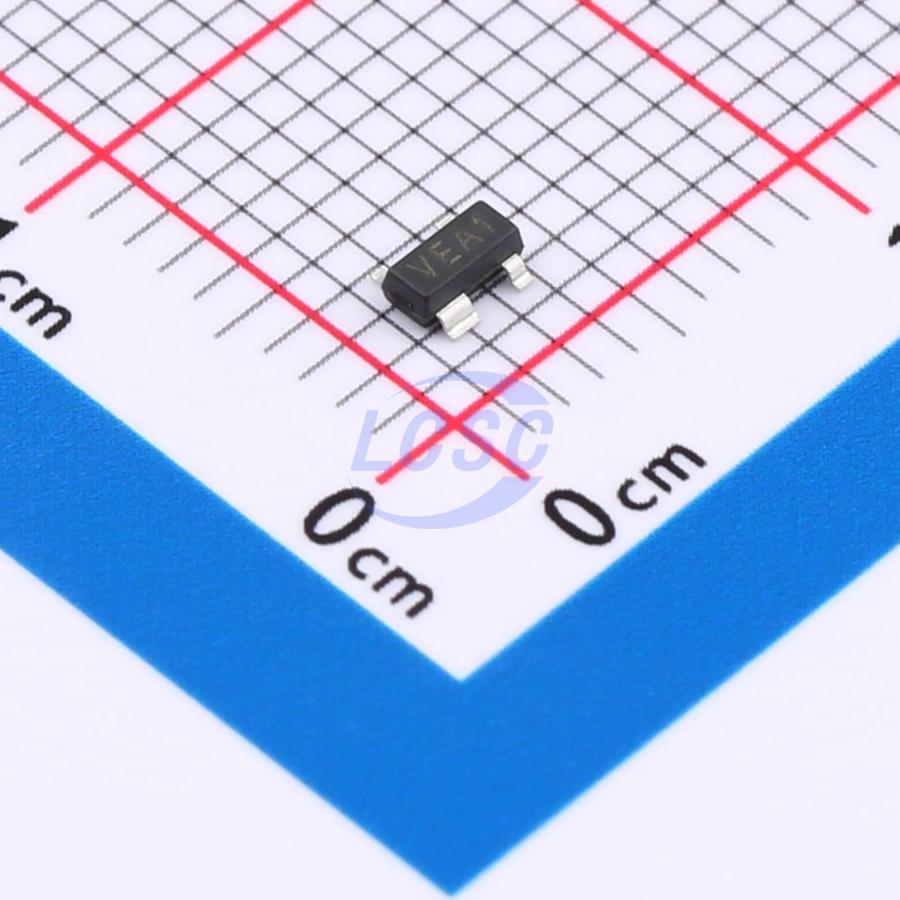

CAT811TTBI-GT3-MS
240ms Manual reset input Active Low 1V~6V 1 SOT-143 Supervisors
Universal Voltage Detector
- Manufacturer
- MSKSEMI
- Manufacturer part #
- CAT811TTBI-GT3-MS
- Store part #
- C30197474
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,105 in stock
#C30197474
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.48 | ₹77.40 |
| 50+ | ₹12.36 | ₹618.00 |
| 150+ | ₹10.80 | ₹1,620.00 |
| 500+ | ₹9.62 | ₹4,810.00 |
| 2,500+ | ₹7.38 | ₹18,450.00 |
| 5,000+ | ₹6.91 | ₹34,550.00 |
5 × ₹15.48
₹77.40
excl. GST
₹91.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAT811TTBI-GT3-MS
₹77.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 5uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
The CAT811XTBI-GT3-MS is a general-purpose voltage detector which only consume about 5uA at 3.6V, which can be widely used in all electronic system to either monitor a battery voltage or generate a power-on reset signal. It can work under the voltage ranging from 1V to 6V. CAT811XTBI-GT3-MS also provide a manual reset pin. It employs a low voltage reference, low offset comparator, timer and push-pull output stage pushed high after input voltage is greater than the internal setting level for 240ms. The CAT811XTBI-GT3-MS is available in SOT-143 package.
Applications
- Battery voltage monitor
- Power-on reset
- Set-top-box
- Voltage level trigger
- Press button debouncing
- Portable devices
Key features
- Wide operation range: 1 - 6V
- Voltage detecting level setting range: 2.3 - 5V
- SOT-143 package
- Detection delay time: 240ms
- Reset pin output kept low when input voltage < 1V
- 4KV ESD
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CAT811STBI-GT3-MS#C30197472MSKSEMI · SOT-143 | MSKSEMI | SOT-143 | 13,130 | ₹15.68 · 13,130 in stock | View |
