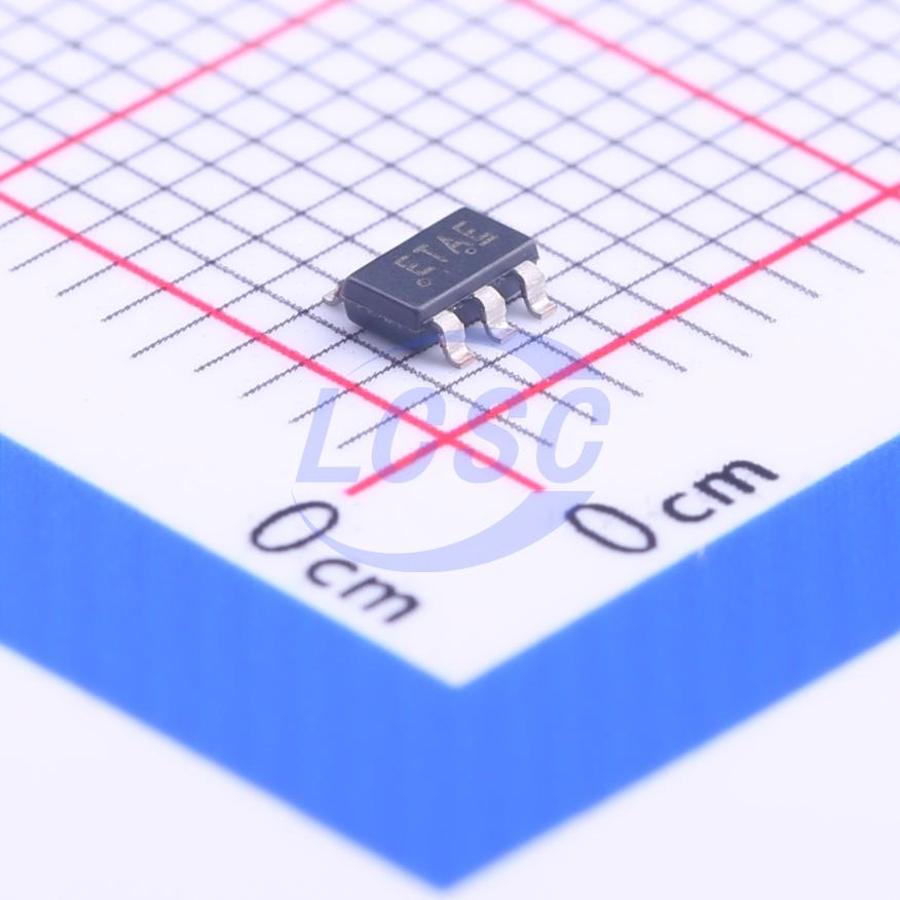

CAT823TTDI-GT3
140ms Active Low 1.2V~5.5V 1 TSOT-23-5 Supervisors RoHS
System Supervisory Voltage Reset with Watchdog and Manual Reset
- Manufacturer
- onsemi
- Manufacturer part #
- CAT823TTDI-GT3
- Store part #
- C91360
- Package / case
- TSOT-23-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,734 in stock
#C91360
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.13 | ₹82.13 |
| 10+ | ₹66.48 | ₹664.80 |
| 30+ | ₹58.66 | ₹1,759.80 |
| 100+ | ₹50.84 | ₹5,084.00 |
| 500+ | ₹43.02 | ₹21,510.00 |
| 1,000+ | ₹40.63 | ₹40,630.00 |
1 × ₹82.13
₹82.13
excl. GST
₹96.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAT823TTDI-GT3
₹82.13 for 1 + GST
Specifications
- output type
- Push-pull
- Reset Timeout
- 140ms
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 4uA
- Voltage - Supply
- 1.2V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
The CAT823 and CAT824 provide basic reset and monitoring functions for the electronic systems. Each device monitors the system voltage and maintains a reset output until that voltage reaches the device’s specified trip value and then maintains the reset output active condition until the device’s internal timer, after a minimum timer of 140 ms, to allow the systems power supply to stabilize. The CAT823 and CAT824 also have a watchdog input which can be used to monitor a system signal and cause a reset to be issued if the signal fails to change state prior to a timeout condition. The CAT823 also provides a manual reset input which can be used to initiate reset if pulled low. This input can be directly attached to a push−button or a processor signal.
Applications
- Microprocessor and Microcontroller Based Systems
- Intelligent Instruments
- Control Systems
- Critical μP Monitors
- Portable Equipment
Key features
- Automatically Restarts Microprocessor after Power Failure
- Monitors Pushbutton for External Override
- Accurate Under Voltage System Monitoring
- Brownout Detection System Reset for use with 3.0, 3.3, and 5.0 V Systems
- Pin and Function Compatible with the MAX823/24 Products
- Operating Range from -40°C to +85°C
- Available in TSOT−23 5−lead Package
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
