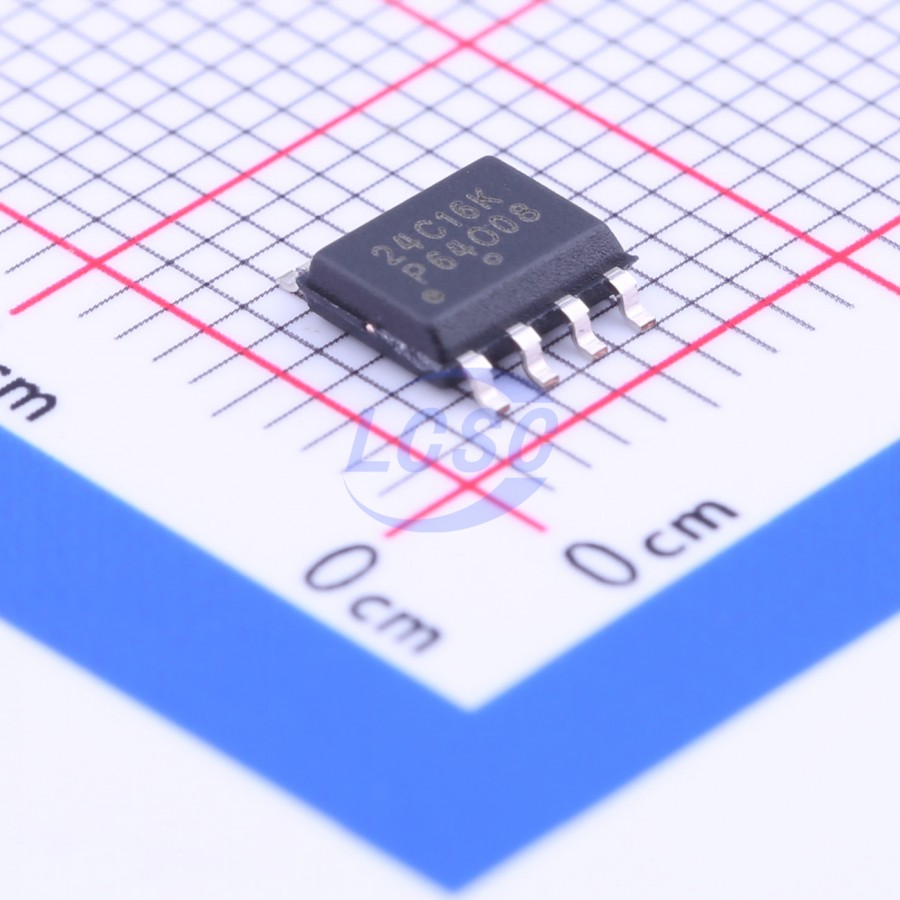

CAV24C16WE-GT3

The CAV24C02/04/08/16 are 2−Kb, 4−Kb, 8−Kb and 16−Kb respectively CMOS Serial EEPROM devices organized internally as 16/32/64 and 128 pages respectively of 16 bytes each. All devices support both the Standard (100 kHz) as well as Fast (400 kHz) I²C protocol. Data is written by providing a starting address, then loading 1 to 16 contiguous bytes into a Page Write Buffer, and then writing all data to non−volatile memory in one internal write cycle. Data is read by providing a starting address and then shifting out data serially while automatically incrementing the internal address count. External address pins make it possible to address up to eight CAV24C02, four CAV24C04, two CAV24C08 and one CAV24C16 device on the same bus.

Key features

• Automotive Temperature Grade 1 (-40℃ to +125℃)
• Supports Standard and Fast I²C Protocol
• 2.5 V to 5.5 V Supply Voltage Range
• 16−Byte Page Write Buffer
• Hardware Write Protection for Entire Memory
• CAV Prefix for Automotive and Other Applications Requiring Site and Change Control
• Schmitt Triggers and Noise Suppression Filters on I²C Bus Inputs (SCL and SDA)
• Low power CMOS Technology
• 1,000,000 Program/Erase Cycles
• 100 Year Data Retention
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
