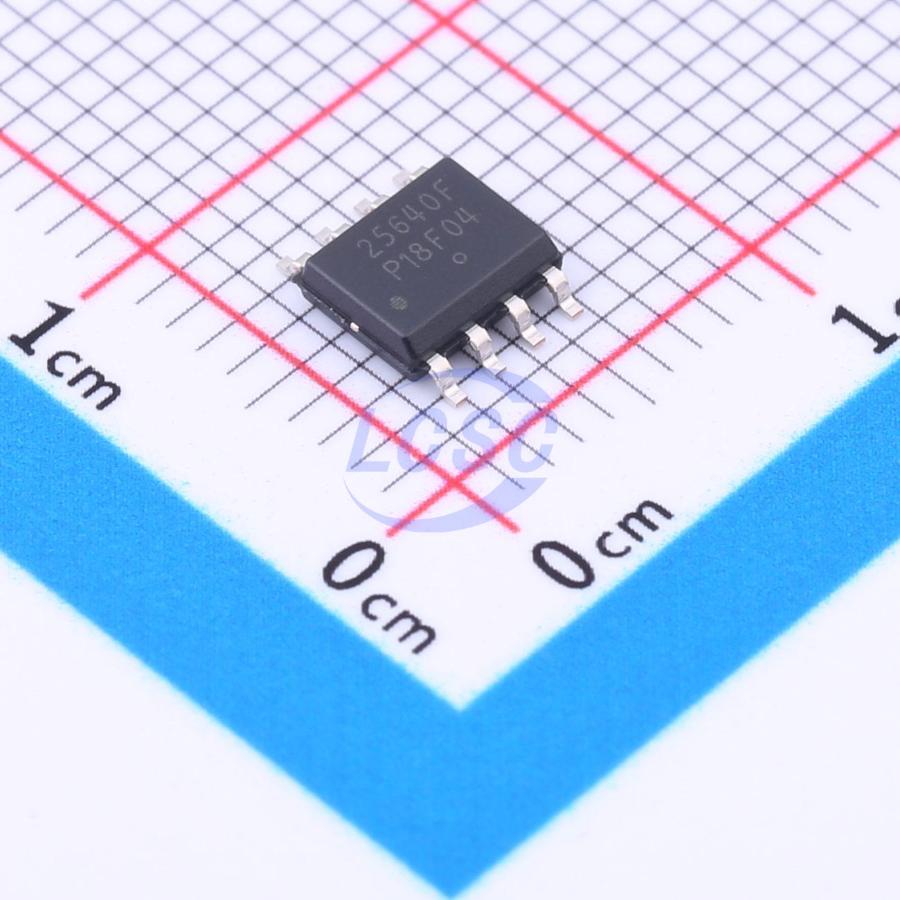

CAV25640VE-GT3
64Kbit 20MHz SPI SOIC-8 Memory RoHS
EEPROM Serial 64-Kb SPI
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,773 in stock
#C512880
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.64 | ₹103.64 |
| 10+ | ₹83.44 | ₹834.40 |
| 30+ | ₹73.44 | ₹2,203.20 |
| 100+ | ₹63.45 | ₹6,345.00 |
| 500+ | ₹57.37 | ₹28,685.00 |
| 1,000+ | ₹54.32 | ₹54,320.00 |
1 × ₹103.64
₹103.64
excl. GST
₹122.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAV25640VE-GT3
₹103.64 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in write enable latch (WEL);Software write protection function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 20MHz
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
The CAT25640 is a EEPROM Serial 64−Kb SPI device internally organized as 8Kx8 bits. This features a 64−byte page write buffer and supports the Serial Peripheral Interface (SPI) protocol. The device is enabled through a Chip Select CS(overline) input. In addition, the required bus signals are clock input (SCK), data input (SI) and data output (SO) lines. The HOLD input may be used to pause any serial communication with the CAT25640 device. The device features software and hardware write protection, including partial as well as full array protection.
Key features
- 20 MHz (5 V) SPI Compatible
- 1.8 V to 5.5 V Supply Voltage Range
- SPI Modes (0,0) & (1,1)
- 64−byte Page Write Buffer
- Self−timed Write Cycle
- Hardware and Software Protection
- Block Write Protection − Protect 1/4, 1/2 or Entire EEPROM Array
- Low Power CMOS Technology
- 1,000,000 Program/Erase Cycles
- 100 Year Data Retention
- Industrial and Extended Temperature Range
- SOIC, TSSOP 8−lead and UDFN 8−pad Packages
- This Device is Pb−Free, Halogen Free/BFR Free, and RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CAT25640VI-GT3#C153776onsemi · SOIC-8 | onsemi | SOIC-8 | 495 | ₹49.26 · 495 in stock | View |
 | BR25G640FJ-3GE2#C2061404ROHM · SOIC-8 | ROHM | SOIC-8 | 95 | ₹104.23 · 95 in stock | View |
 | AT25640B-SSHL-T#C111547MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 3,390 | ₹102.35 · 3,390 in stock | View |
 | AT25640B-SSHL-B#C615493MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 101 | ₹210.98 · 101 in stock | View |
 | M95640-RMN6TP#C283461ST · SOIC-8 | ST | SOIC-8 | 1,660 | ₹52.42 · 1,660 in stock | View |
