Corebai Microelectronics

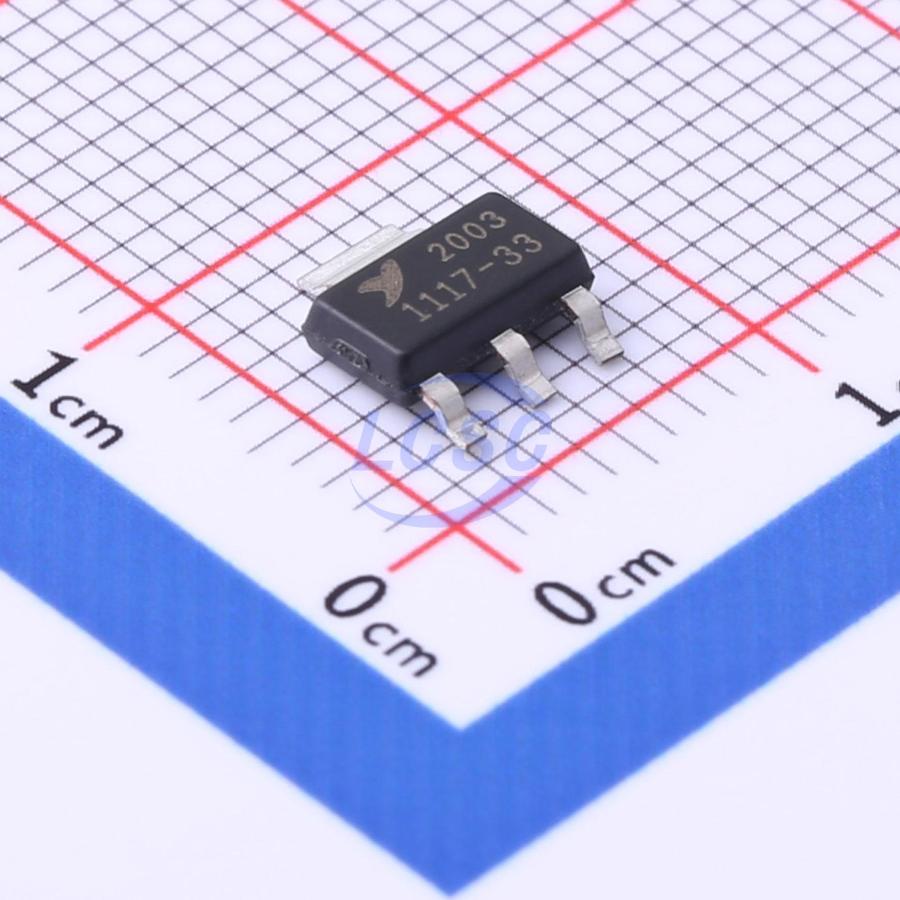

CBM1117C-3.3

3.3V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-223-3RoHSActive

Low Dropout Voltage Regulator

Manufacturer: Corebai Microelectronics
Manufacturer part #: CBM1117C-3.3
Store part #: C918916
Package / case: SOT-223-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,680 in stock

#C918916

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹35.71	₹178.55
50+	₹28.52	₹1,426.00
150+	₹25.44	₹3,816.00
500+	₹21.60	₹10,800.00
2,500+	₹19.55	₹48,875.00
5,000+	₹18.54	₹92,700.00

Quantity (min 5, multiples of 5)

5 × ₹35.71

₹178.55

excl. GST

₹210.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CBM1117C-3.3

₹178.55 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 5uA
Output Configuration: Positive
Output Current: 1A
Operating Voltage: 12V
Features: Over Current Protection;Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.328 g

Overview

The CBM1117C is a series of low dropout voltage regulators which can provide up to 1A of output current. The CBM1117C is available in eight fixed voltage, 1.2, 1.25, 1.5, 1.8, 2.5, 2.85, 3.3 and 5.0V. Additionally it is also available in adjustable version. On chip precision trimming adjusts the reference/ output voltage to within ± 2%. Current limit is also trimmed to ensure specified output current and controlled short-circuit current. The CBM1117C series is available in SOT-223, TO-252, TO-263 packages. A minimum of 10uF tantalum capacitor is required at the output to improve the transient response and Stability.

Applications

Post Regulator for switching DC/DC Converter
High Efficiency Linear Regulator
Battery Chargers
PC Add on Card
Motherboard clock supplies
LCD Monitor
Set-top Box

Key features

Dropout Voltage is 1.2V(Typ)
Reference/Output Voltage Trimmed to ± 2%
Maximum Input Voltage is 15V
Adjustable Output Voltage or Fixed 1.2V, 1.25V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5V
Line Regulation typically at 0.2% max
Load Regulation typically at 0.4% max
Current Limiting and Thermal Protection
Standard 3-Pin Power Packages
Operating Junction Temperature Range -40 to +125°C (for CBM1117C-1.2V is 0 to +150°C)
