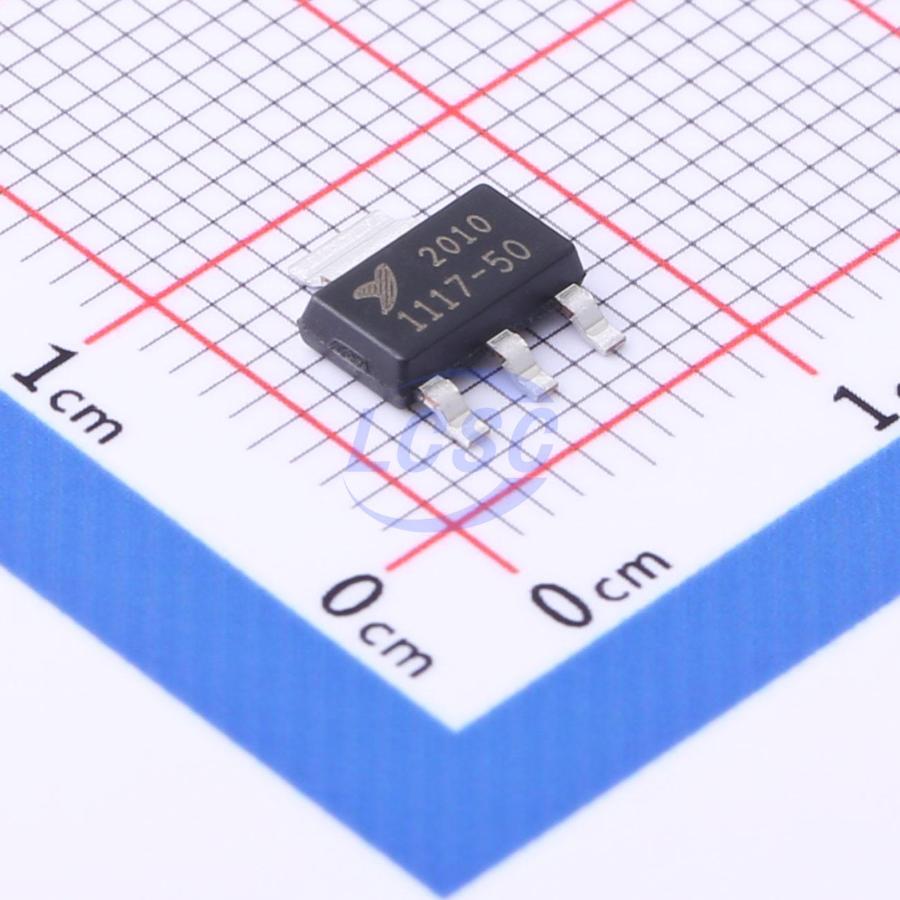

Corebai Microelectronics

CBM1117C-5.0

Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3

SOT-223-3RoHSActive

IC REG LINEAR 5V 1A SOT-223-3

Manufacturer: Corebai Microelectronics
Manufacturer part #: CBM1117C-5.0
Store part #: C918918
Package / case: SOT-223-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,495 in stock

#C918918

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹42.20	₹211.00
50+	₹33.45	₹1,672.50
150+	₹29.69	₹4,453.50
500+	₹25.00	₹12,500.00
2,500+	₹21.51	₹53,775.00
5,000+	₹20.27	₹1,01,350.00

Quantity (min 5, multiples of 5)

5 × ₹42.20

₹211.00

excl. GST

₹248.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CBM1117C-5.0

₹211.00 for 5 + GST

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 5uA
Output Configuration: Positive
Output Current: 1A
Operating Voltage: 15V
Features: Over Current Protection;Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.329 g

Overview

CBM1117 is a series of low dropout regulators capable of providing output current up to 0.8A. CBM1117 offers fixed output voltages of 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V, as well as an adjustable voltage option. On-chip trimming precisely adjusts the reference and output voltage to within ±2%, while current limiting is ensured to be set at the specified output current with controlled short-circuit current. The CBM1117 series is available in SOT-223 and TO-252 packages. A minimum 10uF tantalum capacitor at the output is required to improve transient response and stability.

Applications

Post-regulation switching DC converters
High-efficiency linear regulators
Battery chargers
PC add-in cards
Motherboard clock drivers
LCD monitors
Set-top boxes

Key features

Dropout voltage 1.39V (typical)
Reference and output voltage trimming ±2%
Maximum input voltage 15V
Adjustable or fixed output voltage; fixed voltages: ADJ 1.5V, 1.8V, 2.5V, 3.3V, 5V
Typical load regulation up to 0.4%
Current limiting and thermal protection
Standard 3-pin power package
Operating temperature range: -40 to +125°C
