Corebai Microelectronics

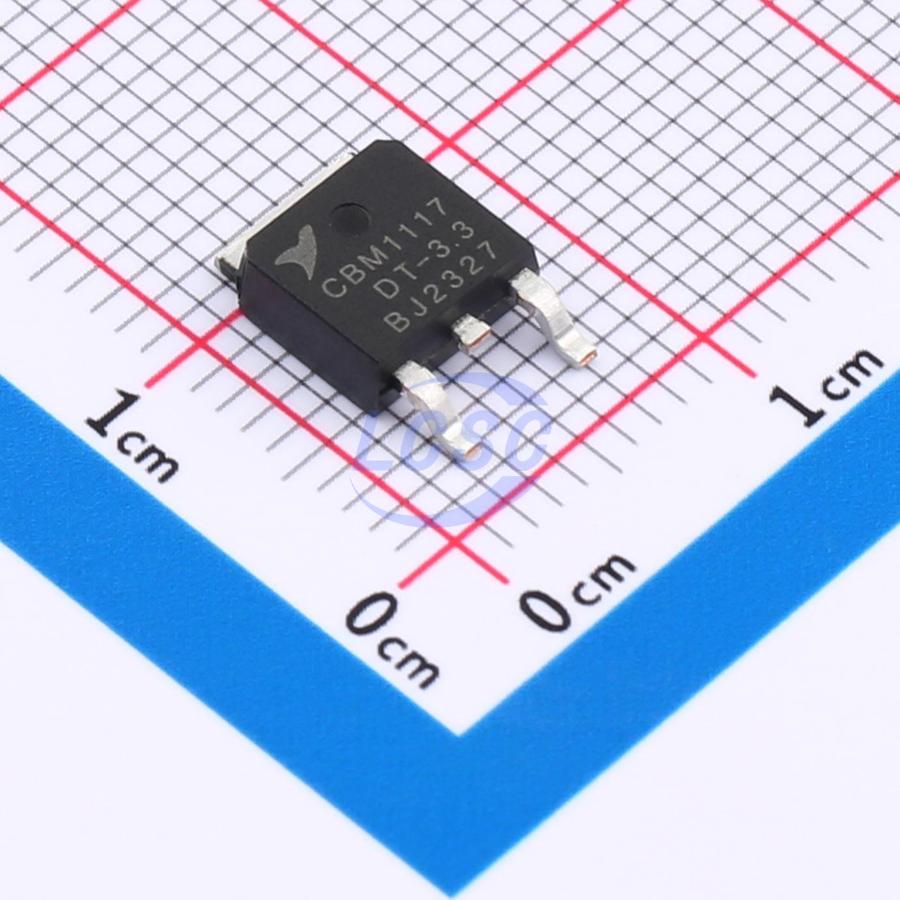

CBM1117DT-3.3

3.3V Positive Fixed TO-252-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

TO-252-2RoHSActive

IC REG LINEAR 3.3V 1A TO-252-2

Manufacturer: Corebai Microelectronics
Manufacturer part #: CBM1117DT-3.3
Store part #: C19818841
Package / case: TO-252-2
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,815 in stock

#C19818841

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹28.81	₹144.05
50+	₹25.16	₹1,258.00
150+	₹23.60	₹3,540.00
500+	₹21.64	₹10,820.00
2,500+	₹20.78	₹51,950.00
5,000+	₹20.26	₹1,01,300.00

Quantity (min 5, multiples of 5)

5 × ₹28.81

₹144.05

excl. GST

₹169.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CBM1117DT-3.3

₹144.05 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 5.2mA
Output Configuration: Positive
Output Current: 1A
Operating Voltage: 12V
Output Type: Fixed
Features: Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.367 g

Overview

CBM1117 is a series of low dropout regulators capable of delivering output currents up to 1A. It offers six fixed output voltages — 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V — as well as an adjustable voltage option. On-chip trimming precisely adjusts the reference and output voltage to within ±2%, and current limiting is guaranteed to be set to the specified output current with a controlled short-circuit current. The CBM1117 series is available in SOT-223 and TO-252 packages. A minimum 10uF tantalum capacitor at the output is required to improve transient response and stability.

Applications

Post-regulator switching DC converters, high-efficiency linear regulators, battery chargers, PC add-in cards, motherboard clock drivers

Key features

Dropout voltage 1.2V (typical)
Reference/output voltage trimming ±2%
Maximum input voltage 15V
Adjustable or fixed output voltage; fixed voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V
Line regulation 0.2% maximum (typical)
Load regulation 0.4% maximum (typical)
Current limiting and thermal protection
Standard 3-pin power package
Operating temperature range: -40 to +125°C
