Corebai MicroelectronicsDatasheet (PDF)

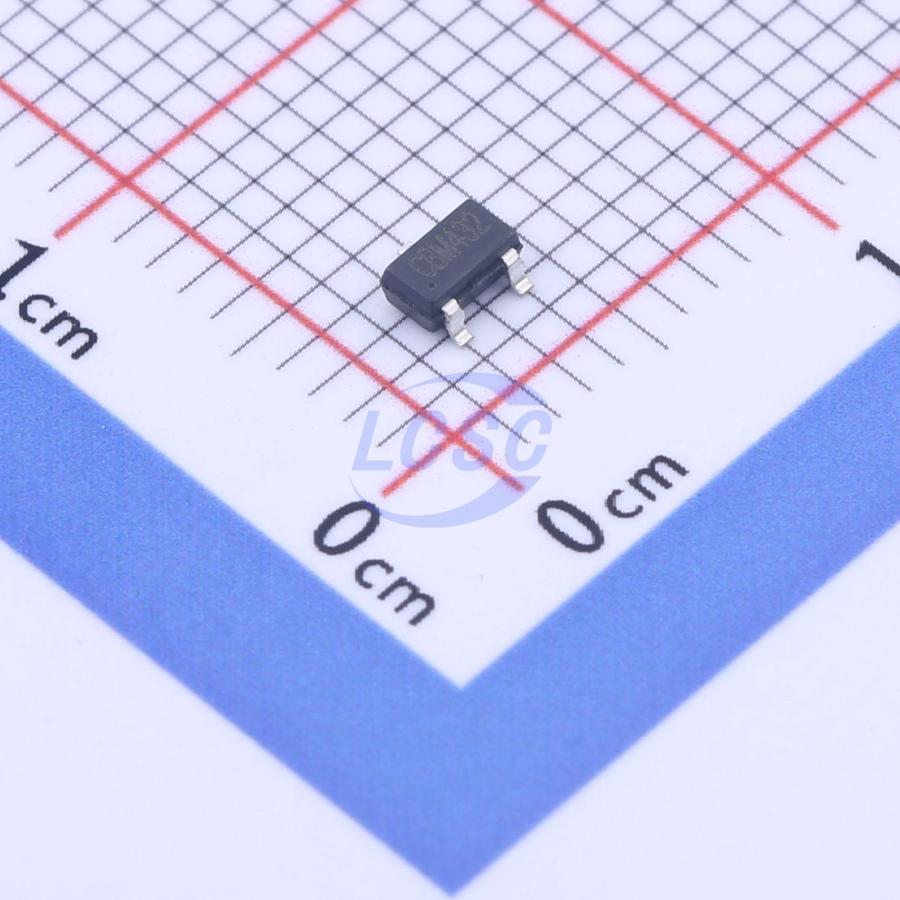

CBM432AST23
1.24V~18V Positive Adjustable SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
- Manufacturer
- Corebai Microelectronics
- Manufacturer part #
- CBM432AST23
- Store part #
- C2976101
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,700 in stock
#C2976101
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹24.81 | ₹24.81 |
| 10+ | ₹19.77 | ₹197.70 |
| 30+ | ₹17.61 | ₹528.30 |
| 100+ | ₹14.92 | ₹1,492.00 |
| 500+ | ₹13.72 | ₹6,860.00 |
| 1,000+ | ₹12.99 | ₹12,990.00 |
1 × ₹24.81
₹24.81
excl. GST
₹29.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CBM432AST23
₹24.81 for 1 + GST
Specifications
- Output Voltage
- 1.24V~18V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 100mA
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
CBM432 is a series of three-terminal adjustable regulators with guaranteed thermal stability over the applicable temperature range. The output voltage can be set to any value between Vref (approximately 1.24V) and 18V using two external resistors. These devices feature a typical dynamic output impedance of 0.2Ω. The active output circuit provides a very sharp turn-on characteristic, making these devices an excellent replacement for Zener diodes in many applications. The CBM432 operates over a temperature range of -40°C to +125°C.
Applications
- PC motherboard
- Voltage adapter
- Switching power supply
- Charger
Key features
- 1.24V precision reference voltage
- 0.5% guaranteed reference voltage tolerance
- Sink current capability, 80μA to 100mA
- Fast turn-on
- Adjustable output voltage, Vo = VREF to 18V
- 0.2Ω typical output impedance
- SOT-23, SOT-89 packages
