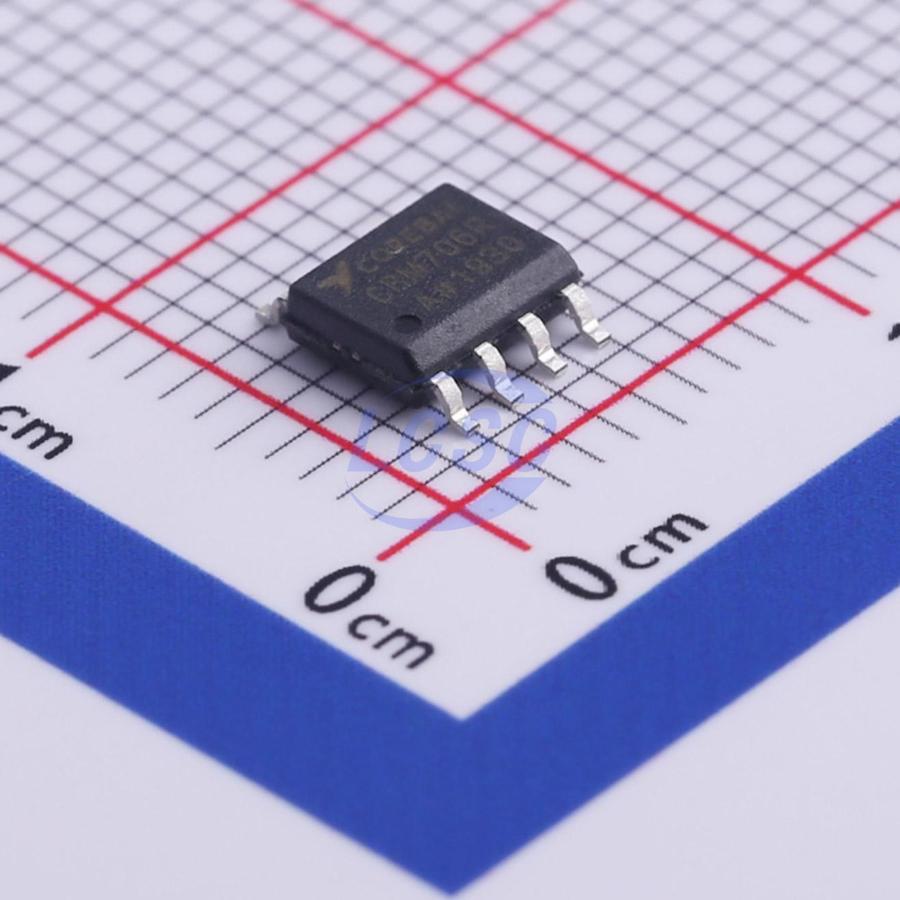

CBM706RAS8
200ms Active Low 1V~5.5V 1 SOP-8 Supervisors
Precision supply voltage monitor
- Manufacturer
- Corebai Microelectronics
- Manufacturer part #
- CBM706RAS8
- Store part #
- C476236
- Package / case
- SOP-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,695 in stock
#C476236
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.51 | ₹177.55 |
| 50+ | ₹27.71 | ₹1,385.50 |
| 150+ | ₹24.38 | ₹3,657.00 |
| 500+ | ₹20.21 | ₹10,105.00 |
| 2,500+ | ₹19.13 | ₹47,825.00 |
| 5,000+ | ₹18.02 | ₹90,100.00 |
5 × ₹35.51
₹177.55
excl. GST
₹209.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CBM706RAS8
₹177.55 for 5 + GST
Specifications
- Reset Timeout
- 200ms
- Operating Temperature
- -40℃~+125℃@(TA)
- output type
- Open-drain
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 100uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.26 g
Overview
The CBM706P/ CBM706R/ CBM706S/ CBM706T and the CBM708R/ CBM708S / CBM708T microprocessor supervisory circuits are suitable for monitoring either 3V or 3.3V power supplies. The CBM706P/ CBM706R/ CBM706S/ CBM706T provide power supply monitoring circuitry that generate a reset output during power-up, power-down, and brownout conditions. The reset output remains operational with VCC as low as 1V. Independent watchdog monitoring circuitry is also provided. This activates if the watchdog input does not toggle within 1.6 sec. In addition, there is a 1.25V threshold detector for a power fail warning, low battery detection, or to monitor an additional power supply. An active low debounced MR input is also included. The CBM706R, CBM706S, and CBM706T are identical except for the reset threshold monitor levels, which are 2.63V, 2.93V, and 3.08V, respectively. The CBM706P is identical to the CBM706R in that the reset threshold is 2.63V. It differs only in that it has an active high reset output. The CBM708R/ CBM708S/ CBM708T provide similar functionality as the CBM706R/CBM706S/CBM706T and only differ in that a watchdog timer function is not available. Instead, an active high reset output (RESET) is provided in addition to the active low (RESET) output. All devices are available in narrow 8-lead PDIP and 8-lead SOIC packages.
Applications
- Microprocessor systems
- Computers
- Controllers
- Intelligent instruments
- Critical microprocessor monitoring
- Battery operated systems
- Portable instruments
Key features
- Precision supply voltage monitor 2.63 V (CBM706P, CBM706R, CBM708R) 2.93 V (CBM706S, CBM708S) 3.08 V (CBM706T, CBM708T)
- 100μA quiescent current
- 200ms reset pulse width
- Debounced manual reset input (MR)
- Independent watchdog timer 1.6 sec timeout (CBM706P, CBM706R, CBM706S, CBM706T)
- Voltage monitor for power fail or low battery warning
- Guaranteed RESET valid with VCC = 1V
- Superior upgrade for ADM706P/R/S/T, ADM708R/S/T
