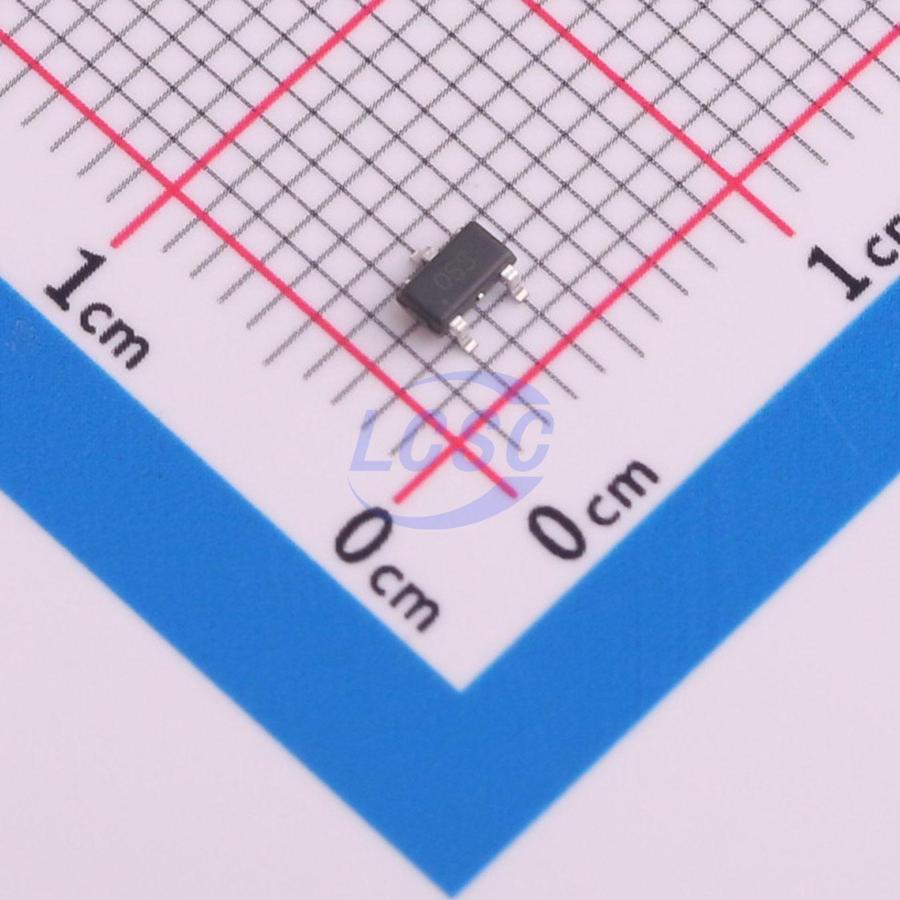

CBM810SST3
Supervisor Push-Pull 1 Channel SOT23-3
Power supply voltage monitoring
- Manufacturer
- Corebai Microelectronics
- Manufacturer part #
- CBM810SST3
- Store part #
- C5373247
- Package / case
- SOT23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,755 in stock
#C5373247
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.78 | ₹73.90 |
| 50+ | ₹12.97 | ₹648.50 |
| 150+ | ₹12.18 | ₹1,827.00 |
| 500+ | ₹11.22 | ₹5,610.00 |
| 3,000+ | ₹10.78 | ₹32,340.00 |
| 6,000+ | ₹10.53 | ₹63,180.00 |
5 × ₹14.78
₹73.90
excl. GST
₹87.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CBM810SST3
₹73.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active High
- standby current
- 17uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The CBM803X/CBM809X/CBM810X series monitors power supply voltages in microprocessor systems, providing reset output during power-up and power-down conditions. During power-up, an internal timer holds reset for 240 ms, keeping the microprocessor in reset state until conditions stabilize. Reset output remains operational when VCC drops as low as 1 V. The CBM803X and CBM809X provide an active-low reset signal (RESET) output, while the CBM810X provides an active-high signal (RESET) output. The CBM809X and CBM810X feature push-pull outputs, whereas the CBM803X has an open-drain output requiring an external pull-up resistor. Seven threshold voltage options are available to accommodate monitoring of various supply voltages. The CBM803X/CBM809X/CBM810X draws 17μA quiescent current, suited for low-power portable devices. The CBM803X is available in SC70 package; the CBM809X/CBM810X are available in SOT-23 and SC70 packages.
Applications
- Microprocessor systems
- Calculators
- Controllers
- Intelligent instruments
Key features
- Precise power supply voltage monitoring: 2.32 V (CBM803Z/CBM809Z/CBM810Z), 2.63 V (CBM803R/CBM809R/CBM810R), 2.93 V (CBM803S/CBM809S/CBM810S), 3.08 V (CBM803T/CBM809T/CBM810T), 4.00 V (CBM803J/CBM809J/CBM810J), 4.38 V (CBM803M/CBM809M/CBM810M), 4.63 V (CBM803L/CBM809L/CBM810L)
- 17μA quiescent current
- Reset asserted guaranteed at VCC = 1V
- Minimum power-on reset timeout: 140ms
- Open-drain RESET output (CBM803X)
- Push-pull RESET output (CBM809X)
- Push-pull RESET output (CBM810X)
