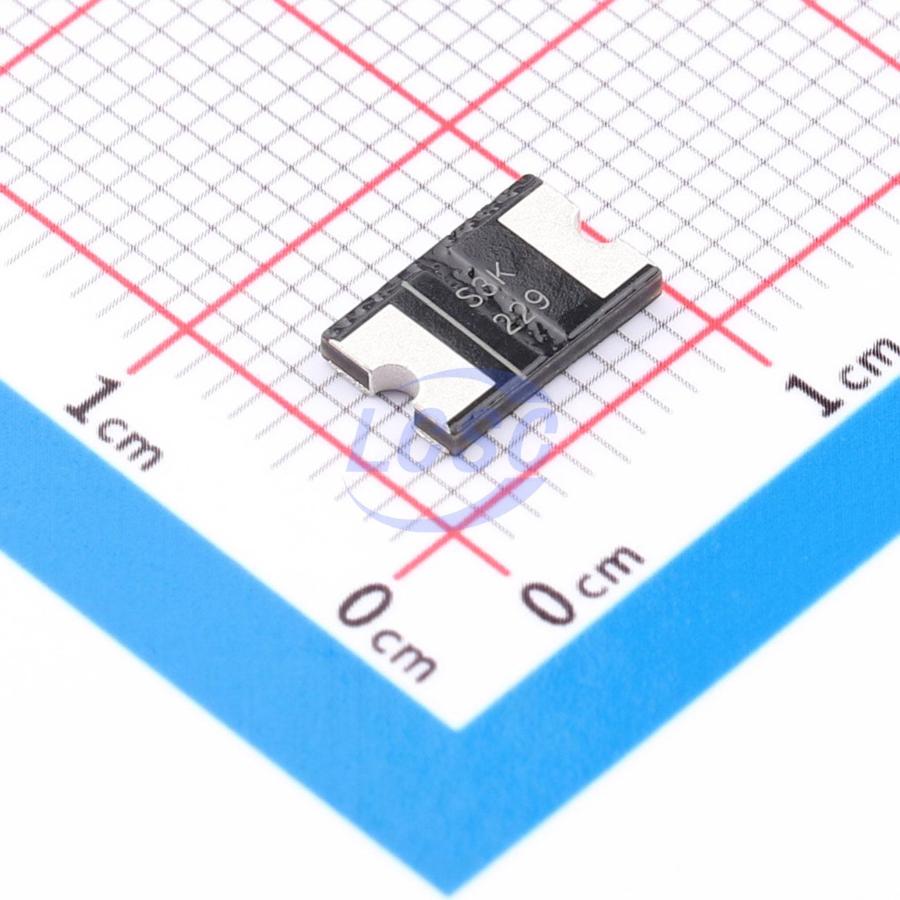

CD214C-S3K
1 Independent 800V 1V@3A 3A SMD Single Diodes RoHS
- Manufacturer
- BOURNS
- Manufacturer part #
- CD214C-S3K
- Store part #
- C17628551
- Package / case
- SMD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
63 in stock
#C17628551
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.83 | ₹129.83 |
| 10+ | ₹127.68 | ₹1,276.80 |
| 30+ | ₹126.39 | ₹3,791.70 |
| 100+ | ₹125.10 | ₹12,510.00 |
1 × ₹129.83
₹129.83
excl. GST
₹153.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CD214C-S3K
₹129.83 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 800V
- Voltage - Forward(Vf@If)
- 1V@3A
- Reverse Leakage Current (Ir)
- 5uA
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.306 g
Overview
Manufacturers of portable communications, computing, and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers glass passivated rectifiers for rectification applications in a compact chip package compatible with DO-214AB (SMC) dimensions. The glass passivated rectifier diodes provide 3A forward current with repetitive peak reverse voltage options ranging from 200V to 1000V.
Applications
- Switching power supplies, portable device batteries, high-frequency rectification, DC/DC converters, telecommunications
Key features
- RoHS compliant
- Low profile
- Low power loss, high efficiency
- UL 94V-0 rated
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CD214C-S3M#C17402738BOURNS · SMD | BOURNS | SMD | On request | ₹43.75 · 0 in stock | View | |
| CD214B-S3K#C17559003BOURNS · SMD | BOURNS | SMD | On request | ₹35.36 · 0 in stock | View | |
