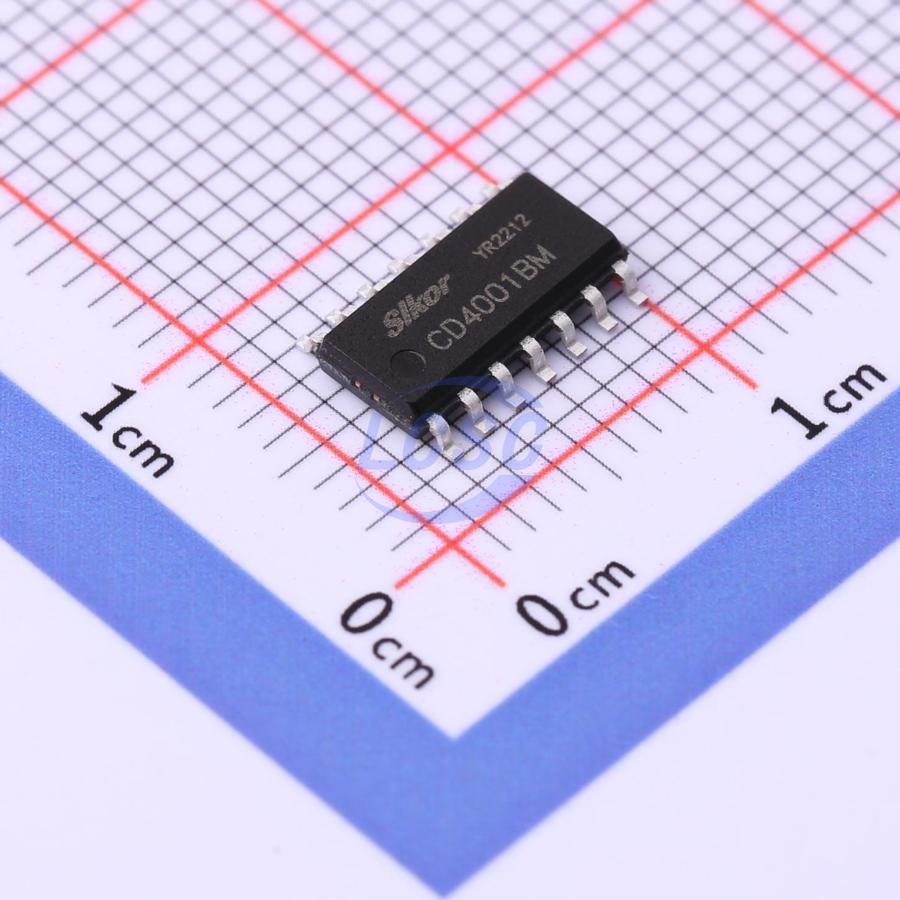

CD4001BM
NOR Gate IC 4 Channel SOP-14
SOP-14RoHSActive
Quad 2-Input NOR Gates
- Manufacturer
- Slkor
- Manufacturer part #
- CD4001BM
- Store part #
- C3041276
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,425 in stock
#C3041276
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.47 | ₹107.35 |
| 50+ | ₹16.97 | ₹848.50 |
| 150+ | ₹15.06 | ₹2,259.00 |
| 500+ | ₹12.65 | ₹6,325.00 |
| 2,500+ | ₹11.58 | ₹28,950.00 |
| 5,000+ | ₹10.94 | ₹54,700.00 |
5 × ₹21.47
₹107.35
excl. GST
₹126.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4001BM
₹107.35 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- CD4
- Voltage - Supply
- 3V~15V
- Propagation Delay
- 70ns@15V,50pF
- Output Logic Level - Low
- 50mV
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Current - Output High(IOH)
- 4.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.29 g
Overview
These quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N-channel and P-channel enhancement mode transistors. They feature equal source and sink current capability and comply with standard B-series output drive. The device also incorporates buffered outputs, which improve transfer characteristics by providing very high gain. All inputs are protected against electrostatic discharge to VDD and VSS by diodes.
Key features
- Drives 2 74L-compatible or 1 74LS load in low-power TTL fan-out
- 5V–10V–15V reference voltage
- Standard symmetrical output characteristics
- Maximum input leakage of 1mA above 15V over full temperature range
