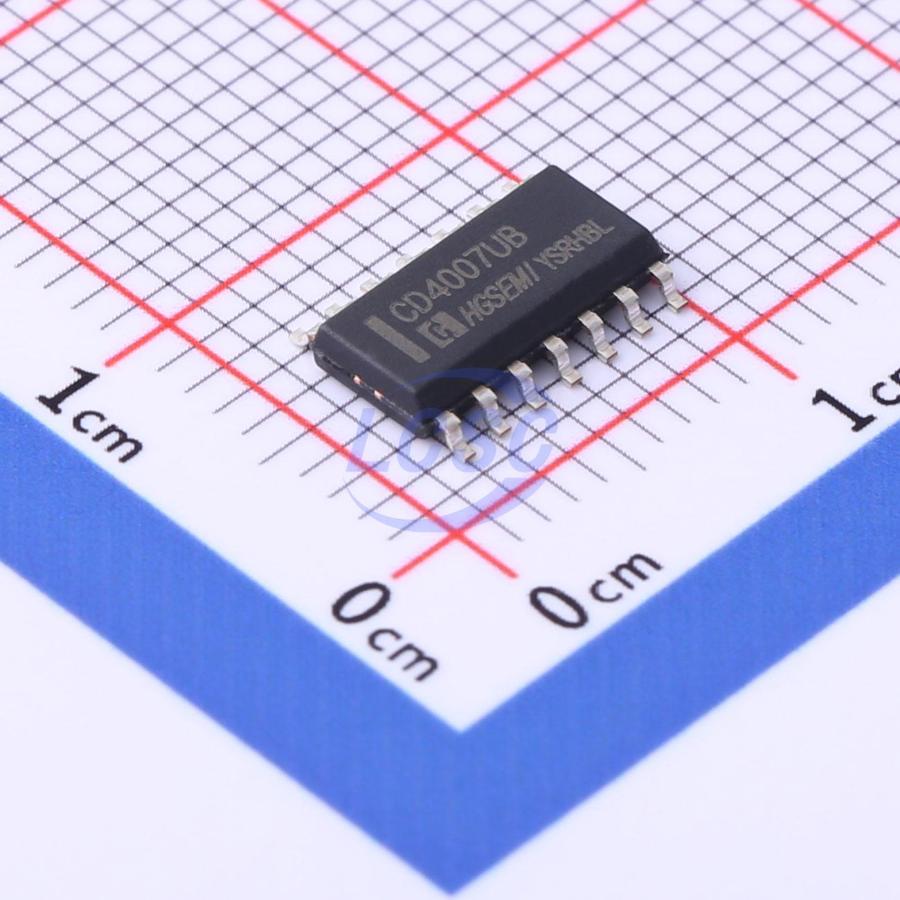

CD4007UBM/TR

StandardCMOS 3V~18V 50ns@15V,50pF 500nA 3 SOP-14 Gates and Inverters

SOP-14RoHSActive

CMos Dual Complementary Pair Plus Inverter

Manufacturer: HGSEMI
Manufacturer part #: CD4007UBM/TR
Store part #: C2688477
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,365 in stock

#C2688477

Stock & price checked 26 h ago

Quantity	Unit price	Pack price
5+	₹21.37	₹106.85
50+	₹16.99	₹849.50
150+	₹15.11	₹2,266.50
500+	₹12.77	₹6,385.00
2,500+	₹10.76	₹26,900.00
5,000+	₹10.13	₹50,650.00

Quantity (min 5, multiples of 5)

5 × ₹21.37

₹106.85

excl. GST

₹126.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD4007UBM/TR

₹106.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: StandardCMOS
Logic Family: 4000B
Voltage - Supply: 3V~18V
Propagation Delay: 50ns@15V,50pF
Output Logic Level - Low: 50mV
Input Logic Level - High: 4V;12.5V
Input Logic Level - Low: 1V;2.5V
Operating Temperature: -55℃~+125℃
Output Logic Level - High: 4.95V;9.95V;14.95V
Quiescent Current(Iq): 500nA
Number of Channels: 3
Current - Output High(IOH): 4.2mA
Current - Output Low(IOL): 4.2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.304 g

Overview

The CD4007UB type consists of three n-channel and three p-channel enhancement-mode MOS transistors. The transistor elements are accessible via package pins, providing a convenient means of constructing various typical circuits. More complex functions can be realized using multiple packages. The numbers shown in parentheses indicate the pins connected together to form the various configurations listed.

Applications

Ultra-high input impedance amplifier
Shaper
Inverter
Threshold detector
Linear amplifier
Crystal oscillator

Key features

High-voltage type (rated 15V)
Standardized symmetrical output characteristics
Medium-speed operation: tPHL, tPLH = 30 ns (typ) at 10V
100% testing of maximum quiescent current at 15V
Meets all requirements of JEDEC Tentative Standard No. 13B "Standard Specifications for Description of 'B' Series CMOS Devices"
Maximum input current of 1μA at 15V over full package temperature range; 100nA at 15V and +25°C
Package types: DIP-14, SOP-14, TSSOP-14
