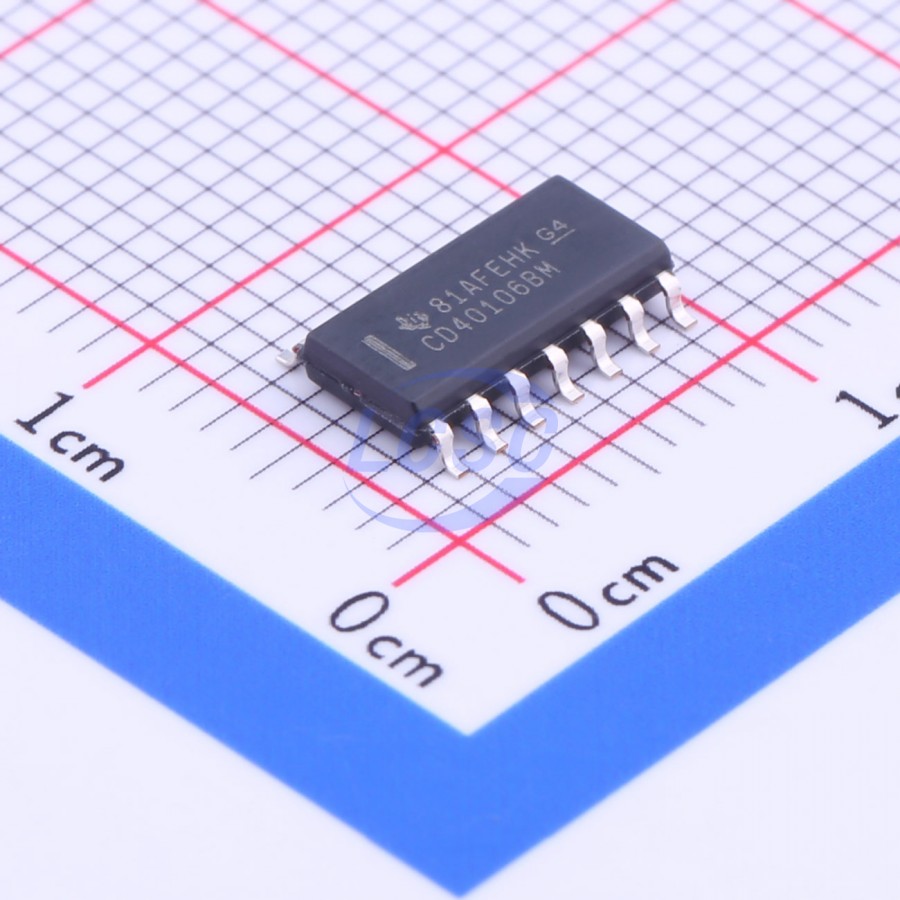

CD40106BM
Schmitt trigger 4uA 3V~18V 6 120ns@15V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex Schmitt-Trigger Inverters
- Manufacturer
- TI
- Manufacturer part #
- CD40106BM
- Store part #
- C28847
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,795 in stock
#C28847
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.58 | ₹65.58 |
| 10+ | ₹51.90 | ₹519.00 |
| 50+ | ₹43.22 | ₹2,161.00 |
| 100+ | ₹35.84 | ₹3,584.00 |
| 500+ | ₹32.57 | ₹16,285.00 |
| 1,000+ | ₹30.63 | ₹30,630.00 |
1 × ₹65.58
₹65.58
excl. GST
₹77.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
CD40106BM
₹65.58 for 1 + GST
Specifications
- Input Type
- Schmitt trigger
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - High
- 3.6V~10.8V
- Input Logic Level - Low
- 900mV~4V
- Logic Family
- 4000B
- Quiescent Current(Iq)
- 4uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 6
- Propagation Delay
- 120ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The CD40106B device consists of six Schmitt-Trigger inputs. Each circuit functions as an inverter with Schmitt-Trigger input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (V_P) and the negative-going voltages (V_N) is defined as hysteresis voltage (V_H). The CD40106B device is supplied in ceramic packaging (J) as well as standard packaging (D, N, NS, PW). All CD40106B devices are rated for -55℃ to +125℃ ambient temperature operation.
Applications
- Wave and Pulse Shapers
- High-Noise-Environment Systems
- Monostable Multivibrators
- Astable Multivibrators
Key features
- Schmitt-Trigger Inputs
- Hysteresis Voltage (Typical): 0.9 V at V_DD = 5 V, 2.3 V at V_DD = 10 V, 3.5 V at V_DD = 15 V
- Noise Immunity Greater Than 50%
- No Limit On Input Rise and Fall Times
- Standardized, Symmetrical Output Characteristics
- For Quiescent Current at 20 V
- Maximum Input Current Of 1 μA at 18 V Over Full Package Temperature Range; – 100 nA at 18 V and 25℃
- Low V_DD and V_SS Current During Slow Input Ramp
- 5-V, 10-V, and 15-V Parametric Ratings
