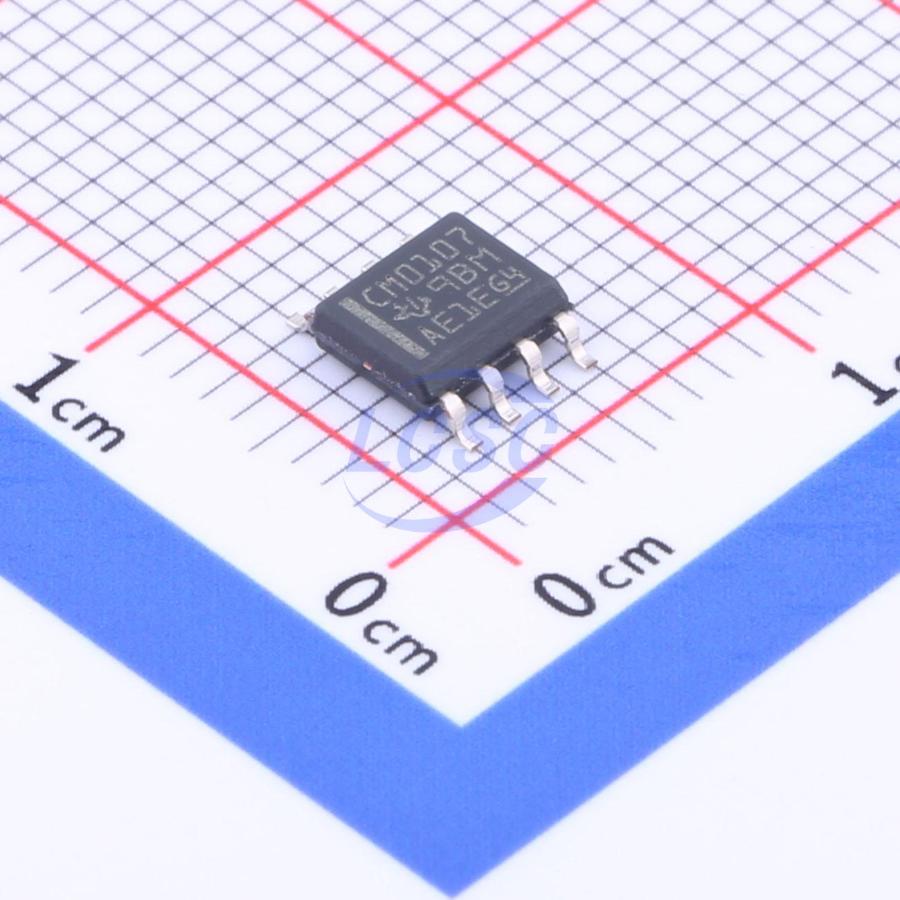

CD40107BM96
3V~18V 100ns@15V,50pF 4uA SOIC-8 Gates and Inverters RoHS
SOIC-8ROHS3 CompliantActive
CMOS Dual 2-Input NAND Buffer/Driver
- Manufacturer
- TI
- Manufacturer part #
- CD40107BM96
- Store part #
- C2691402
- Package / case
- SOIC-8
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,340 in stock
#C2691402
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.69 | ₹248.45 |
| 50+ | ₹40.40 | ₹2,020.00 |
| 150+ | ₹36.44 | ₹5,466.00 |
| 500+ | ₹31.46 | ₹15,730.00 |
| 2,500+ | ₹27.52 | ₹68,800.00 |
| 5,000+ | ₹26.20 | ₹1,31,000.00 |
5 × ₹49.69
₹248.45
excl. GST
₹293.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD40107BM96
₹248.45 for 5 + GST
Specifications
- output type
- Open-drain
- Logic Family
- 4000B Series
- Voltage - Supply
- 3V~18V
- Propagation Delay
- 100ns@15V,50pF
- Input Logic Level - High
- 3.5V~11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -55℃~+125℃
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 68mA
- Number of Channels
- 2;2
- Current - Output Low(IOL)
- 68mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.299 g
Overview
The CD40107B is a dual 2-input NAND buffer/driver containing two independent 2-input NAND buffers with open-drain single n-channel transistor outputs. This device features a wired-OR capability and high output sink current capability (136 mA typ. at VDD = 10 V, VDS = 1 V). The CD40107B is supplied in 8-lead hermetic dual-in-line ceramic packages (F3A suffix), 8-lead dual-in-line plastic packages (E suffix), 8-lead small-outline packages (M, M96, MT, and PSR suffixes), and 8-lead thin shrink small-outline packages (PW and PWR suffixes).
Applications
- Driving relays, lamps, LEDs
- Line driver
- Level shifter (up or down)
Key features
- 32 times standard B-Series output current drive sinking capability - 136 mA typ. @ VDD = 10 V, VDS = 1 V
- 700% tested for quiescent current at 20 V
- Maximum input current of 1 μA at 18 V over full package-temperature range; 100 nA at 18 V and 25℃
- 5-V, 10-V, and 15-V parametric ratings
- Noise margin, full package temperature range, RL to VDD = 10kΩ: 1 V at VDD = 5 V, 2 V at VDD = 10 V, 2.5 V at VDD = 15 V
