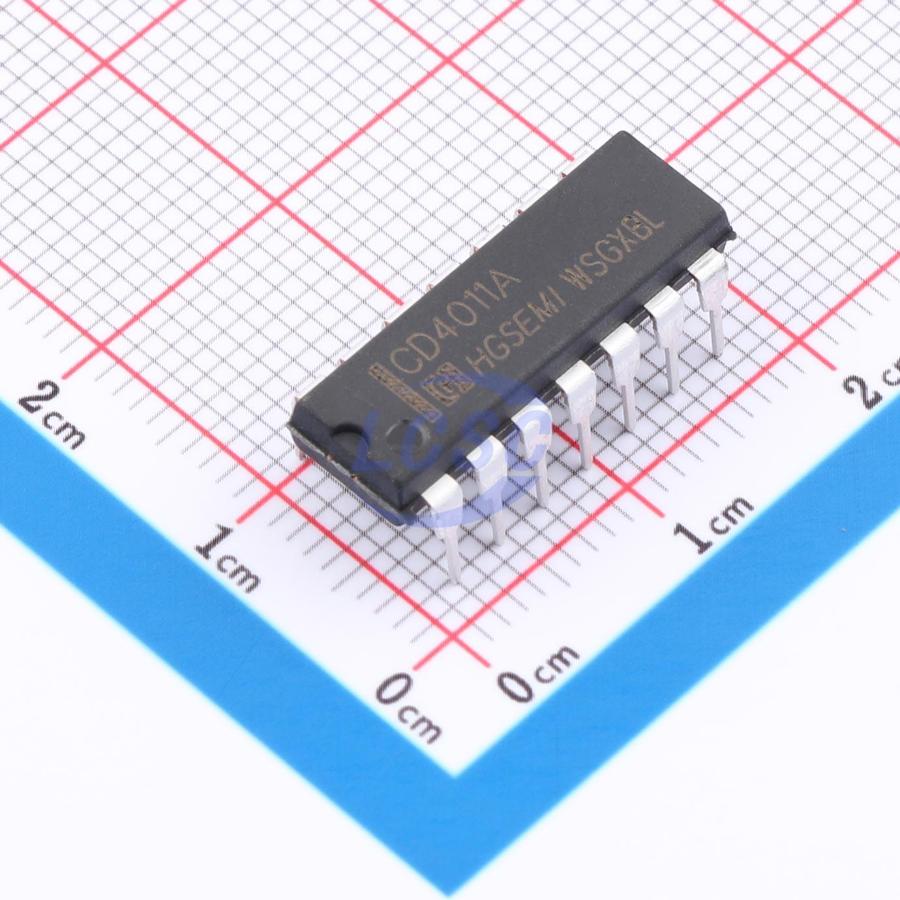

CD4011AN
NAND Gate IC 4 Channel DIP-14
DIP-14RoHSActive
Quad 2-input NAND gates
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4011AN
- Store part #
- C46635769
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,290 in stock
#C46635769
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.38 | ₹106.90 |
| 50+ | ₹16.79 | ₹839.50 |
| 150+ | ₹14.82 | ₹2,223.00 |
| 500+ | ₹12.37 | ₹6,185.00 |
| 2,000+ | ₹11.27 | ₹22,540.00 |
| 5,000+ | ₹10.61 | ₹53,050.00 |
5 × ₹21.38
₹106.90
excl. GST
₹126.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
CD4011AN
₹106.90 for 5 + GST
Specifications
- Input Type
- StandardCMOS;TTL-compatible CMOS
- Logic Family
- 4000 Series
- Voltage - Supply
- 3V~13V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 70ns@13V,50pF
- Input Logic Level - Low
- 1.5V;3V;3.5V
- Input Logic Level - High
- 3.5V~5V;7V~10V;10V~13V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;12.95V~13V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8.8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8.8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.89 g
Overview
The CD4011A consists of four dual-input NAND gates, fabricated using wide-voltage CMOS IC technology. It offers advantages including low power consumption, strong noise immunity, and flexible application. The device features symmetrical source and drain current drive capability, compliant with the CD4000 series output driver standard. The design incorporates output buffer stages to provide high gain for improved transfer characteristics and switching performance, and is insensitive to output impedance. All inputs are protected by diodes connected to VDD and VSS to prevent ESD damage. Unused inputs must be connected to VDD, VSS, or other inputs. The device is available in SOP-14, TSSOP-14, and DIP-14 packages.
Applications
- NAND logic gate circuit
- High-noise environment systems
- Pulse shapers
Key features
- Wide operating voltage range: 3~13V
- TTL logic level compatible
- Symmetrical output characteristics
- ESD protection on inputs and outputs
Alternatives
Similar parts — check the datasheet before substituting.
