HGSEMI

CD4013ALQ/TR

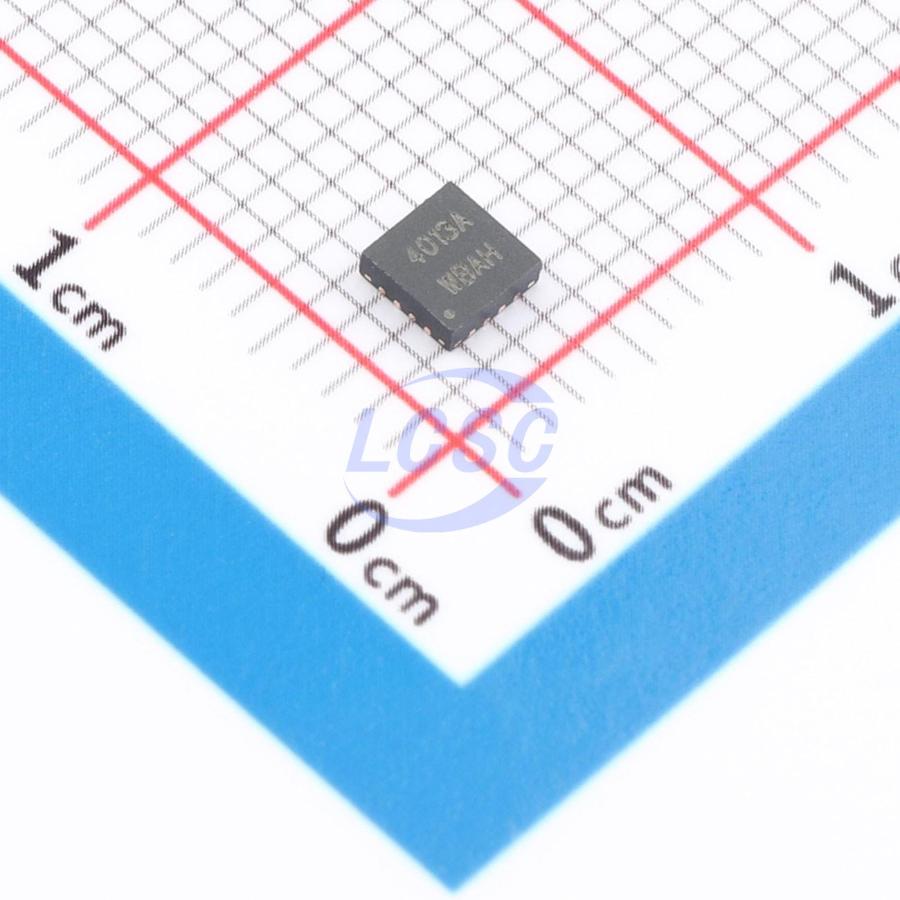

3V~15V 1 2 QFN-16(3x3) Flip Flops

QFN-16(3x3)RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: CD4013ALQ/TR
Store part #: C50345921
Package / case: QFN-16(3x3)
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,570 in stock

#C50345921

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
5+	₹12.48	₹62.40
50+	₹10.95	₹547.50
150+	₹10.20	₹1,530.00
500+	₹9.63	₹4,815.00
2,500+	₹9.17	₹22,925.00
5,000+	₹8.94	₹44,700.00

Quantity (min 5, multiples of 5)

5 × ₹12.48

₹62.40

excl. GST

₹73.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

CD4013ALQ/TR

₹62.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3V~15V
Number of Bits per Element: 1
Output Type: Complementary
Operating Temperature: -40℃~+85℃
Synchronous/Asynchronous: Asynchronous
Number of Elements: 2
Current - Output High(IOH): 1mA;2.6mA;6.8mA
Current - Output Low(IOL): 1mA;2.6mA;6.8mA
Quiescent Current: 1uA
Setup Time: 20ns;10ns;7ns
Hold Time: 2ns
Propagation Delay: 150ns@5V,50pF;65ns@10V,50pF;45ns@15V,50pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.112 g

Overview

The CD4013A contains two independent data-type flip-flops, each with separate data input, set, reset, clock input, and outputs (Q, Q̄). The device can be used as a shift register, and by connecting the Q̄ output to the data input, it can also be configured as a counter or toggle flip-flop. On the rising edge of the clock pulse, the logic level at the data input is transferred to the Q output. The set and reset states are independent of the clock and are controlled by a high level on the set or reset pin, respectively. The device is available in SOP-14, TSSOP-14, DIP-14, QSOP-16, and QFN-16 packages.
