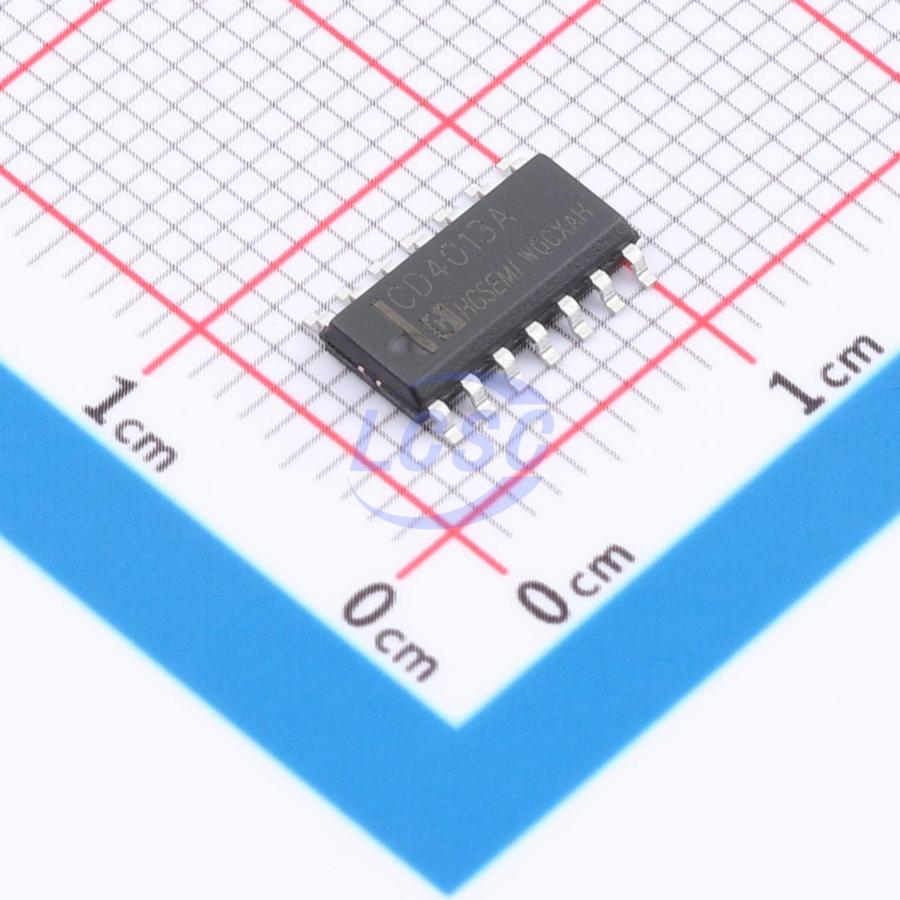

HGSEMI

CD4013AM/TR

3V~15V 1 2 SOP-14 Flip Flops

SOP-14RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: CD4013AM/TR
Store part #: C46635770
Package / case: SOP-14
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,350 in stock

#C46635770

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.80	₹79.00
50+	₹12.67	₹633.50
150+	₹11.10	₹1,665.00
500+	₹9.94	₹4,970.00
2,500+	₹9.00	₹22,500.00
5,000+	₹8.52	₹42,600.00

Quantity (min 5, multiples of 5)

5 × ₹15.80

₹79.00

excl. GST

₹93.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD4013AM/TR

₹79.00 for 5 + GST

Specifications

Voltage - Supply: 3V~15V
Number of Bits per Element: 1
Output Type: Complementary
Operating Temperature: -40℃~+85℃
Series: CD40
Synchronous/Asynchronous: Asynchronous
Number of Elements: 2
Current - Output High(IOH): 1mA;2.6mA;6.8mA
Current - Output Low(IOL): 1mA;2.6mA;6.8mA
Setup Time: 20ns;10ns;7ns
Quiescent Current: 250nA;500nA;1uA
Hold Time: 2ns
Propagation Delay: 150ns@5V;65ns@10V;45ns@15V
Trigger Type: Rising Edge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.293 g

Overview

This device contains two identical but independent D-type flip-flops, each with separate data input, set, reset, clock input, and outputs (Q and Q̅). It can be used as a shift register by connecting the Q̅ output to the data input, and also as a counter and toggle flip-flop. On the rising edge of the clock pulse, the logic level at the data input is transferred to the Q output. The set and reset states are independent of the clock, controlled by a high level on the set or reset pin respectively. The device is available in SOP-14, TSSOP-14, DIP-14, and QFN-16 packages.
