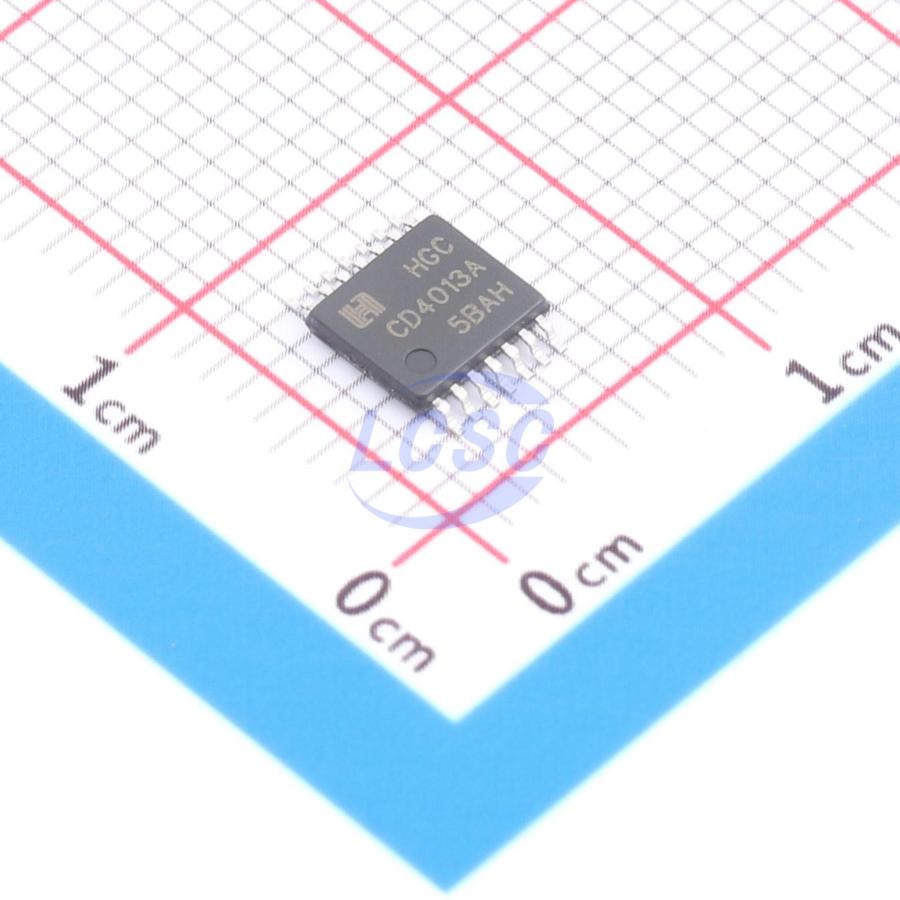

HANSCHIP semiconductor

CD4013APWRG

3V~15V 1 2 TSSOP-14 Flip Flops RoHS

TSSOP-14ROHS CompliantActive

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: CD4013APWRG
Store part #: C49318175
Package / case: TSSOP-14
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,700 in stock

#C49318175

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹13.16	₹65.80
50+	₹10.35	₹517.50
150+	₹8.94	₹1,341.00
500+	₹7.89	₹3,945.00
2,500+	₹7.05	₹17,625.00
5,000+	₹6.63	₹33,150.00

Quantity (min 5, multiples of 5)

5 × ₹13.16

₹65.80

excl. GST

₹77.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD4013APWRG

₹65.80 for 5 + GST

Specifications

Voltage - Supply: 3V~15V
Number of Bits per Element: 1
Output Type: Complementary
Operating Temperature: -40℃~+85℃
Synchronous/Asynchronous: Asynchronous
Current - Output High(IOH): 6.8mA
Number of Elements: 2
Current - Output Low(IOL): 6.8mA
Quiescent Current: 1uA
Setup Time: 20ns;10ns;7ns
Hold Time: 2ns
Propagation Delay: 150ns@5V,50pF;65ns@10V,50pF;45ns@15V,50pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.23 g

Overview

This device contains two identical but independent data-type flip-flops, each with separate data input, set, reset, clock input, and outputs Q and Q̄. It can be used as a shift register, or as a counter and toggle flip-flop by connecting the Q̄ output to the data input. On the rising edge of the clock pulse, the logic level at the data input is transferred to the Q output. The set and reset functions are independent of the clock state and are controlled by a high level on the set or reset pin, respectively.
