lingxingic

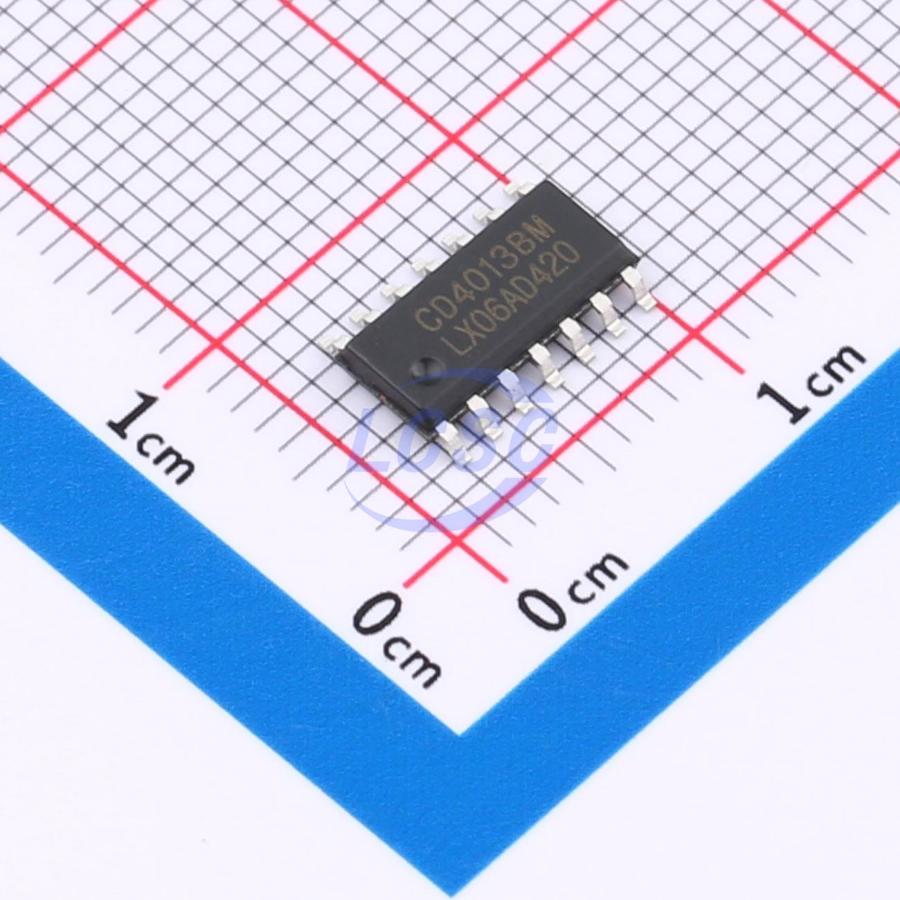

CD4013BM(LX)

3V~15V 1 2 SOP-14 Flip Flops

SOP-14RoHSActive

Dual D-type Flip-Flop

Manufacturer: lingxingic
Manufacturer part #: CD4013BM(LX)
Store part #: C32710666
Package / case: SOP-14
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,525 in stock

#C32710666

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹13.92	₹69.60
50+	₹11.03	₹551.50
150+	₹9.59	₹1,438.50
500+	₹8.51	₹4,255.00
2,500+	₹7.46	₹18,650.00
4,000+	₹7.04	₹28,160.00

Quantity (min 5, multiples of 5)

5 × ₹13.92

₹69.60

excl. GST

₹82.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

CD4013BM(LX)

₹69.60 for 5 + GST

Specifications

Voltage - Supply: 3V~15V
Number of Bits per Element: 1
Output Type: Complementary
Operating Temperature: -40℃~+85℃
Series: 4000 Series
Synchronous/Asynchronous: Asynchronous
Current - Output High(IOH): 1mA;2.6mA;6.8mA
Number of Elements: 2
Current - Output Low(IOL): 1mA;2.6mA;6.8mA
Setup Time: 20ns;10ns;7ns
Quiescent Current: 4uA
Hold Time: 2ns
Propagation Delay: 150ns@5V,50pF;65ns@10V,50pF;45ns@15V,50pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.225 g

Overview

The CD4013 is a dual D-type flip-flop that features independent set-direct input (SD), clear-direct input (CD), clock input (CP) and outputs (Q,Q(overline)). Data is accepted when CP is LOW and is transferred to the output on the positive-going edge of the clock. The active HIGH asynchronous CD and SD inputs are independent and override the D- or CP inputs. The outputs are buffered for best system performance. The clock input's Schmitt-trigger action makes the circuit highly tolerant of slower clock rise and fall times. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
