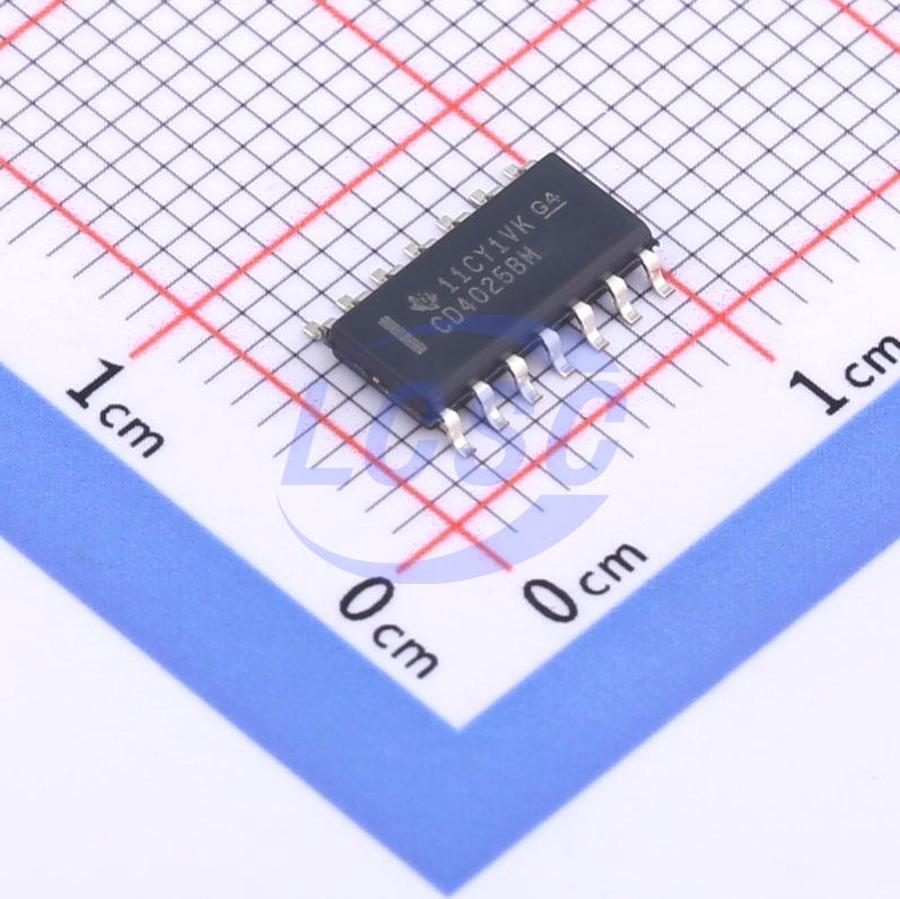

CD4025BM96

CD4001B, CD4002B, and CD4025B NOR gates provide the system designer with direct implementation of the NOR function and supplement the existing family of CMOS gates. All inputs and outputs are buffered. The CD4001B, CD4002B, and CD4025B types are supplied in 14 - lead hermetic dual - in - line ceramic packages (F3A suffix), 14 - lead dual - in - line plastic packages (E suffix), 14 - lead small - outline packages (M, MT, M96, and NSR suffixes), and 14 - lead thin shrink small - outline packages (PW and PWR suffixes).

Applications

• NOR logic function implementation in digital logic circuit systems

Key features

• Propagation delay time = 60 ns (typ.) at cL = 50 pF, VDD = 90 V
• Buffered inputs and outputs
• Standardized symmetrical output characteristics 700% tested for maximum quiescent current at 20 V
• 5 - V, 10 - V, and 15 - V parametric ratings
• Maximum input current of 1 μA at 18 V over full package - temperature range; 100 nA at VDD and 25°C
• Noise margin (over full package temperature range):
• 1 V at VDD = 5 V
• 2 V at VDD = 10 V
• 2.5 V at VDD = 15 V
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
