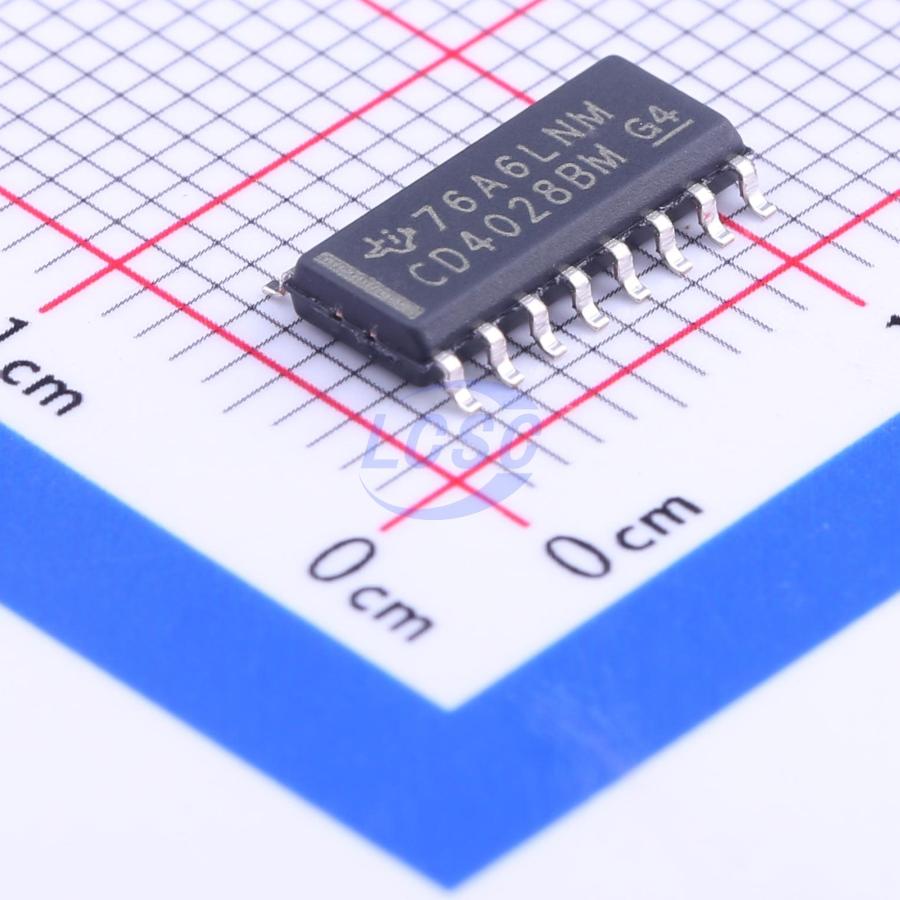

CD4028BM96

4/10 3V~18V 100uA 60ns@15V,50pF Level shifting SOIC-16 Signal Switches, Multiplexers, Decoders RoHS

SOIC-16ROHS CompliantActive

BCD-to-Decimal Decoder

Manufacturer: TI
Manufacturer part #: CD4028BM96
Store part #: C131484
Package / case: SOIC-16
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,175 in stock

#C131484

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹105.50	₹105.50
10+	₹89.62	₹896.20
30+	₹81.56	₹2,446.80
100+	₹73.52	₹7,352.00
500+	₹68.73	₹34,365.00
1,000+	₹61.35	₹61,350.00

Quantity (min 1)

1 × ₹105.50

₹105.50

excl. GST

₹124.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD4028BM96

₹105.50 for 1 + GST

Specifications

Type: Decoder
Series: CD4000
Number of Channels: 4/10
Voltage - Supply: 3V~18V
Operating Temperature: -55℃~+125℃
Quiescent Current: 100uA
Current - Output High(IOH): 6.8mA
Propagation Delay: 60ns@15V,50pF
Function: Level shifting
Current - Output Low(IOL): 6.8mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.252 g

Overview

CD4028B types are BCD- to- decimal or binary- to- octal decoders consisting of buffering on all 4 inputs, decoding- logic gates, and 10 output buffers. A BCD code applied to the four inputs, A to D, results in a high level at the selected one of 10 decimal decoded outputs. Similarly, a 3- bit binary code applied to inputs A through C is decoded in octal code at output 0 to 7 if D = O". High drive capability is provided at all outputs to enhance dc and dynamic performance in high fan- out applications.

Applications

Code conversion
Indicator-tube decoder
Address decoding
Memory selection control

Key features

BCD-to-decimal decoding or binary-to-octal decoding
High decoded output drive capability
"Positive logic" inputs and outputs
tPHL, tPLH < 30 ns typ. @ VDD = 10 V
Standardized, symmetrical output characteristics
100% tested for quiescent current at 20V
Maximum input current of 1 μA at 18V over full package-temperature range, 100 mA at 18V
Noise margin (over full package-temperature range): 1V @ VDD = 5V, 2V @ VDD = 10V, 2.5V @ VDD = 15V
5-V, 10-V, and 15-V parametric ratings
Meets all requirements of JEDEC Tentative Standard No.13B, Standard Specifications for Description of B Series CMOS Devices
