lingxingicDatasheet (PDF)

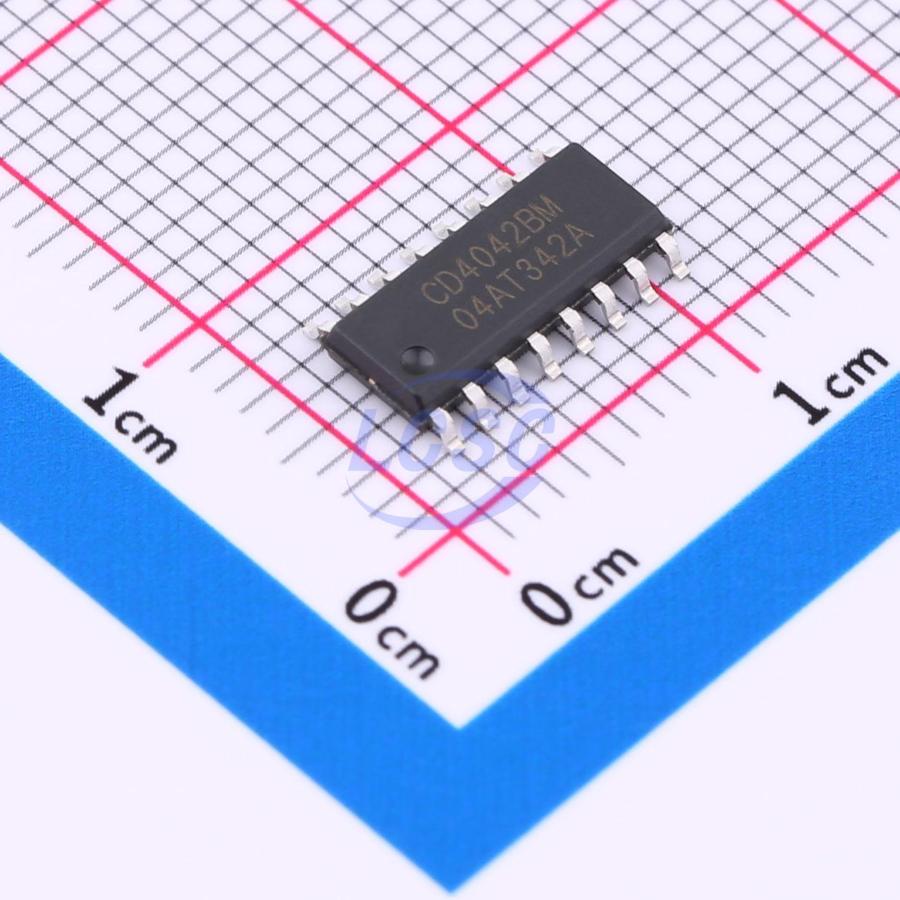

CD4042BM(LX)
D Latch 3V~15V 4 80ns SOP-16 Latches
SOP-16RoHSActive
Quad Clocked D Latch
- Manufacturer
- lingxingic
- Manufacturer part #
- CD4042BM(LX)
- Store part #
- C22390249
- Package / case
- SOP-16
- Category
- Latches
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,820 in stock
#C22390249
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.98 | ₹189.90 |
| 50+ | ₹29.82 | ₹1,491.00 |
| 150+ | ₹26.33 | ₹3,949.50 |
| 500+ | ₹21.96 | ₹10,980.00 |
| 2,500+ | ₹20.03 | ₹50,075.00 |
| 4,000+ | ₹18.87 | ₹75,480.00 |
5 × ₹37.98
₹189.90
excl. GST
₹224.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4042BM(LX)
₹189.90 for 5 + GST
Specifications
- Quiescent Current
- 30uA
- Logic Type
- D Latch
- Series
- 4000 Series
- Voltage - Supply
- 3V~15V
- Operating Temperature
- -40℃~+125℃
- Output Type
- Differential
- Current - Output Low(IOL)
- 1.4mA
- Setup Time
- 0ns
- Number of Gates
- 4
- Current - Output High(IOH)
- 1.65mA
- Hold Time
- 60ns
- Propagation Delay
- 80ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.247 g
Overview
The CD4042 is a quad clocked “D” latch. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Supply voltage range: 3V to 15V
- Temperature range: -40°C to +125°C
- Packaging information: DIP16/SOP16/SSOP16/TSSOP16
