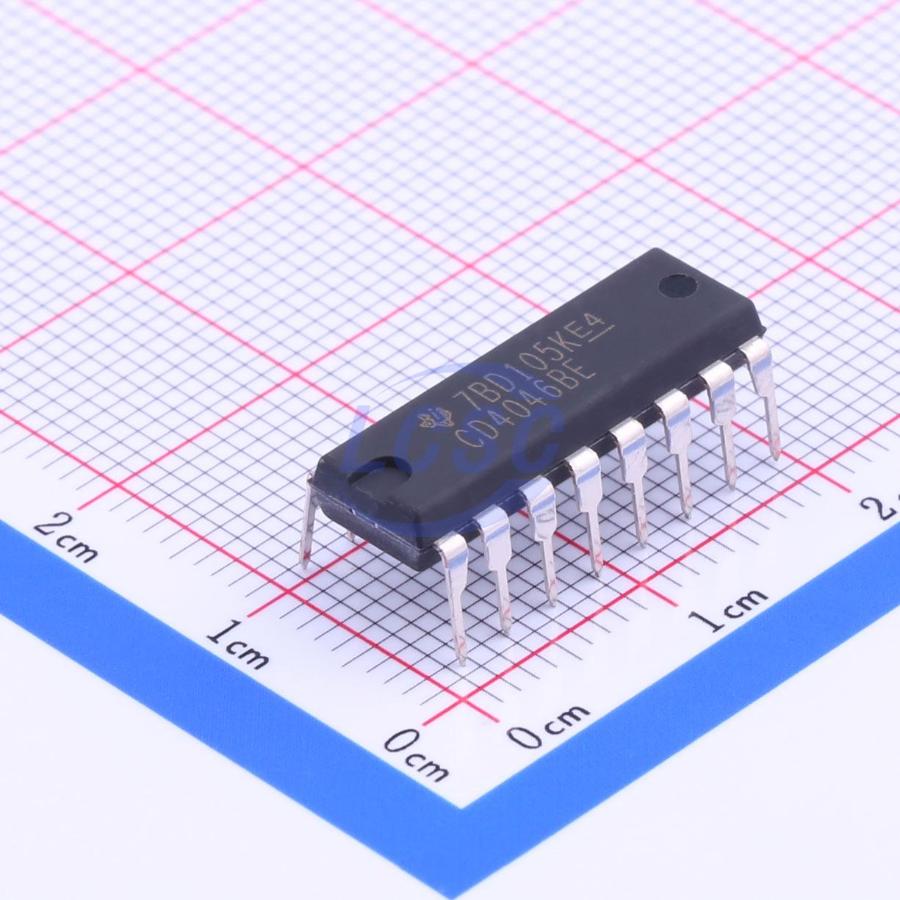

CMOS Micropower Phase-Locked Loop
- Manufacturer
- TI
- Manufacturer part #
- CD4046BE
- Store part #
- C73219
- Package / case
- PDIP-16
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,031 in stock
#C73219
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.45 | ₹114.45 |
| 10+ | ₹93.14 | ₹931.40 |
| 25+ | ₹77.69 | ₹1,942.25 |
| 100+ | ₹67.02 | ₹6,702.00 |
| 500+ | ₹60.71 | ₹30,355.00 |
| 1,000+ | ₹57.44 | ₹57,440.00 |
1 × ₹114.45
₹114.45
excl. GST
₹135.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
CD4046BE
₹114.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+125℃
- Clock/Oscillator
- External
- Output Frequency(Max)
- 2.4MHz
- Voltage - Supply
- 3V~18V
- Period Jitter, Peak-to-Peak
- -;-
- Phase Offset
- Not supported
- Input
- CMOS
- Output Level
- CMOS
- Number of Outputs
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.76 g
Overview
CD4046B CM0S Micropower Phase-Locked Loop (PLL) consists of a low. power, linear voltage-controlled oscillator (VCO) and two different phase comparators having a common signal-input amplifier and a common comparator input. A 5.2-V zener diode is provided for supply regulation if necessary. The CD4046B types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (NSR suffix), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).
Applications
- FM demodulator and modulator
- Frequency synthesis and multiplication
- Frequency discriminator
- Data synchronization
- Voltage-to-frequency conversion
- Tone decoding
- FSK - Modems
- Signal conditioning
Key features
- Very low power consumption: 70 μW (typ.) at vco t₀ = 10 kHz, VDD = 5V
- Operating frequency range up to 1.4 MHz (typ.) at VDD = 10V, R1 = 5 kΩ
- Low frequency drift: 0.04%/°C (typ.) at VDD = 10V
- Choice of two phase comparators: Exclusive-OR network (I), Edge-controlled memory network with phase-pulse output for lock indication (II)
- High VCO linearity: < 1% (typ.) at VDD = 10V
- VCO inhibit control for ON-OFF keying and ultra-low standby power consumption
- Source-follower output of VCO control input (Demod. output)
- Zener diode to assist supply regulation
- Standardized, symmetrical output characteristics
- 100% tested for quiescent current at 20 V
- 5-V, 10-V, and 15-V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
